LB9 User’s Guide 1207/1523
11.3.25 Managing MLAG

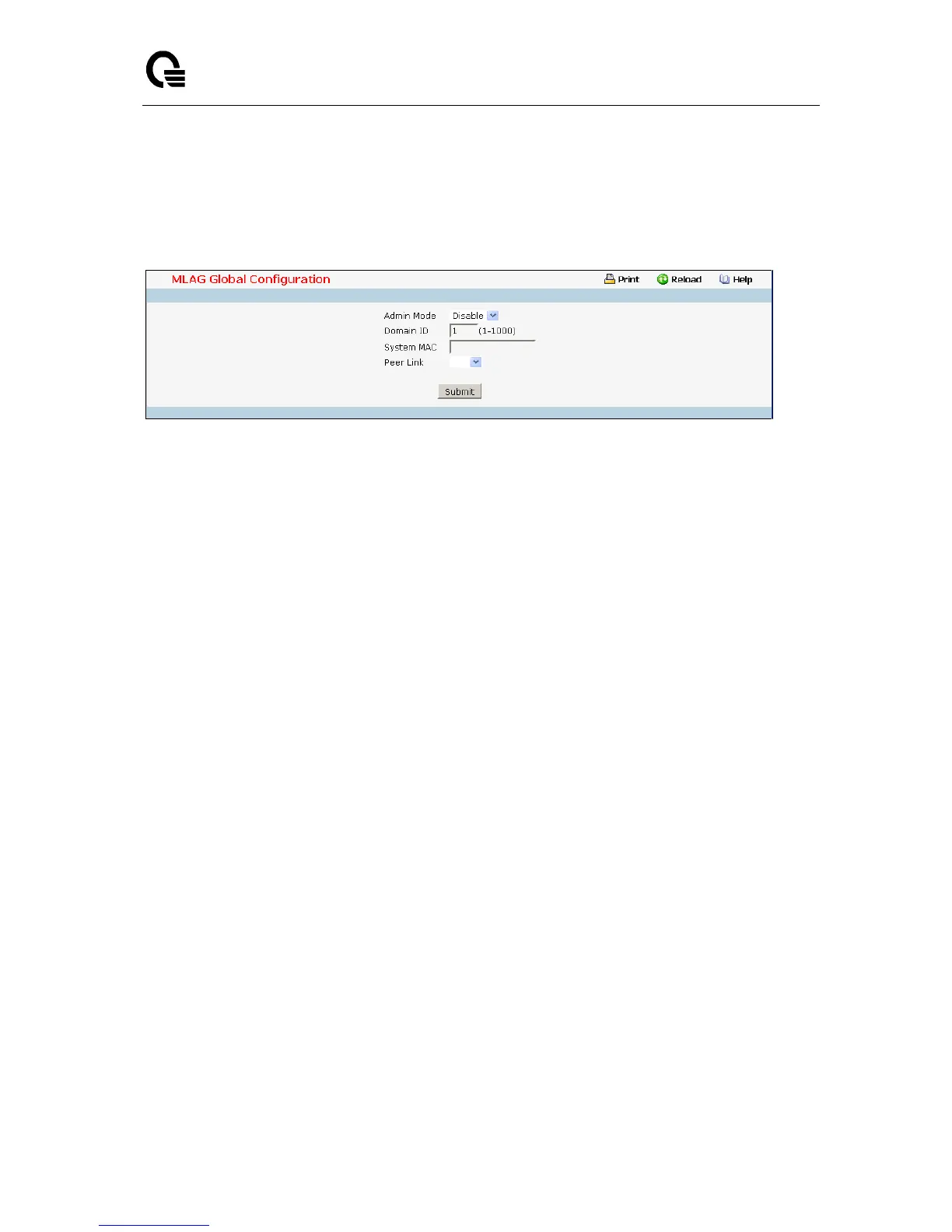

11.3.25.1 Configuring MLAG Global
Selection Criteria
Admin Mode - To enable a Multi-chassis Link Aggregation (MLAG), which allows links that are
physically connected to two different devices to appear as a single port channel to a third device..
Peer Link - To create a Multi-chassis Link Aggregation (MLAG) peer link by designating the port
channel that you want on each device as the peer link for the specified MLAG domain.
Configurable Data
Domain ID - To enable a Multi-chassis Link Aggregation (MLAG), which allows links that are
physically connected to two different devices to appear as a single port channel to a third device.
System MAC -To enable a Multi-chassis Link Aggregation (MLAG), which allows links that are
physically connected to two different devices to appear as a single port channel to a third device..
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
