LB9 User’s Guide 1162/1523
11.3.18 Managing IGMP Snooping

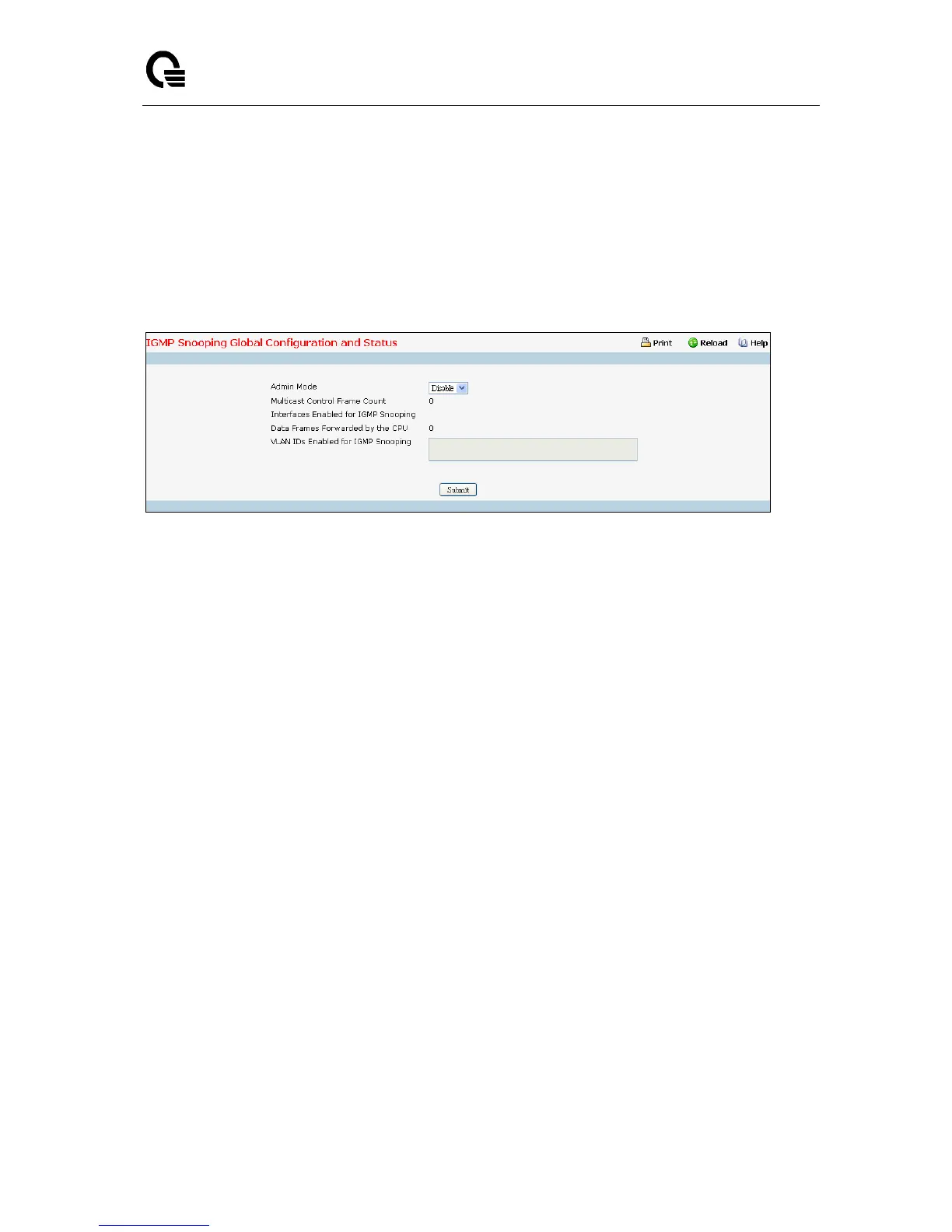

11.3.18.1 Configuring IGMP Snooping Global Configuration Page
Use this menu to configure the parameters for IGMP Snooping, which is used to build forwarding lists for
multicast traffic. Note that only a user with Read/Write access privileges may change the data on this
screen.
Selection Criteria
Admin Mode - Select the administrative mode for IGMP Snooping for the switch from the pulldown
menu. The default is disable.
Non-Configurable Data
Multicast Control Frame Count - The number of multicast control frames that are processed by the
CPU.
Interfaces Enabled for IGMP Snooping - A list of all the interfaces currently enabled for IGMP
Snooping.
Data Frames Forwarded by the CPU - The number of data frames forwarded by the CPU.
VLAN Ids Enabled For IGMP Snooping - Displays VLAN Ids enabled for IGMP snooping.
Command Buttons
Submit - Update the switch with the values you entered. If you want the switch to retain the new
values across a power cycle you must perform a save. You will only see this button if you have
Read/Write access privileges.
