11.3.26 Managing Link State

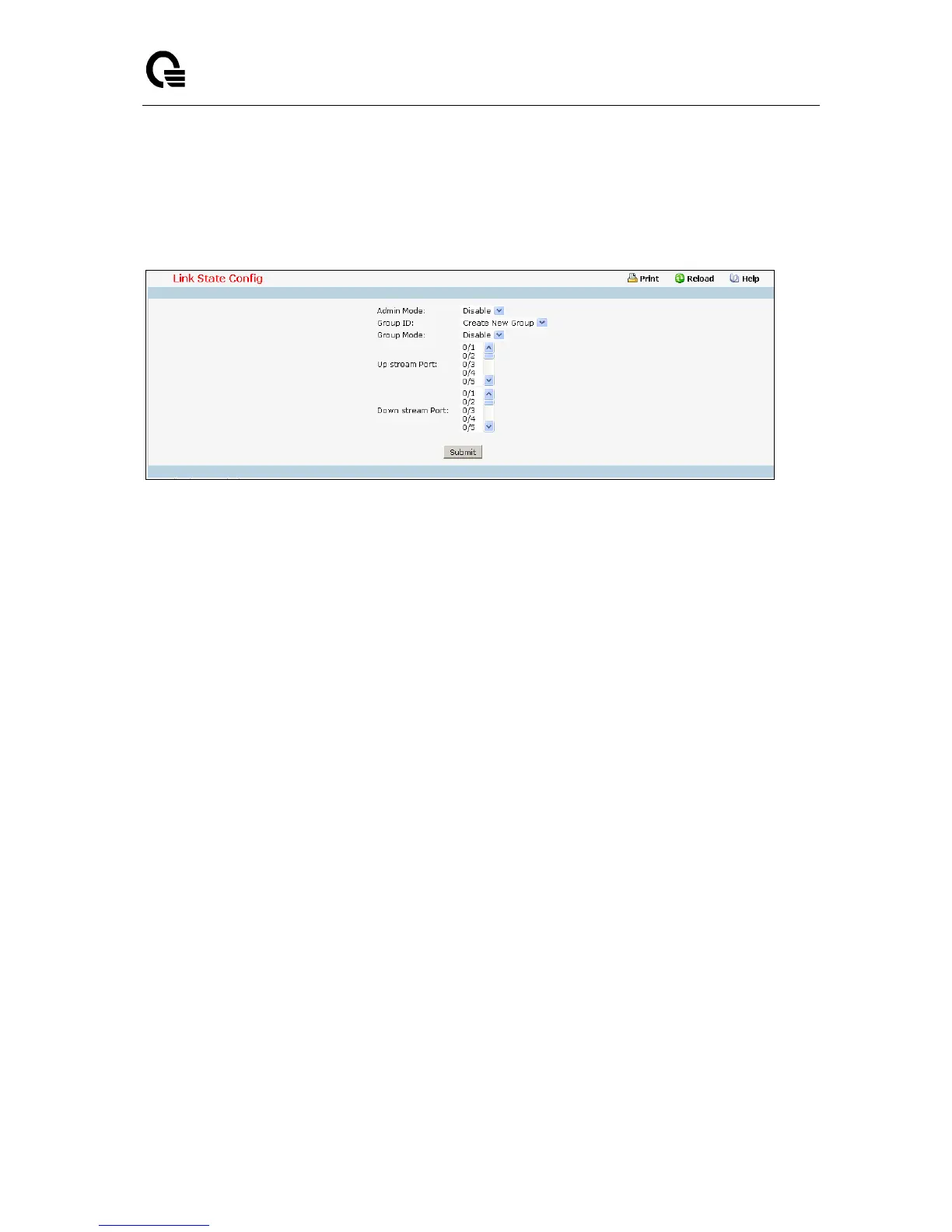

11.3.26.1 Configuring Link State Configuration Page
Selection Criteria
Group ID – You can use this screen to reconfigure an existing group or to create a new one. Use this
pull-down menu to select one of the existing groups or select 'Create' to add a new one.
Upstream - Choose the upstream port for a group. Switch will monitor the link level of this port for
rapidly fail-over of redundant LAN ports.
Downstream - Choose downstream ports for a group. Switch will associate these downstream ports
with upstream port. If the upstream port is link down, all downstream ports will be disabled.
Otherwise, they will be enabled.
Configurable Data
Admin Mode - Choose the link state administrative mode for the switch by selecting enable or
disable from the pull-down menu. The factory default is disabled.
Group Mode - Choose the group administrative mode for the switch by selecting enable or disable
from the pull-down menu. The factory default is disabled.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
Delete - Delete this group.
