LB9 User’s Guide 1214/1523
11.3.27 Managing Port-Backup

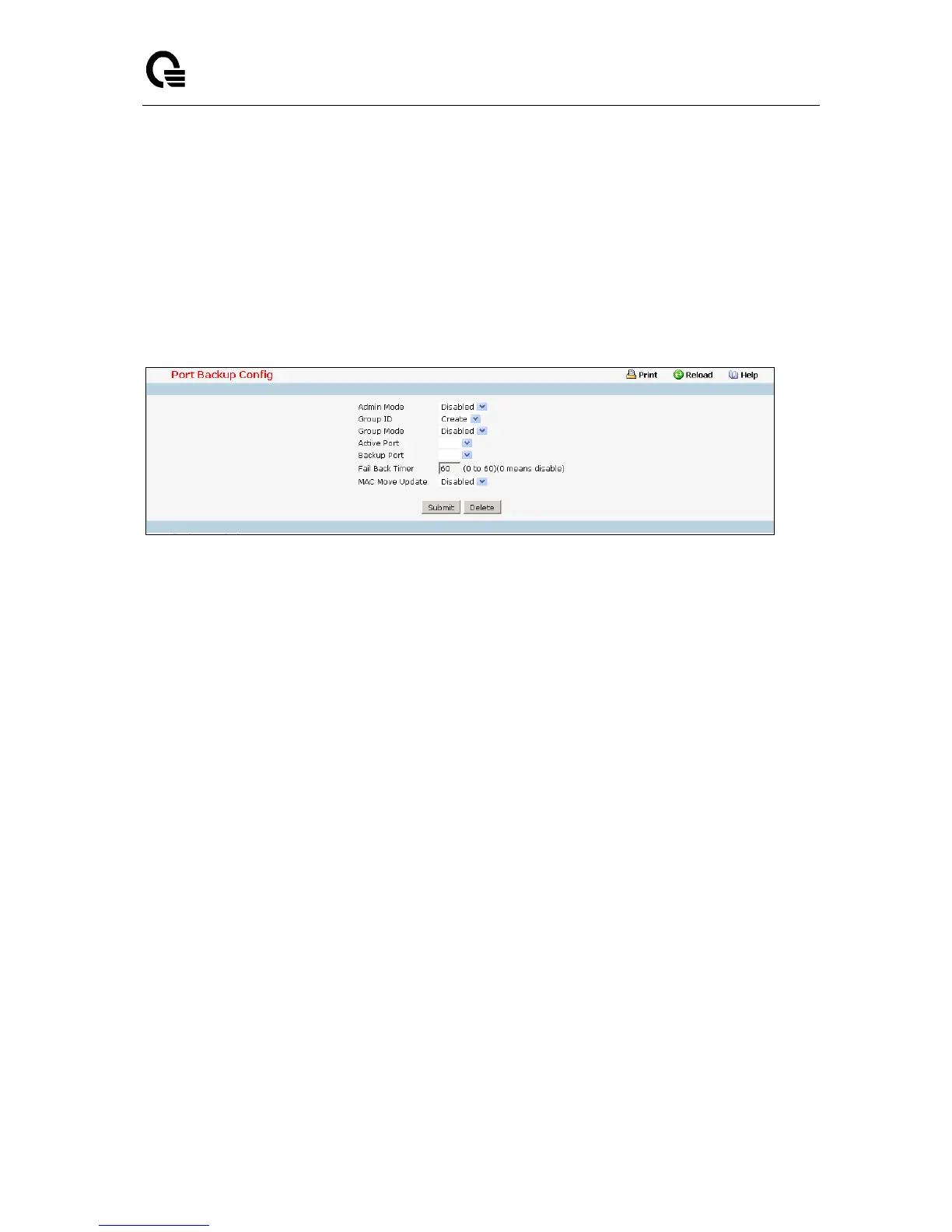

11.3.27.1 Configuring Port-Backup Configuration
Two ports are associated for one group. Two ports are acted as active and backup ports. One of two
ports will be active at a one time. As configured active port is linkup, the backup port will be disabled.
Otherwise, if configured active port is link down, the configured backup port will be enabled. The
configured active has higher priority to become 'active', as two ports of a group are all link up before
group is enabled.
Selection Criteria
Group ID - You can use this screen to reconfigure an existing group or to create a new one. Use this
pull-down menu to select one of the existing groups or select 'Create' to add a new one.
Configurable Data
Admin Mode - Choose the port-backup administrative mode for the switch by selecting enable or
disable from the pull-down menu. The factory default is disabled.
Group Mode - Choose the group administrative mode for the switch by selecting enable or disable
from the pull-down menu. The factory default is disabled. You could enable this group as active port
and backup port are configured.
Active port - Configure the active port for a group. 6 port pairs for six 1Gbps are configurable for
active port.
Backup port - Choose the backup port for a group. 6 port pairs for six 1Gbps are configurable for
backup port.
Fail Back Timer - Configure the time delay for activating the active port.
MAC Move Update - Choose the MAC Move Update mode for the switch by selecting enable or
disable from the pull-down menu.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
Delete - Delete this group.
