LB9 User’s Guide 1215/1523

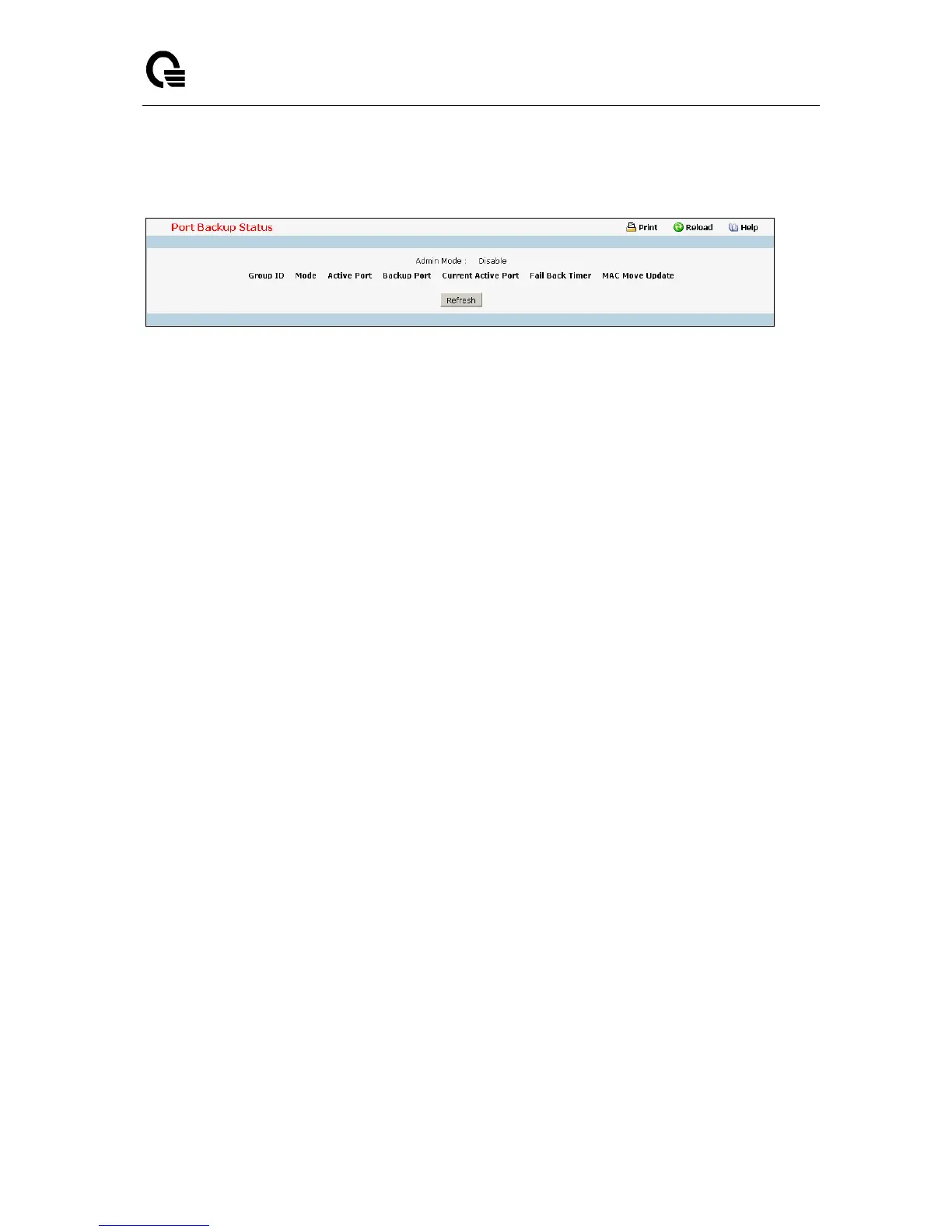

11.3.27.2 Configuring Port-Backup Status
This page displays the status of all currently configured port-backup.
Non-Configurable Data
Admin Mode - The administrative mode of the port-backup function.
Group ID - The group identify of the port-backup. The range of the group ID is 1~6.
Mode - The administrative mode of this group.
Active port - The configured active port for this group.
Backup port - The configured backup port for this group.
Current Active port - Current active port for this group.
Failback Time - The Failback Time value for the group.
MAC Move Update - The MAC Move Update mode for the group.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
