LB9 User’s Guide 1446/1523

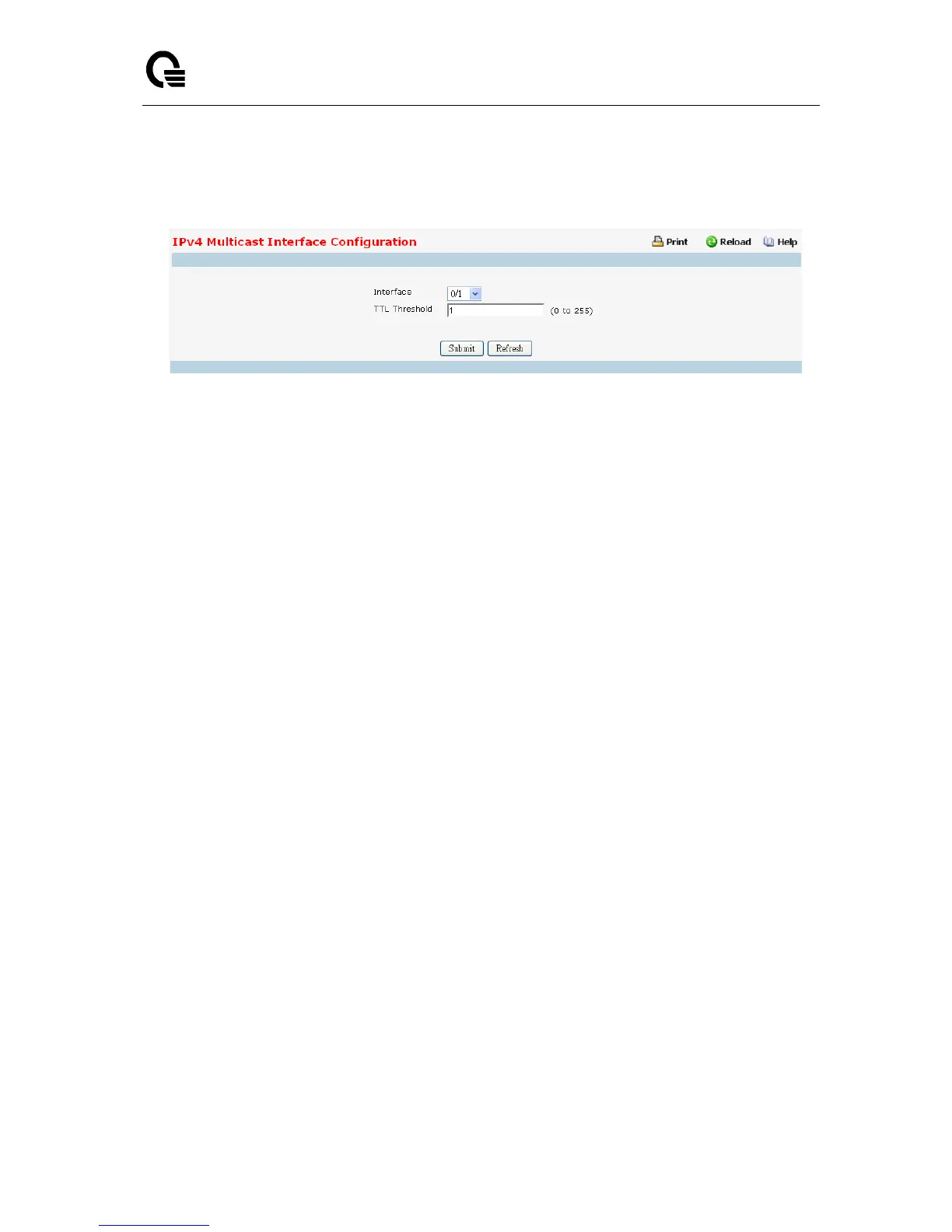

11.8.2 Configuring IPv4 Multicast Interface
Selection Criteria
Interface - Select the routing interface you want to configure from the dropdown menu.
Configurable Data
TTL Threshold - Enter the TTL threshold below which a multicast data packet will not be forwarded
from the selected interface. You should enter a number between 0 and 255. If you enter 0 all
multicast packets for the selected interface will be forwarded.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
