UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1504/1523
11.10 Data Center
11.10.1 Managing Congestion Notification

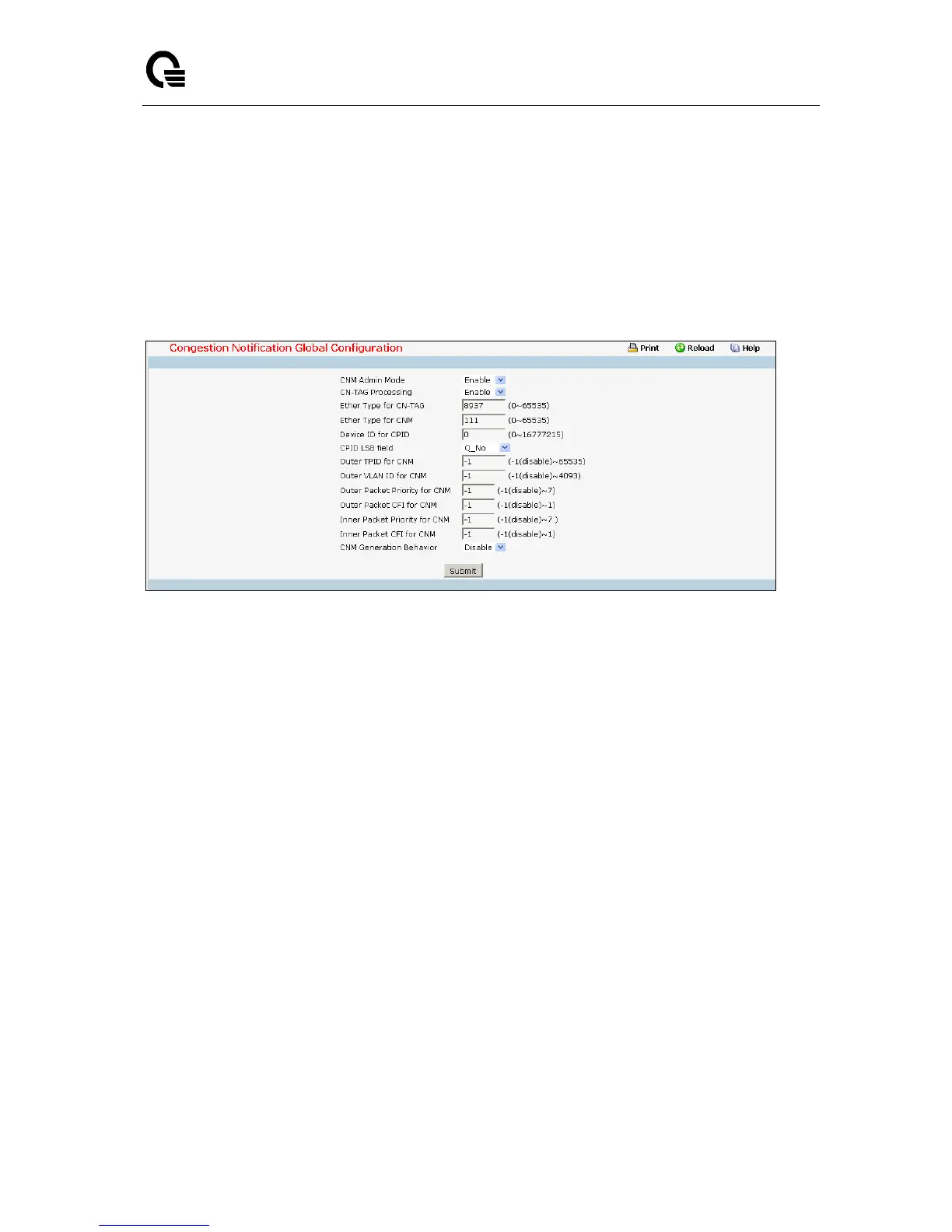

11.10.1.1 Configuring Congestion Notification (CN)) Global configuration
Configurable Data
CNM Admin Mode - Enable/Disable congestion notification message(CNM) handling.
 Enable - to enable handling congestion notification message.
 Disable - to disable handling congestion notification message.
The system's default CNM handling is Enabled.
CN-TAG Processing - Enable/Disable CN-TAG processing.
 Enable - configure the CNTAG Ether Type is recognized by parsing stages.
 Disable - configure CNTAG Ether Type is unrecognized.
CN-Tag Ether Type can be recognized by default.
CPID LSB Field - Control the LSB field of Congestion Point Identifier of CNM payload.
 CPIndex - Configure device identifier to use congestion point index.
 Q_No - Set the CPID mode to use queue number of sampled packet.
The system's default LSB field of CPID is using queue number of sampled packet.
CNM Generation Behavior - Set Congestion Notification Message Generation Behavior. Choose
the CNM generation behavior when congestion notification threshold is reached but the incoming
sampled packet does not have CN-TAG.
 Enable - Keep generate CNM.
 Disable - Not generate CNM
The system¡¦s default behavior of CNM generation is not generate.
