LB9 User’s Guide 1037/1523
11.2.7 Viewing Statistics

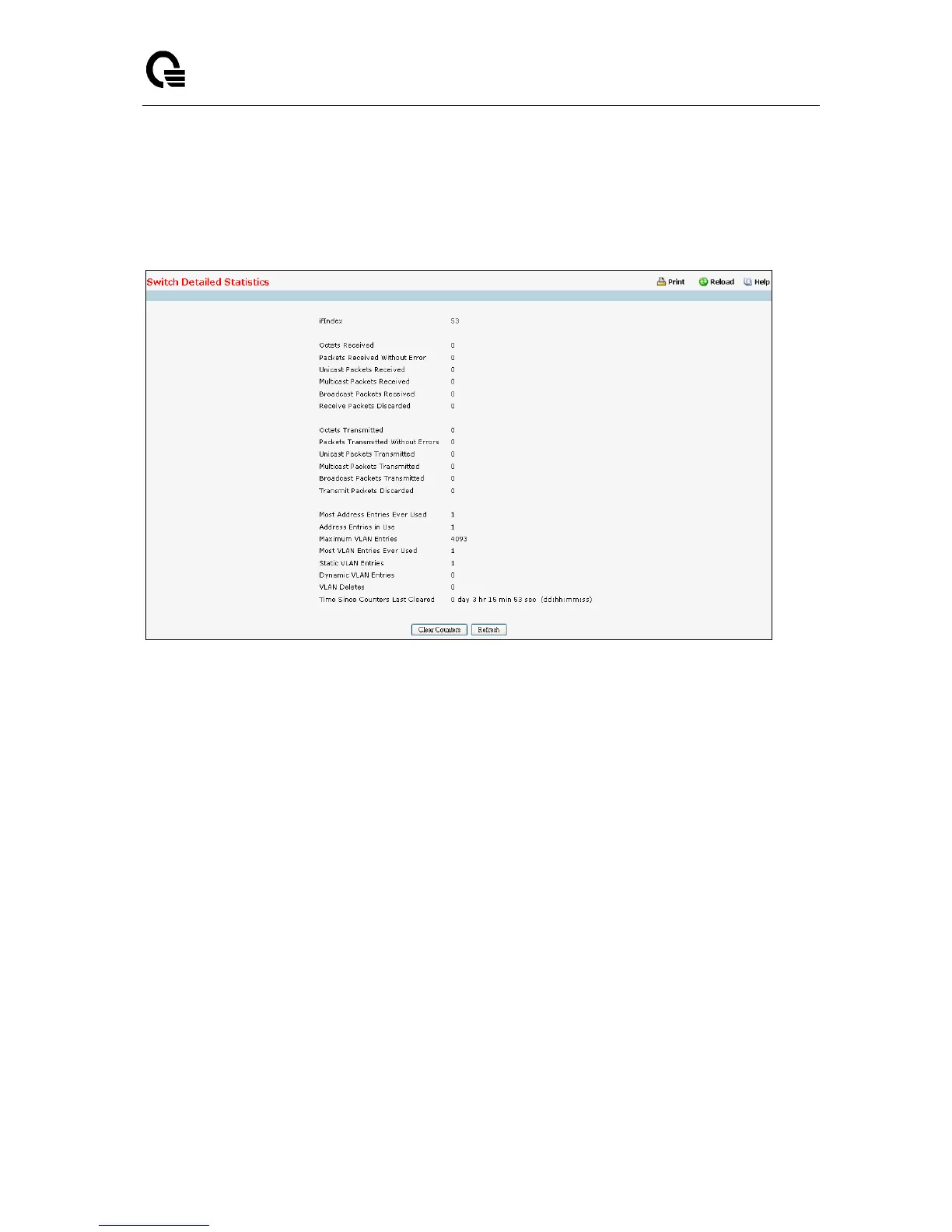

11.2.7.1 Viewing the whole Switch Detailed Statistics Page
Non-Configurable Data
ifIndex - This object indicates the ifIndex of the interface table entry associated with the Processor of
this switch.
Octets Received - The total number of octets of data received by the processor (excluding framing
bits but including FCS octets).
Packets Received Without Errors - The total number of packets (including broadcast packets and
multicast packets) received by the processor.
Unicast Packets Received - The number of subnetwork-unicast packets delivered to a higher-layer
protocol.
Multicast Packets Received - The total number of packets received that were directed to a
multicast address. Note that this number does not include packets directed to the broadcast address.
Broadcast Packets Received - The total number of packets received that were directed to the
broadcast address. Note that this does not include multicast packets.
Receive Packets Discarded - The number of inbound packets which were chosen to be discarded
even though no errors had been detected to prevent their being deliverable to a higher-layer
protocol. A possible reason for discarding a packet could be to free up buffer space.
Octets Transmitted - The total number of octets transmitted out of the interface, including framing
characters.
Packets Transmitted Without Errors - The total number of packets transmitted out of the interface.
