11.3.12 Managing MAC-based Voice VLAN

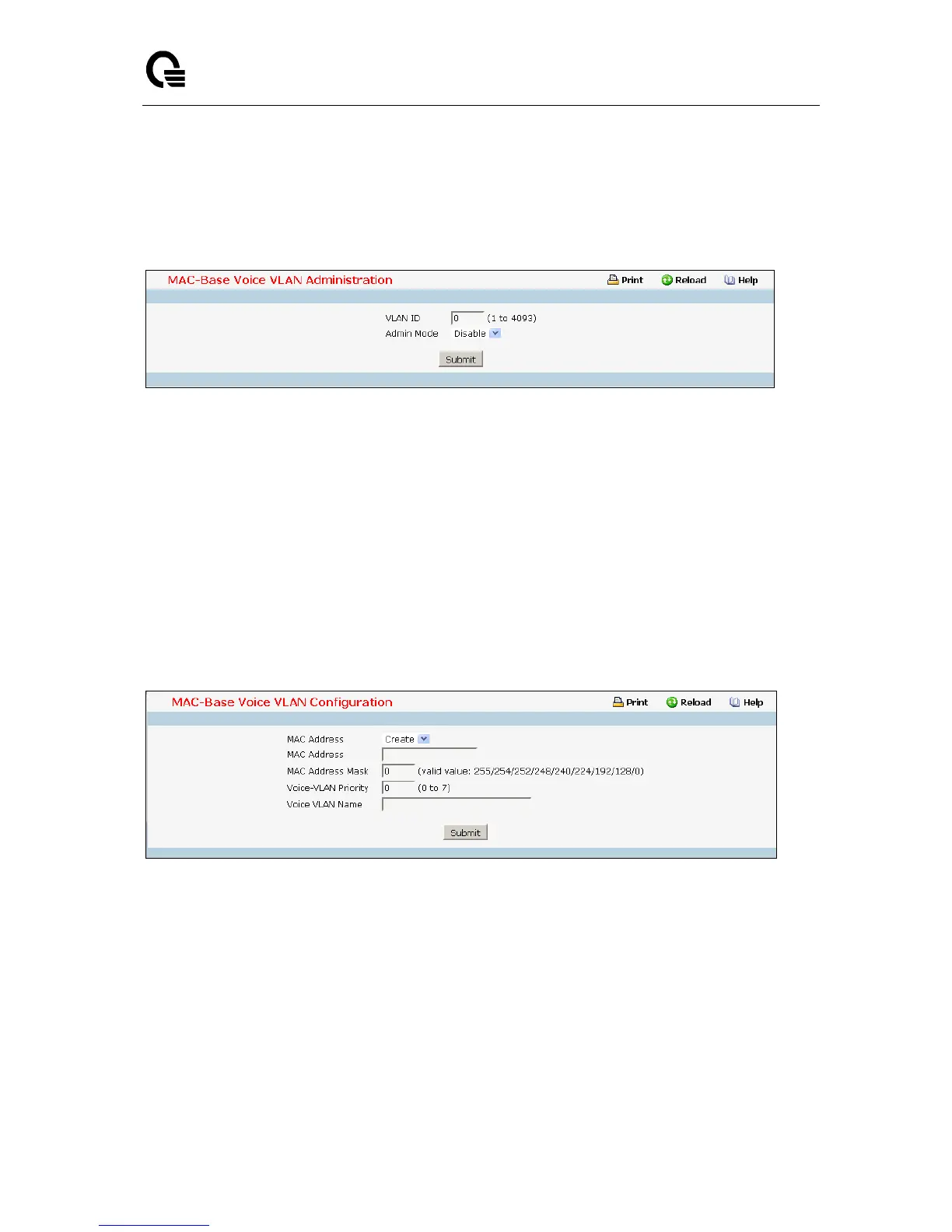

11.3.12.1 MAC-based Voice VLAN Administration Page
Configurable Data
VLAN ID - Sets the VLAN as a Voice VLAN.
Admin Mode - Enables or disables the Voice VLAN function.
Command Buttons
Submit - Applies the new configuration and causes the changes to take effect. These changes will
not be retained across a power cycle unless a save configuration is performed.
11.3.12.2 MAC-based Voice VLAN Configuration Page
Selection Criteria
MAC Address - You can use this screen to create a new one. Use this pull-down menu to select one
of the existing Voice VLANs, or select 'Create' to add a new one.
You cannot define MAC for these addresses:
00:00:00:00:00:00
01:80:C2:00:00:00 to 01:80:C2:00:00:0F
01:80:C2:00:00:20 to 01:80:C2:00:00:2F
01:00:5E:00:00:00 to 01:00:5E:FF:FF:FF
33:33:00:00:00:00 to 33:33:FF:FF:FF:FF
