LB9 User’s Guide 1146/1523
FF:FF:FF:FF:FF:FF
Configurable Data
MAC Address - Specify the MAC Address for the new Voice VLAN. (You can only enter data in this
field when you are creating a new Voice VLAN.).
MAC Address Mask - Use this optional field to specify a mask for the Voice VLAN. The mac-mask is
the last eight digit of the mask code of the MAC address, the valid values are: 0xff, 0xfe, 0xfc, 0xf8,
0xf0, 0xe0, 0xc0, 0x80 and 0x0.
Voice-VLAN Priority - This field identifies the priority of the Voice VLAN you are configuring. The
priority-id is the priority of the voice traffic; the valid range is 0 to 7.
Voice VLAN Name - Use this field to specify the name of the voice device. It is to help the device
management.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
Delete - Delete this VLAN. You are not allowed to delete the default VLAN.

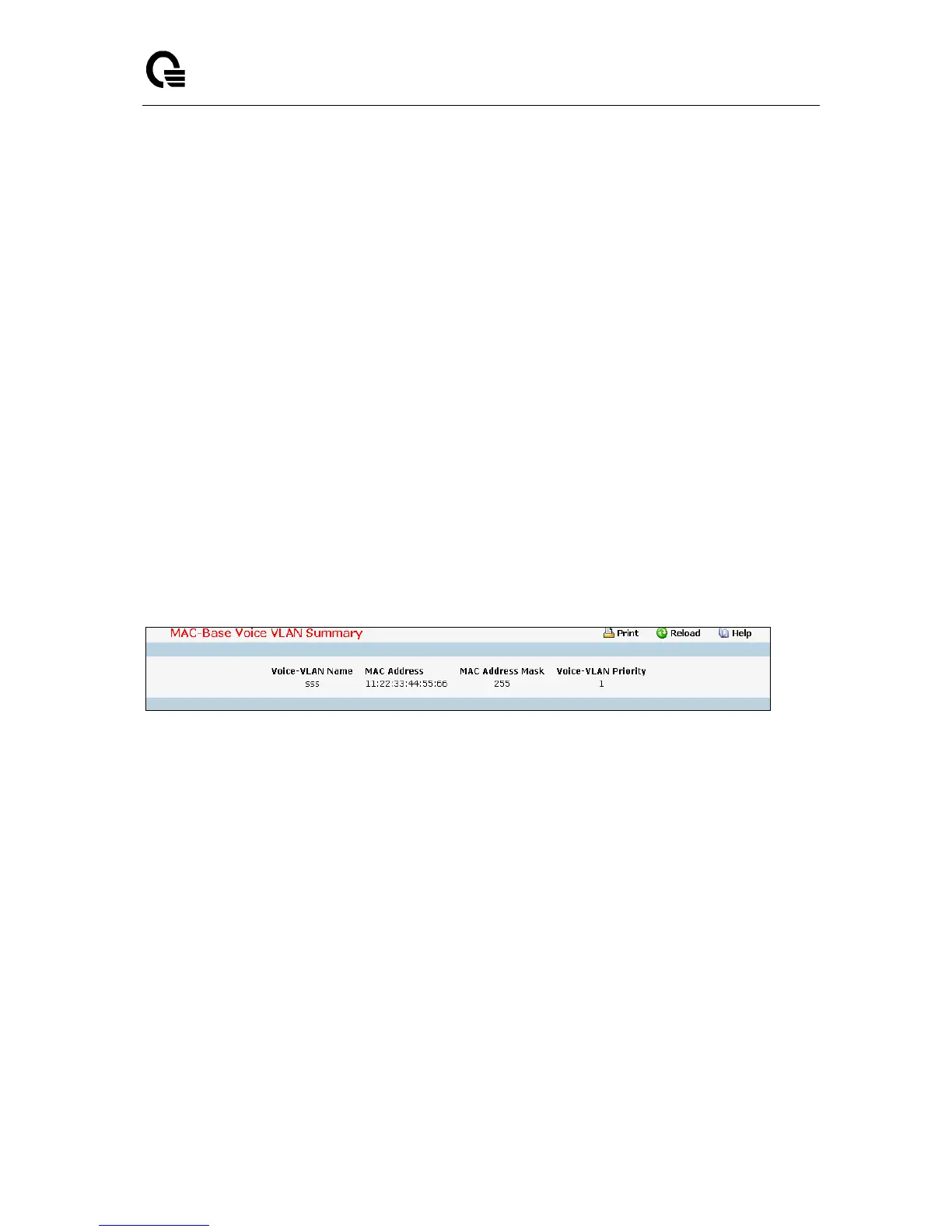

11.3.12.3 Viewing MAC-based Voice VLAN Information Page
This page displays the status of all currently configured Voice VLANs.
Non-Configurable Data
Voice-VLAN Name - The name of the voice device.
MAC Address - The MAC Address for the new Voice VLAN.
MAC Address Mask - The MAC Address Mask for the Voice VLAN. The value is the last eight digit
of the mask code of the MAC address.
Voice-VLAN Priority - The priority-id is the priority of the voice traffic.
