LB9 User’s Guide 1503/1523

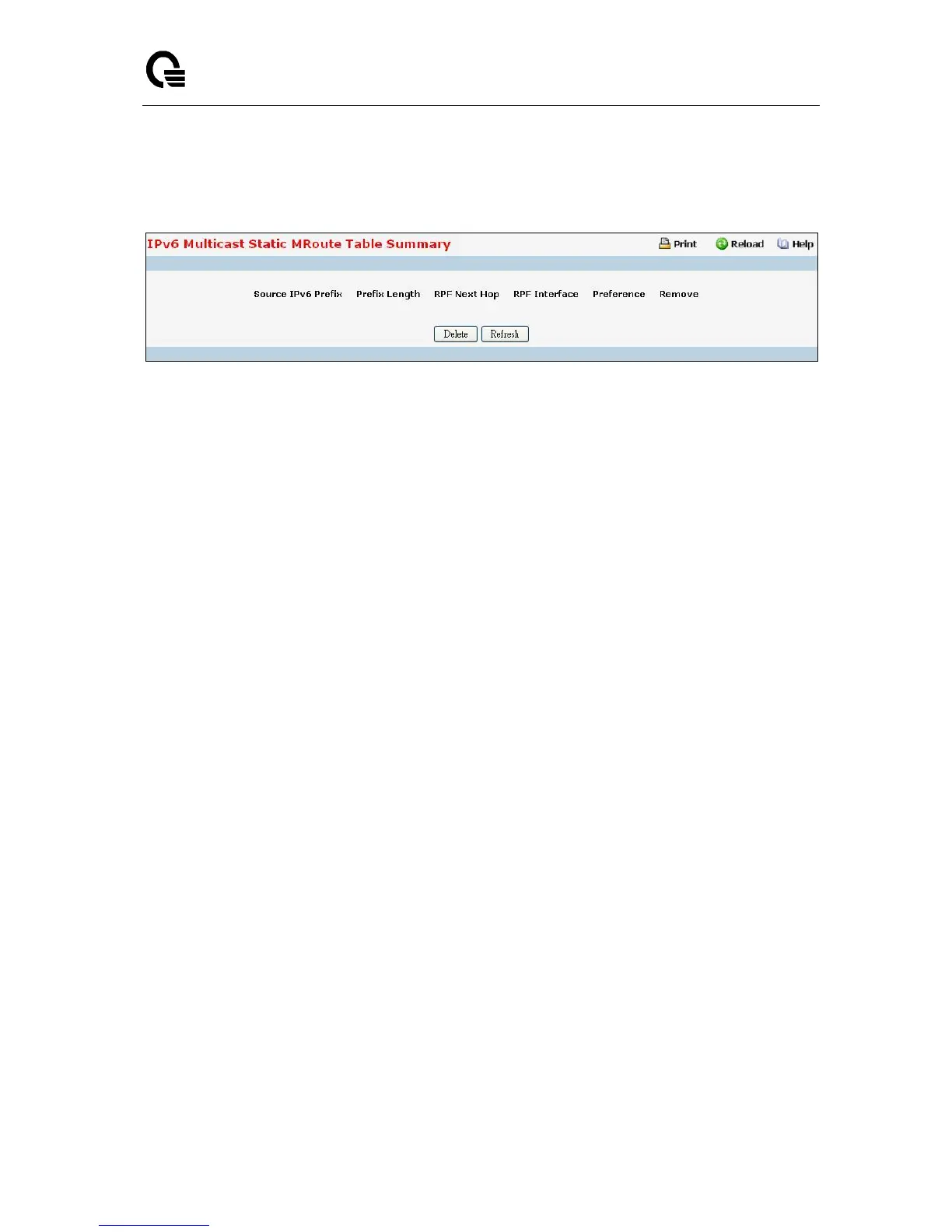

11.9.5 Viewing IPv6 Multicast Static MRoute Table Summary
This page is used to summarize the configured static mroute entries.
Configurable Data
Remove - Check Box to Delete the Selected Static MRoute Entry.
Non-Configurable Data
Source IPv6 Prefix - The IPv6 address of the Multicast data source.
Prefix Length - The Prefix length for the IPv6 address of the Multicast data source.
RPF Next Hop - The RPF Address for the source range of static mroute entry.
RPF Interface - The RPF interface index if RPF address is link-local.
Preference - The preference with which the static mroute to be considered against other matching
static mroute entry for a given source.
Command Buttons
Delete - Deletes the selected static mroute entries in the router. This is used to delete the entries
selected using the Checkbox under Remove field.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
