LB9 User’s Guide 1448/1523

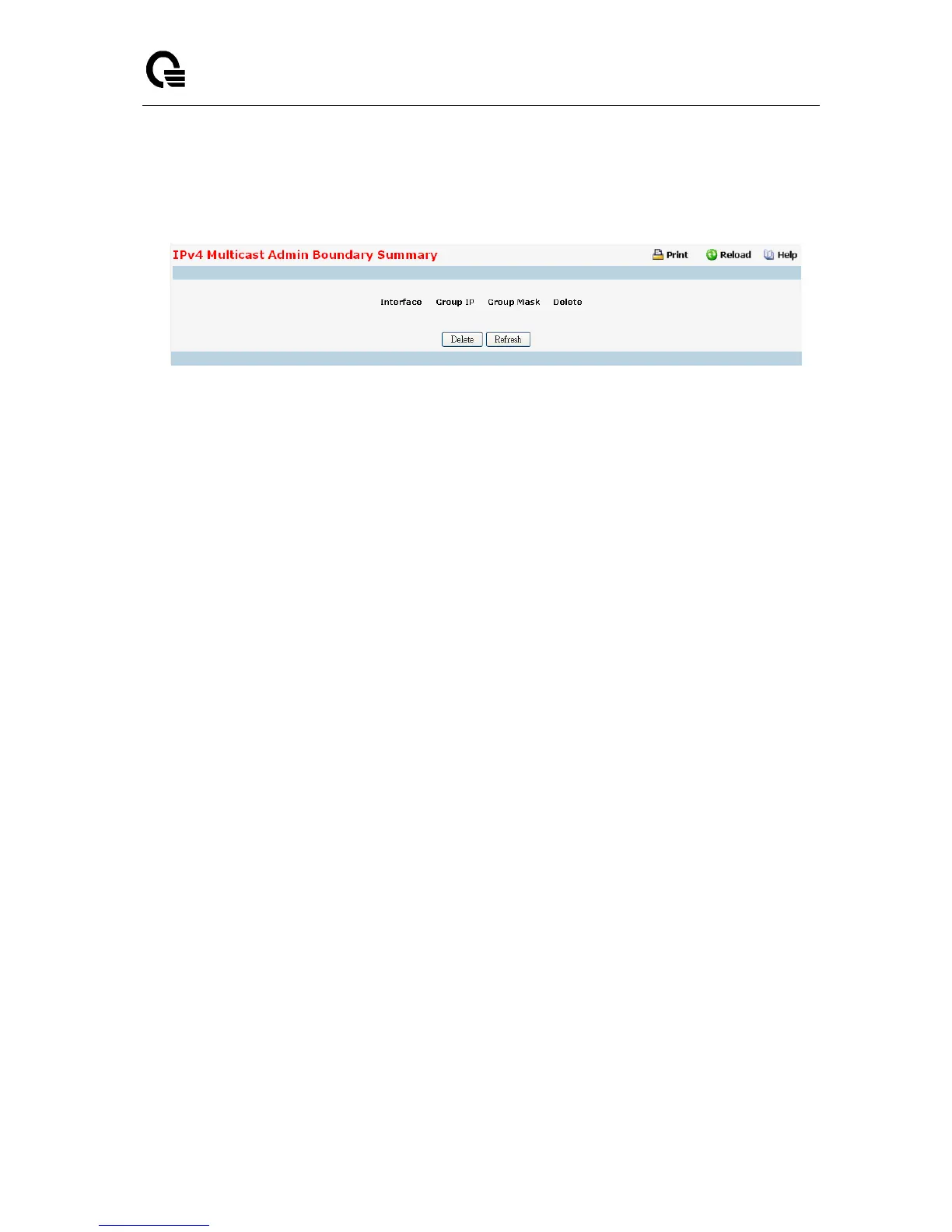

11.8.4 Viewing IPv4 Multicast Admin Boundary Summary
Non-Configurable Data
Interface - The router interface to which the administratively scoped address range is applied.
Group IP - The multicast group address for the start of the range of addresses to be excluded.
Group Mask - The mask that is applied to the multicast group address. The combination of the mask
and the Group IP gives the range of administratively scoped addresses for the selected interface.
Command Buttons
Delete - Deletes the selected admin boundary scope entries in the router.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
