LB9 User’s Guide 1502/1523
Flags - The value displayed in this field is valid if the multicast routing protocol running is PIMSM.
The possible values are RPT or SPT. For other protocols an "------" is displayed.
Command Buttons
Refresh - Refresh the information on the screen with the present state of the data in the router.

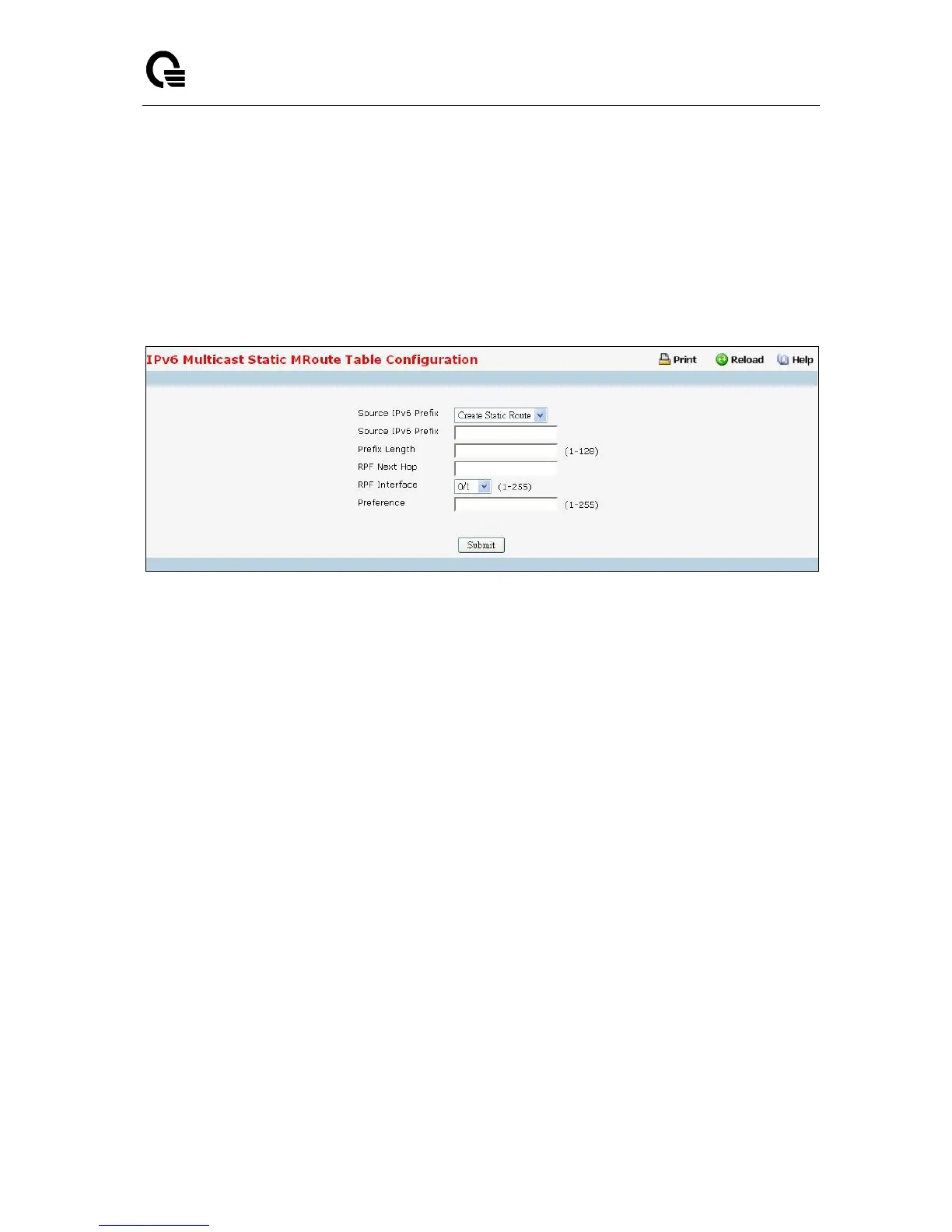

11.9.4 Configuring IPv6 Multicast Static MRoute Table Configuration
This page is used to configure a new or existing static mroute entry.
Configurable Data
Source IPv6 Prefix - Enter the IPv6 address of the Multicast data source.
Prefix Length - Enter the Prefix length for the IPv6 address of the Multicast data source to be
configured.
RPF Next Hop - Enter the RPF Address for the source range of static mroute entry.
RPF Interface - Enter the RPF interface index if RPF address is link-local.
Preference - Enter the preference with which the static mroute to be considered against other
matching static mroute entry for a given source. The valid values are from (1 to 255).
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
