LB9 User’s Guide 982/1523
11 Web-Based Management Interface
11.1 Overview
The Layer 3 Network Switch provides a built-in browser software interface that lets you configure and
manage it remotely using a standard Web browser such as Microsoft Internet Explorer or Netscape
Navigator. This software interface also allows for system monitoring and management of the Network
Switch. When you configure this Network Switch for the first time from the console, you have to assign
an IP address and subnet mask to the Network Switch. Thereafter, you can access the Network Switch’s
Web software interface directly using your Web browser by entering the switch’s IP address into the
address bar. In this way, you can use your Web browser to manage the Switch from any remote PC
station, just as if you were directly connected to the Network Switch’s console port.

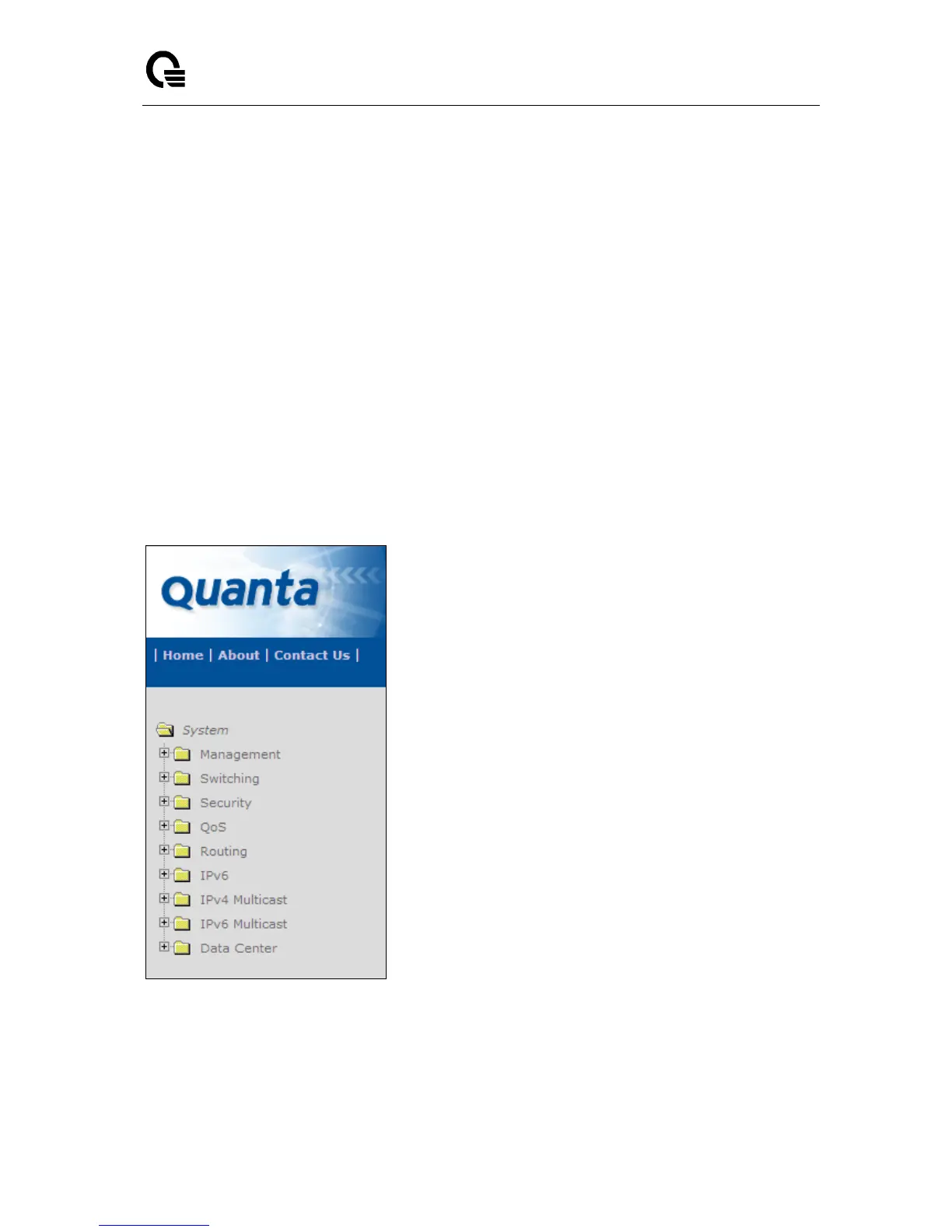

The 8 menu options available are: Management, Switching, Security, QOS, Routing, IPv6, IPv4
Multicast, IPv6 Multicast and Data Center.
1. Management Menu: This section provides information for SNMP and trap manager, User
management, System utility including system time, defining system parameters including telnet
session and console baud rate, etc, File management including downloading switch module
software and configuration file, and resetting the switch module switch statistics, SNTP, LLDP,
UDLD, CDP, DHCP client, DNS Relay and DDNS.
