_____________________________________________________________________________
LB9 User’s Guide 1476/1523
Protocol - The multicast routing protocol which created this entry. The possibilities are: PIM-DM,
PIM-SM , MLD-Proxy
Flags - The value displayed in this field is valid if the multicast routing protocol running is PIMSM.
The possible values are RPT or SPT. For other protocols an "------" is displayed.
Command Buttons
Refresh - Refresh the information on the screen with the present state of the data in the router.

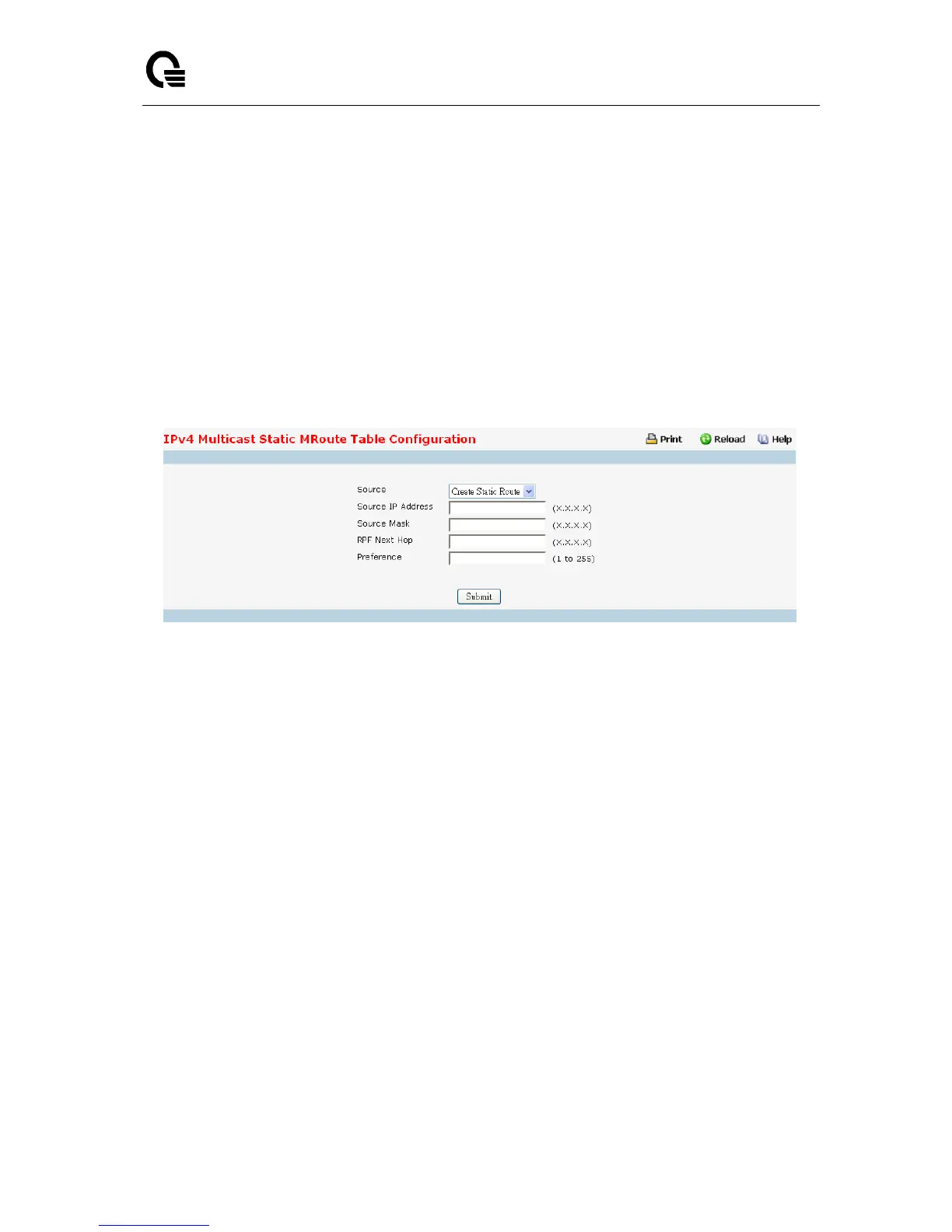

11.8.9 Configuring IPv4 Multicast Static MRoute Table Configuration
This page is used to configure a new or existing static mroute entry.
Configurable Data
Source IP Address - Enter the address of the Multicast data source.
Source Mask - Enter the network mask for the IP address of the Multicast data source to be
configured.
RPF Next Hop - Enter the RPF Address for the source range of static mroute entry.
Preference - Enter the preference with which the static mroute to be considered against other
matching static mroute entry for a given source. The valid values are from (1 to 255).
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
