11.3.13 Managing Voice VLAN
11.3.13.1 Voice VLAN Configuration Page

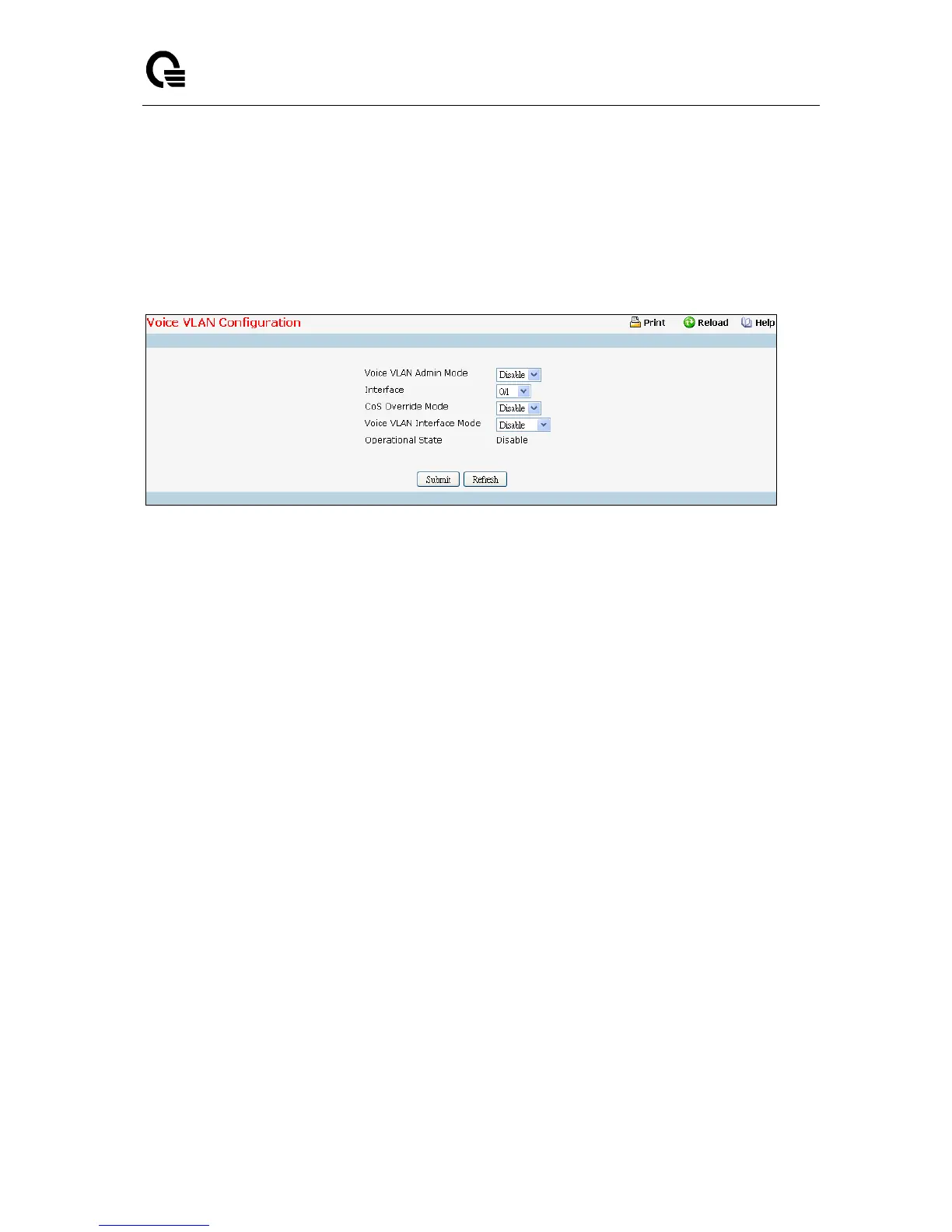

Use this menu to configure the parameters for Voice VLAN Configuration. Note that only a user with
Read/Write access privileges may change the data on this screen.
Selection Criteria
Voice VLAN Admin Mode - Select the administrative mode for Voice VLAN for the switch from the
pull-down menu. The default is Disable.
Interface - Select the physical interface for which you want to configure data.
Voice VLAN Interface Mode - Select the Voice VLAN mode for selected interface.
Disable - Default value
None - Allow the IP phone to use its own configuration to send untagged voice traffic
VLAN ID - Enter the Voice VLAN Id
dot1p - Configure Voice VLAN 802.1p priority tagging for voice traffic
Untagged - Configure the phone to send untagged voice traffic
CoS Override Mode - Select the CoS Override mode for selected interface. The default is Disable.
Non-Configurable Data
Operational State - This is the operational status of the voice VLAN on the given interface.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
