_____________________________________________________________________________
LB9 User’s Guide 1273/1523
11.4.6 Managing LDAP Configuration

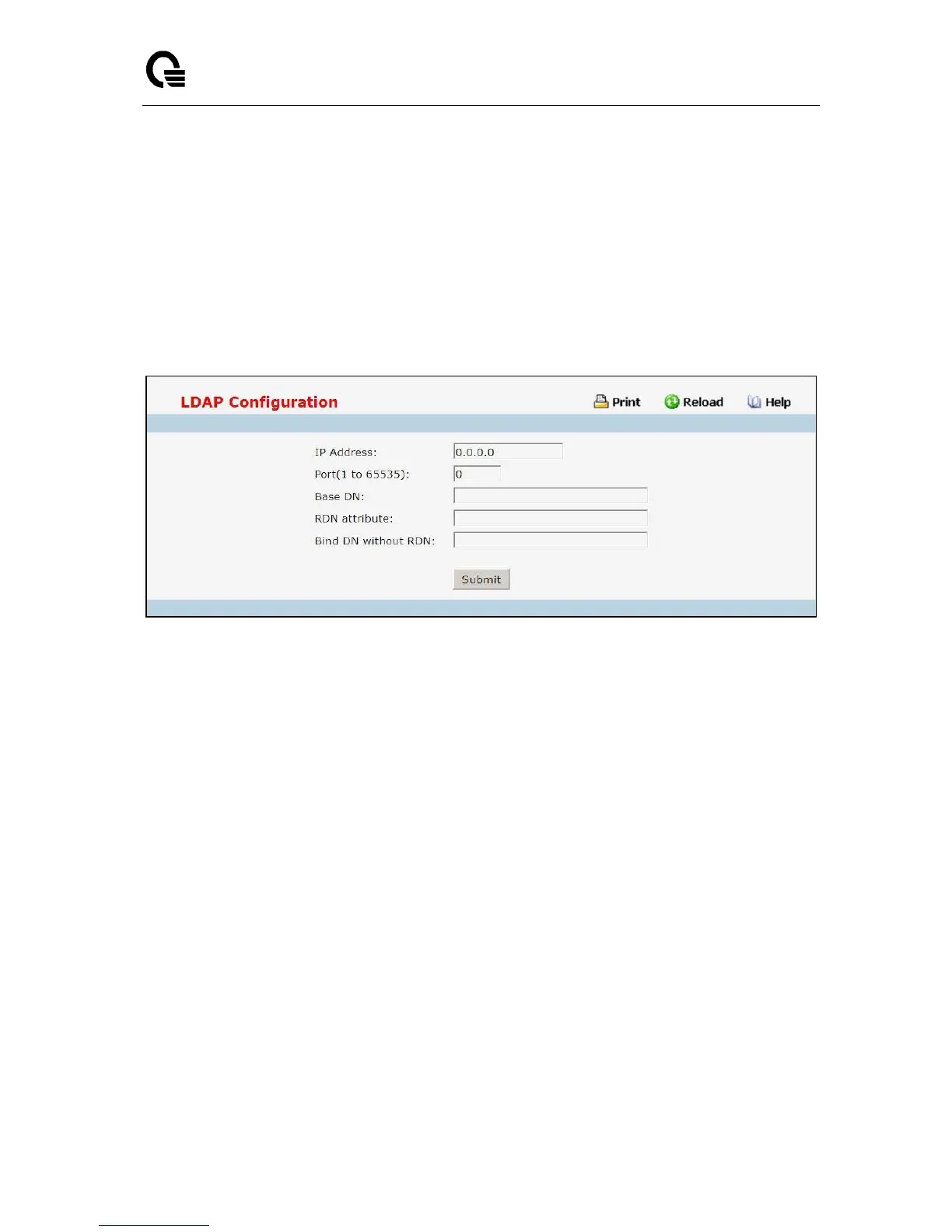

11.4.6.1 Configuring LDAP Configuration Page
If RDN(Relative Distinguished Name) attribute is "cn"(common name), and bind DN(Distinguished
Name) without RDN is "dc=test,dc=com". User name is "root", and password is "1234".Then the bind DN
is "cn=root,dc=test,dc=com", and password is "1234". (OU stands for "Organization Unit". DC stands for
"Domain Component".)
Configurable Data
IP Address - Specifies the LDAP server’s IP address.
Port – The port number that server are listening. Default is 389.
Base DN - Base distinguished name, default is empty string.
RDN attribute - RDN attribute of bind DN, default is empty string.
Bind DN without RDN - Partial bind DN exclude RDN with it, default is empty string.
Command Buttons
Submit - Update the LDAP configuration with the values you entered. If you want the switch to retain
the new values across a power cycle you must perform a save.
To Next Page
