11.3.10 Managing IP Subnet-based VLAN

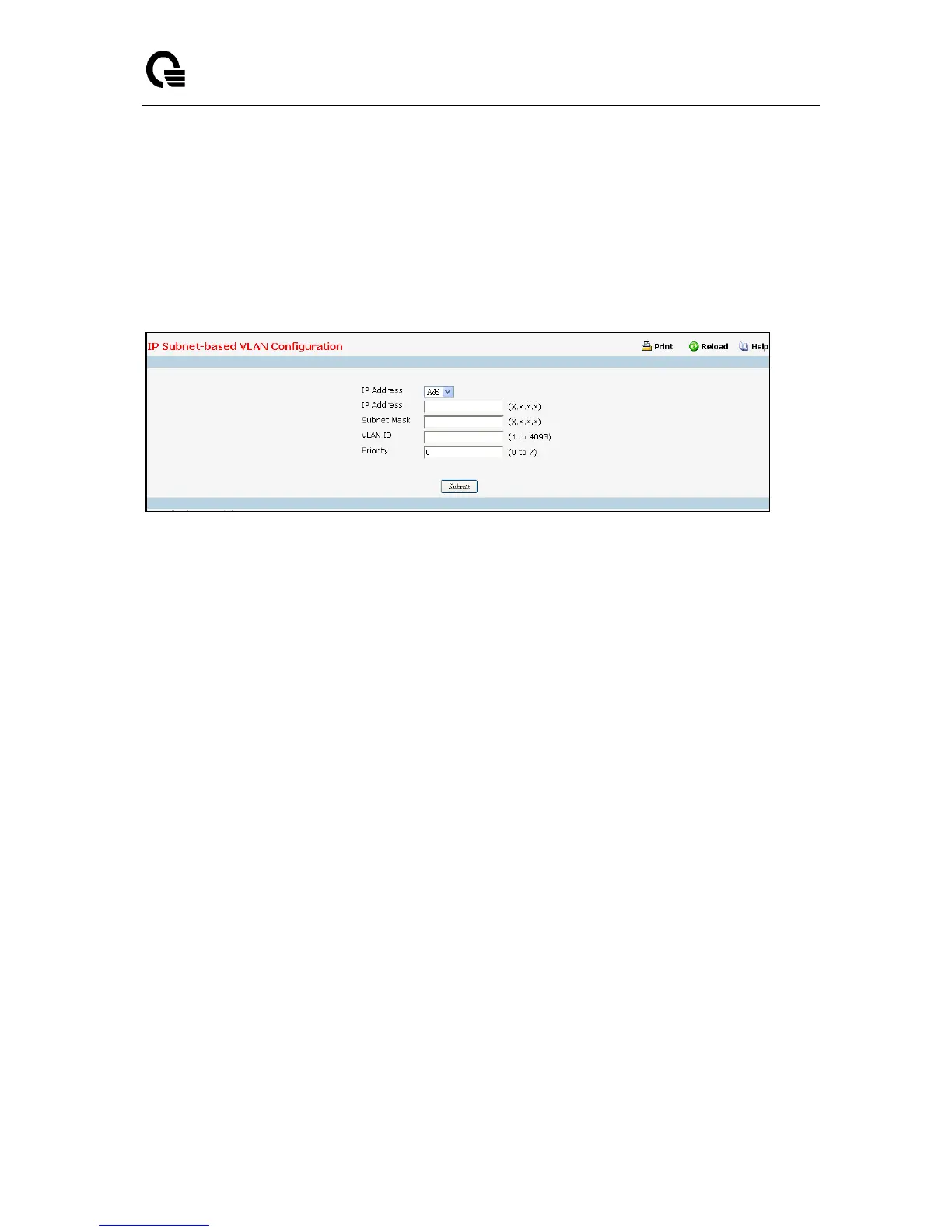

11.3.10.1 IP Subnet-based VLAN Configuration Page
IP Subnet to VLAN mapping is defined by configuring an entry in the IP Subnet to VLAN table. An entry
is specified via a source IP address, network mask, and the desired VLAN ID. The IP Subnet to VLAN
configurations are shared across all ports of the device.
Selection Criteria
IP Address - Selects the IP Address bound to a VLAN ID. To add another IP Subnet-based VLAN,
select "Add" option.
Configurable Data
IP Address - Valid IP Address bound to VLAN ID. This field is configurable only when a new IP
Subnet Based VLAN is being created. IP Address in dotted decimal notation.
Subnet Mask - Valid Subnet Mask of the IP Address. This field is configurable only when a new IP
Subnet-based VLAN is being created. Subnet mask should be in dotted decimal notation.
VLAN ID - VLAN ID can be any number in the range of (1 to 4093).
Priority - Priority can be any number in the range of (0 to 7).
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
Delete - Delete an entry of IP Subnet to VLAN mapping.
