UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1142/1523

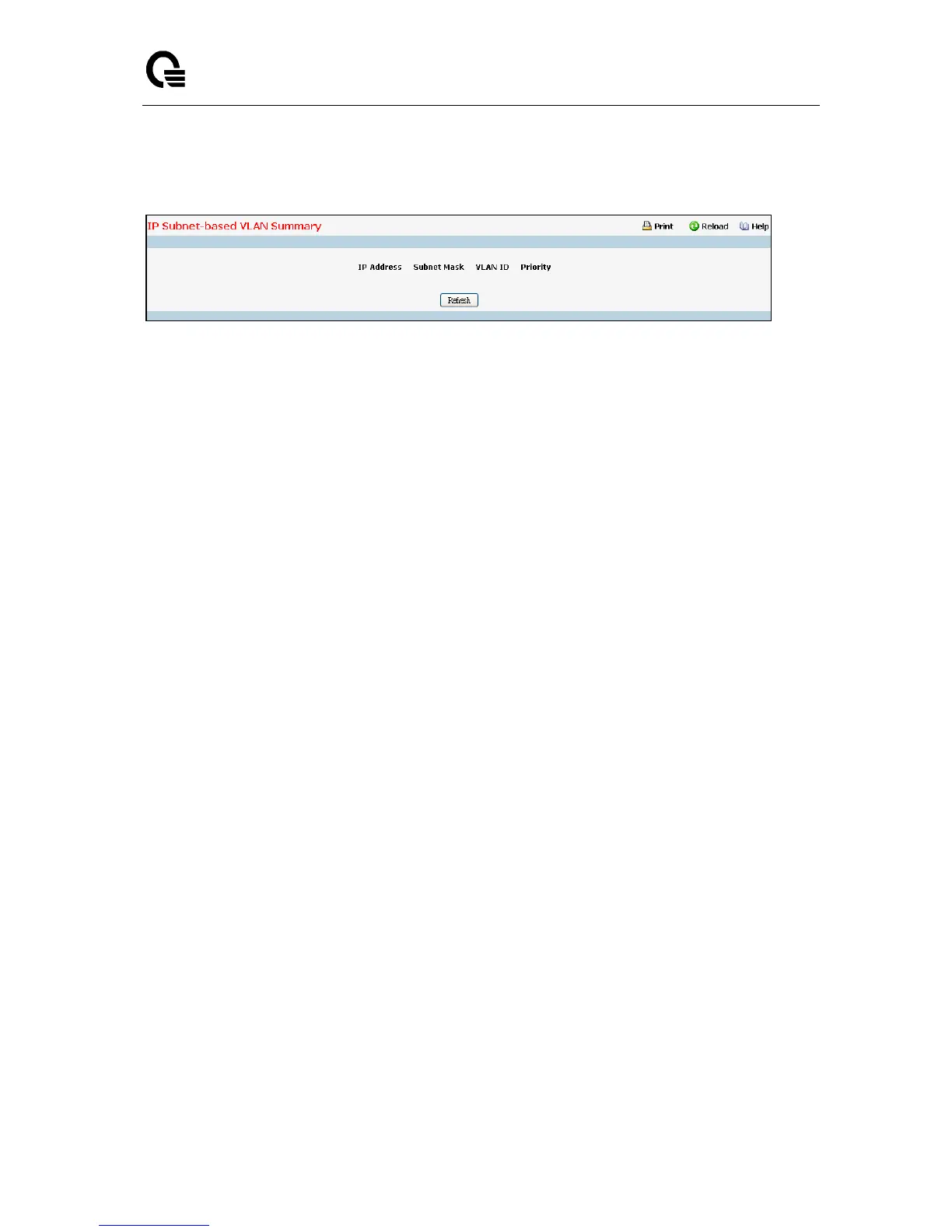

11.3.10.2 Viewing IP Subnet-based VLAN Information Page
Non-Configurable Data
IP Address - The IP Address of the subnet that is being bound to a VLAN ID.
Subnet Mask - Subnet mask of the IP Address bound to VLAN ID.
VLAN ID - VLAN ID to which above mentioned IP Subnet is being bound to. VLAN ID can be any
number in the range of (1 to 4093).
Priority - The Priority to which above mentioned IP Subnet is being bound.
Command Buttons
Refresh - Update the screen with the latest information.
