LB9 User’s Guide 1445/1523
11.8 IPv4 Multicast Menu

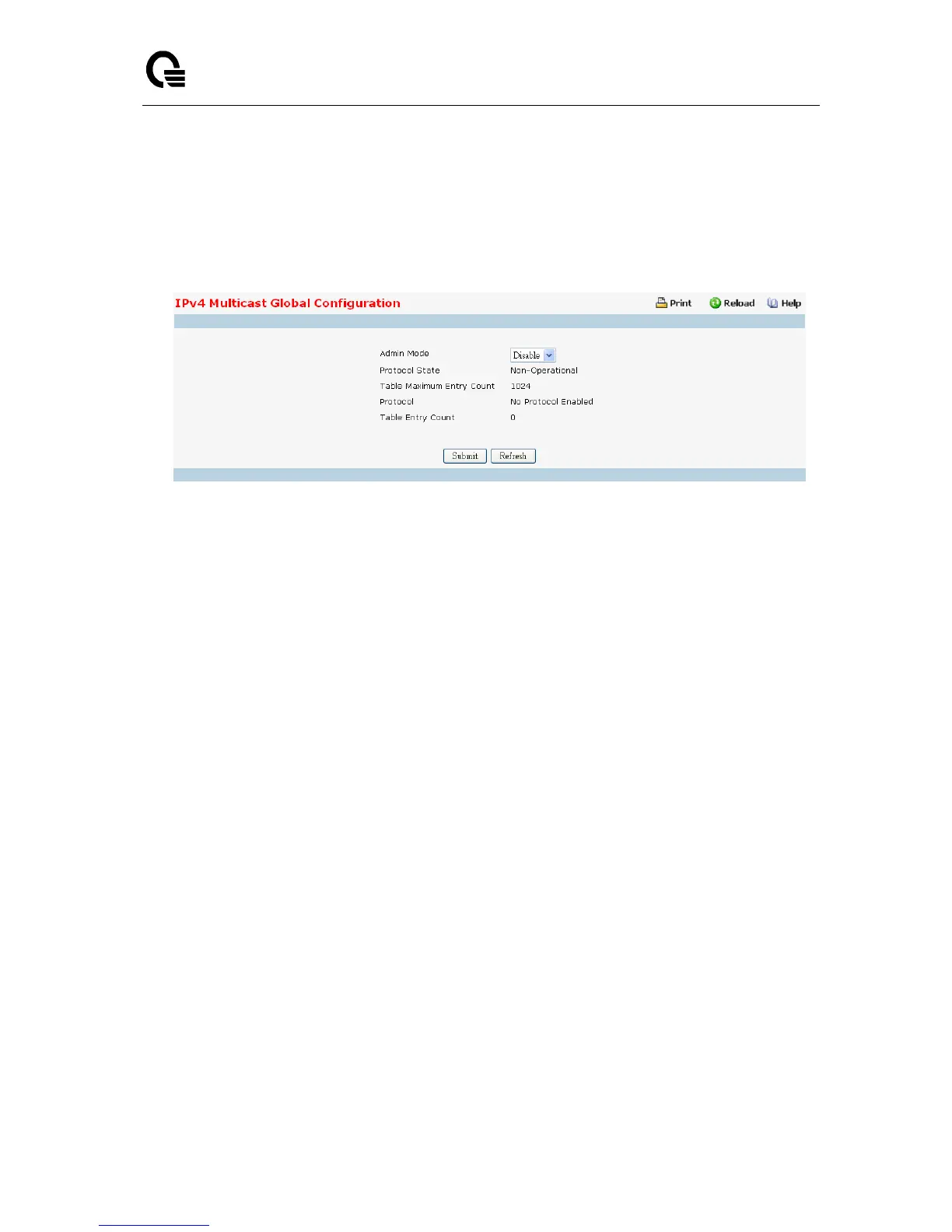

11.8.1 Configuring IPv4 Multicast Global
Selection Criteria
Admin Mode - Select enable or disable to set the administrative status of Multicast Forwarding in
the router. The default is disable.
Non-Configurable Data
Protocol State - The operational state of the multicast forwarding module.
Table Maximum Entry Count - The maximum number of entries in the IP Multicast routing table.
Protocol - The multicast routing protocol presently activated on the router, if any.
Table Entry Count - The number of multicast route entries currently present in the Multicast route
table.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
