LB9 User’s Guide 1410/1523

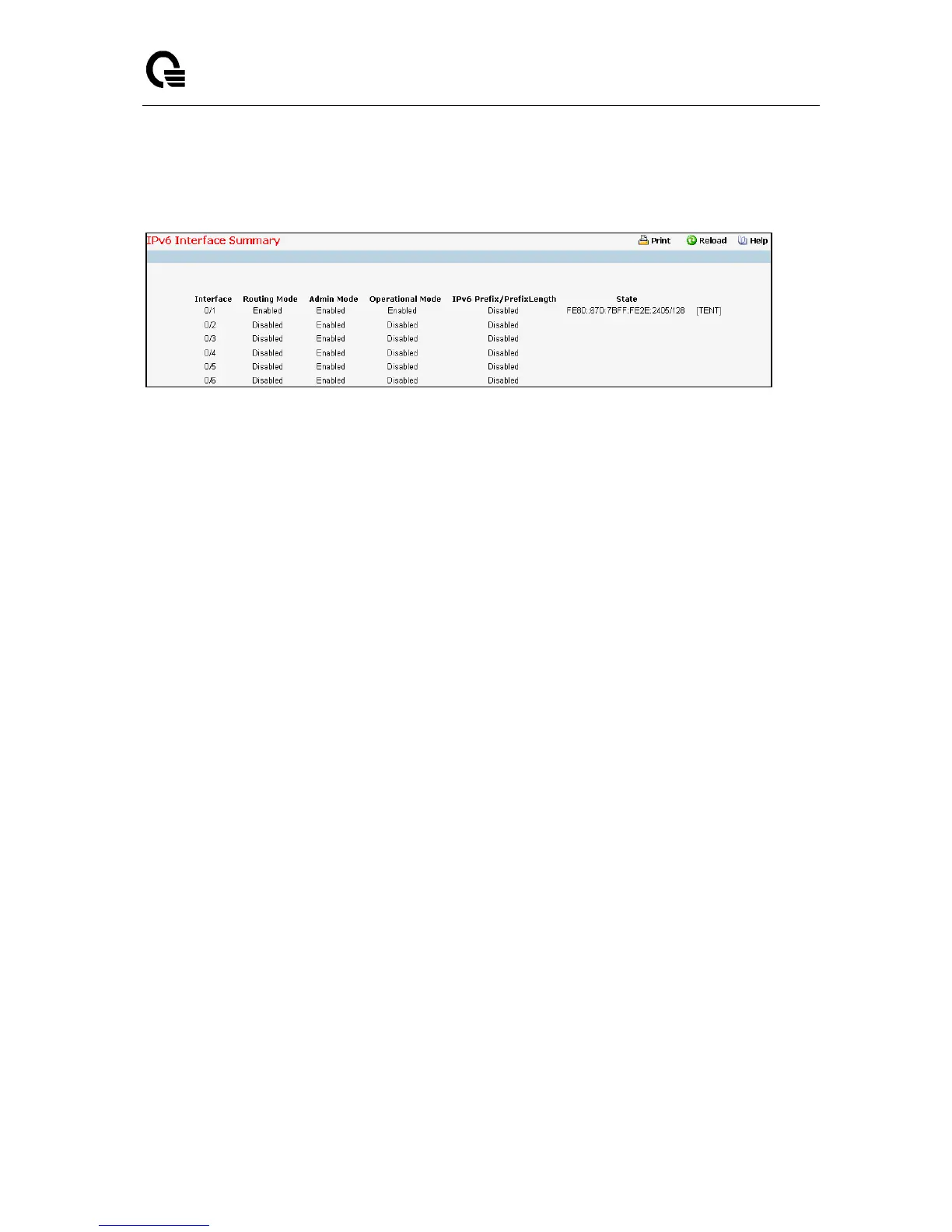

11.7.3 Viewing IPv6 Interface Summary Page
Non-Configurable Data
Interface - Specifies the interface whose settings are displayed in the current table row.
Routing Mode - Specifies routing mode of an interface.
Admin Mode - Specifies administrative mode of an interface.
Operational Mode - Specifies operational mode of an interface.
IPv6 Prefix - Specifies configured IPv6 Prefix on an interface.
Prefix Length - Specifies configured Prefix Length on an interface.
State - Specifies the state of the IPv6 Prefix on the interface. The valid values are: DHCP - If the
address is acquired by the DHCPv6 Client running on this interface. AUTO - If the address is
Auto-configured on the interface. ACTIVE - If the address is manually configured on the interface or
is link-local and is active. TENT - If the address (added manually, link-local, auto-configured or
acquired through DHCP) is not operationally active on the interface.
Command Buttons
Refresh - Refreshes the screen with most recent data.
