11.5.5 Managing Class of Service

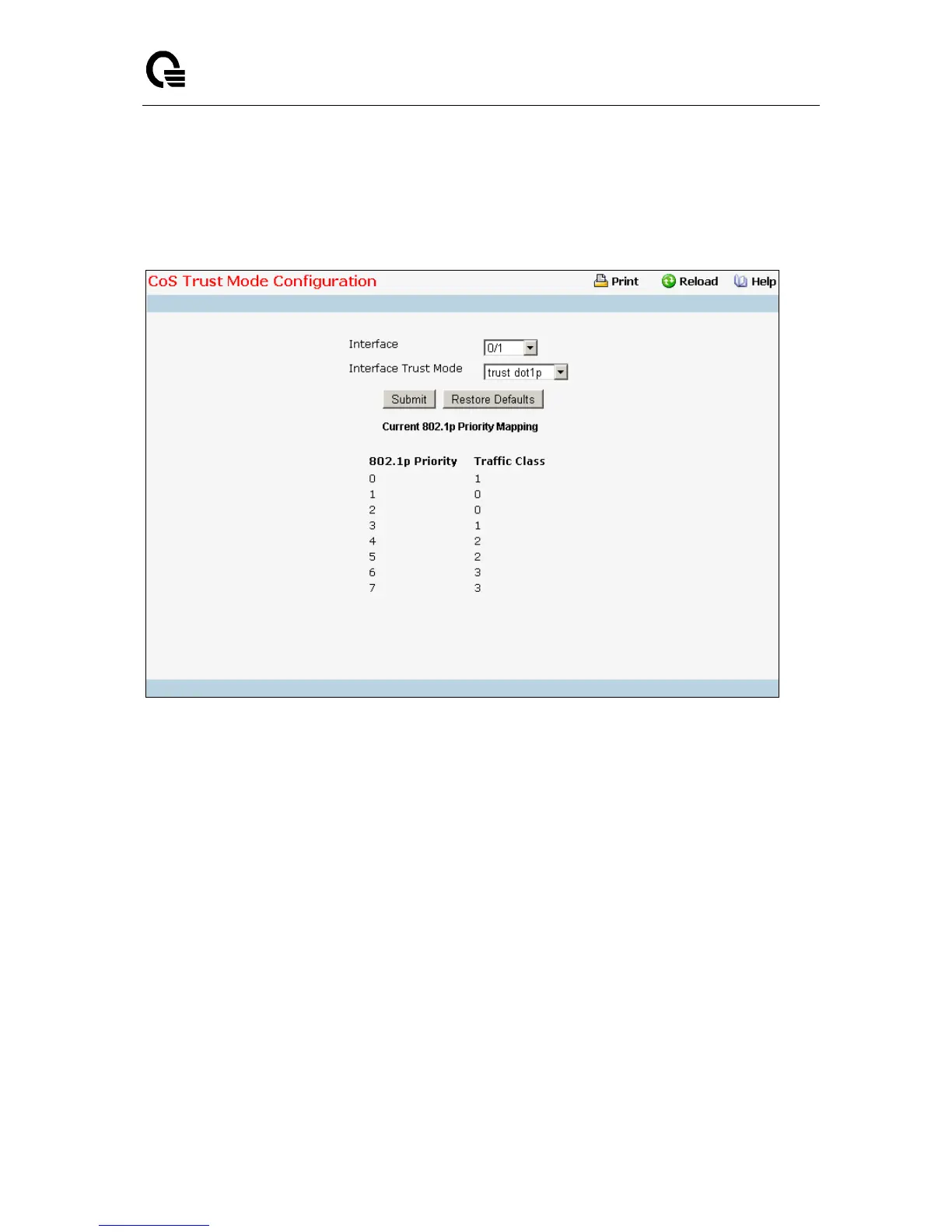

11.5.5.1 Configuring Trust Mode Configuration Page
Selection Criteria
Interface - Specifies all CoS configurable interfaces. The option "Global" represents the most recent
global configuration settings. These may be overridden on a per-interface basis.
Interface Trust Mode - Specifies whether or not to trust a particular packet marking at ingress.
Interface Trust Mode can only be one of the following:
ï‚· untrusted
ï‚· trust dot1p
ï‚· trust ip-dscp
Default value is trust dot1p.
Non-Configurable Data
Untrusted Traffic Class - Displays traffic class (i.e. queue) to which all traffic is directed when in
'untrusted' mode. Valid Range is (0 to 7).
Non-IP Traffic Class - Displays traffic class (i.e. queue) to which all non-IP traffic is directed when in
'trust ip-precedence' or 'trust ip-dscp' mode. Valid Range is (0 to 7).
Current 802.1p Priority Mapping - Displays the current 802.1p priority mapping configuration.
Command Buttons
To Next Page
