UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1477/1523

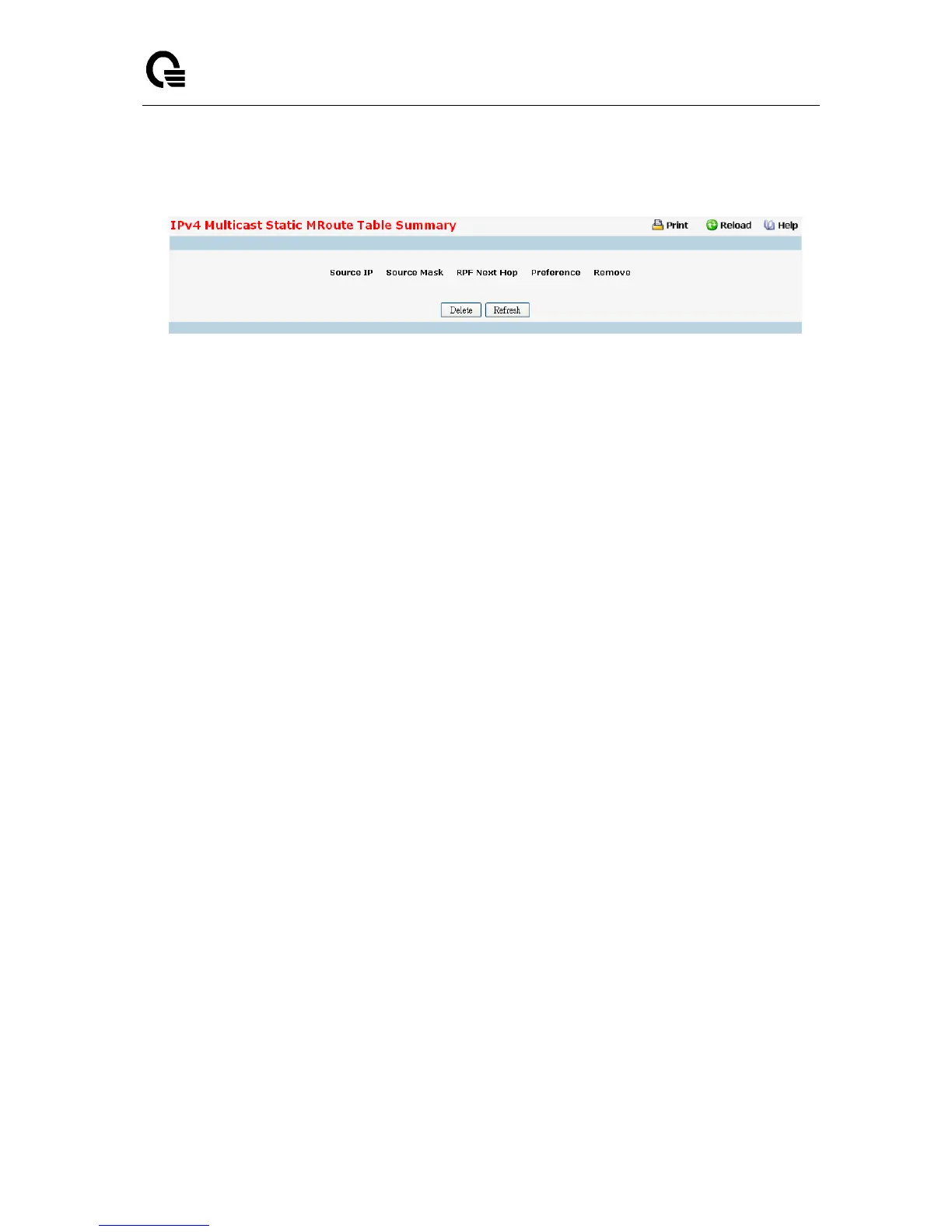

11.8.10 Viewing IPv4 Multicast Static MRoute Table Summary
This page is used to summarize the configured static mroute entries.
Configurable Data
Remove - Check Box to Delete the Selected Static MRoute Entry.
Non-Configurable Data
Source IP - The address of the Multicast data source.
Source Mask - The network mask for the IP address of the Multicast data source to be configured.
RPF Next Hop - The RPF Address for the source range of static mroute entry.
Preference - The preference with which the static mroute to be considered against other matching
static mroute entry for a given source.
Command Buttons
Delete - Deletes the selected static mroute entries in the router. This is used to delete the entries
selected using the Checkbox under Remove field
Refresh - Refresh the data on the screen with the present state of the data in the switch.
