UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1140/1523

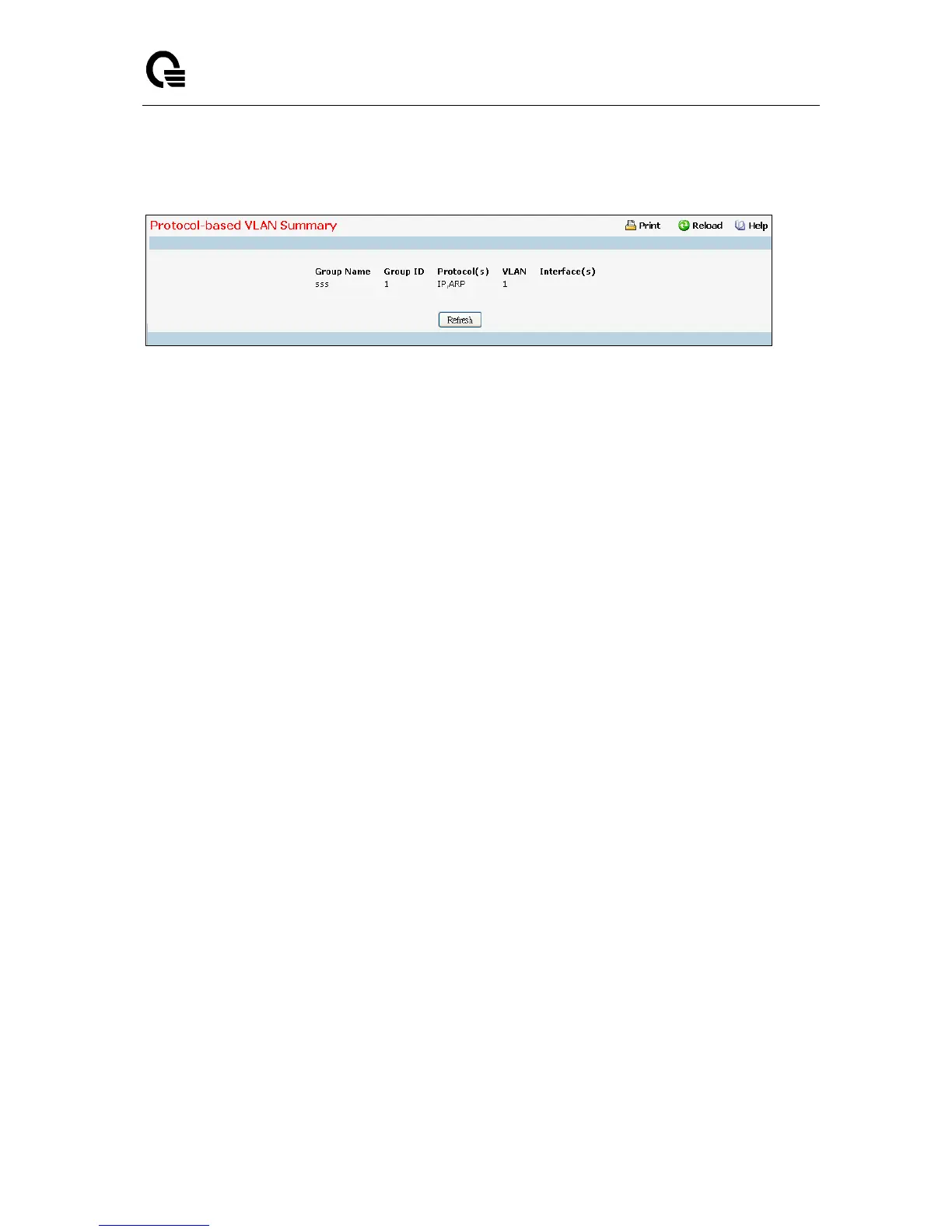

11.3.9.2 Viewing Protocol-based VLAN Information Page
Non-Configurable Data
Group Name - The name associated with the group. Group names can be up to 16 characters. The
maximum number of groups allowed is 128.
Group ID - The number used to identify the group. It was automatically assigned when you created
the group.
Protocol(s) - The protocol(s) that belongs to the group. There are three configurable protocols: IP,
IPX, and ARP.
IP - IP is a network layer protocol that provides a connectionless service for the delivery of data.
ARP - Address Resolution Protocol (ARP) is a low-level protocol that dynamically maps network
layer addresses to physical medium access control (MAC) addresses.
IPX - The Internetwork Packet Exchange (IPX) is a connectionless datagram Network-layer
protocol that forwards data over a network.
VLAN - The VLAN ID associated with the group.
Interface(s) - The interfaces associated with the group.
Command Buttons
Refresh - Update the screen with the latest information.
