11.3.26.2 Configuring Link State Status

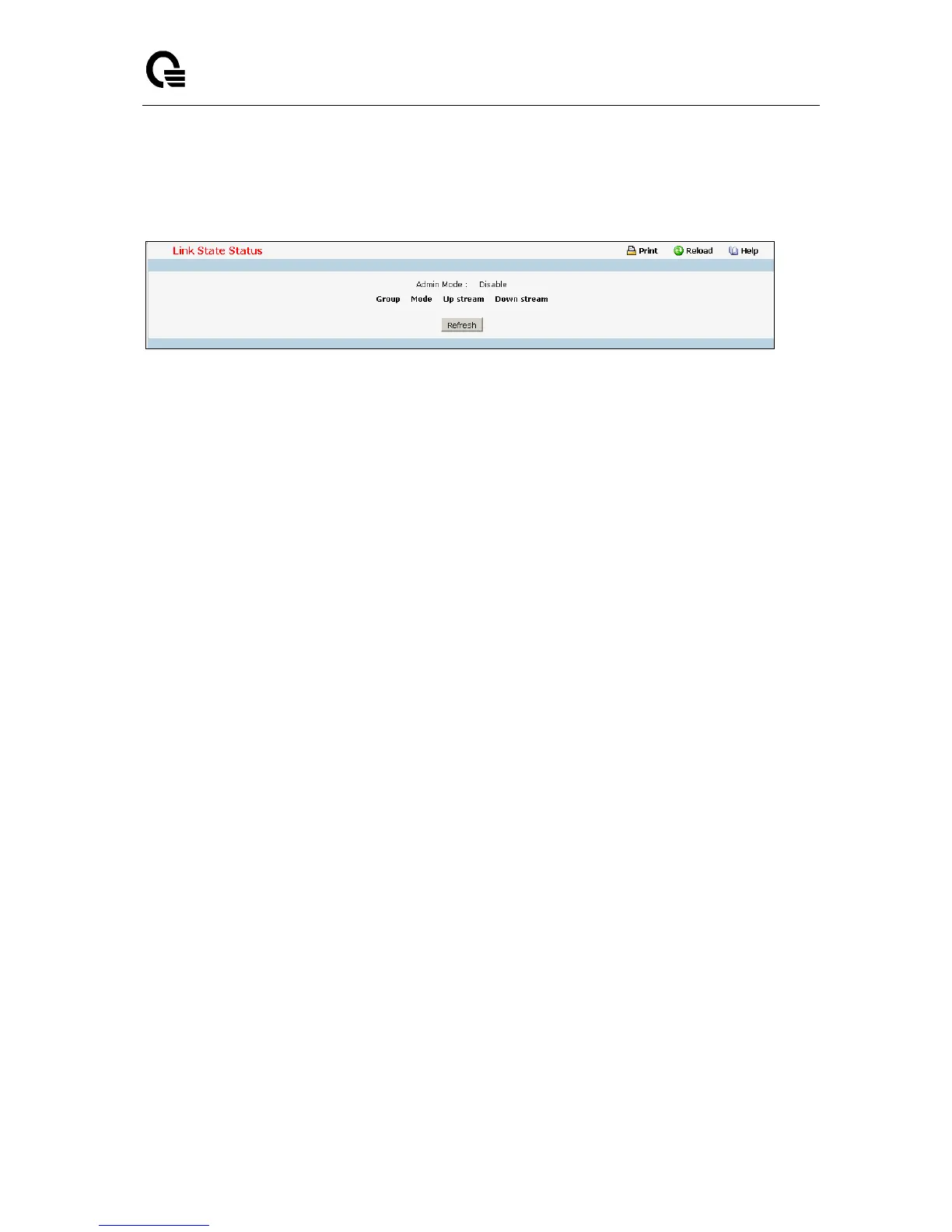

This page displays the status of all currently configured link state.
Selection Criteria
Admin Mode - The administrative mode of the link state function.
Group ID - The group identify of the link state. The range of the group ID is 1 ~ 6.
Mode - The administrative mode of the group.
Upstream port - The monitored uplink port, and the link state of this uplink port.
Downstream ports - The downlink ports for link state.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
