UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1206/1523

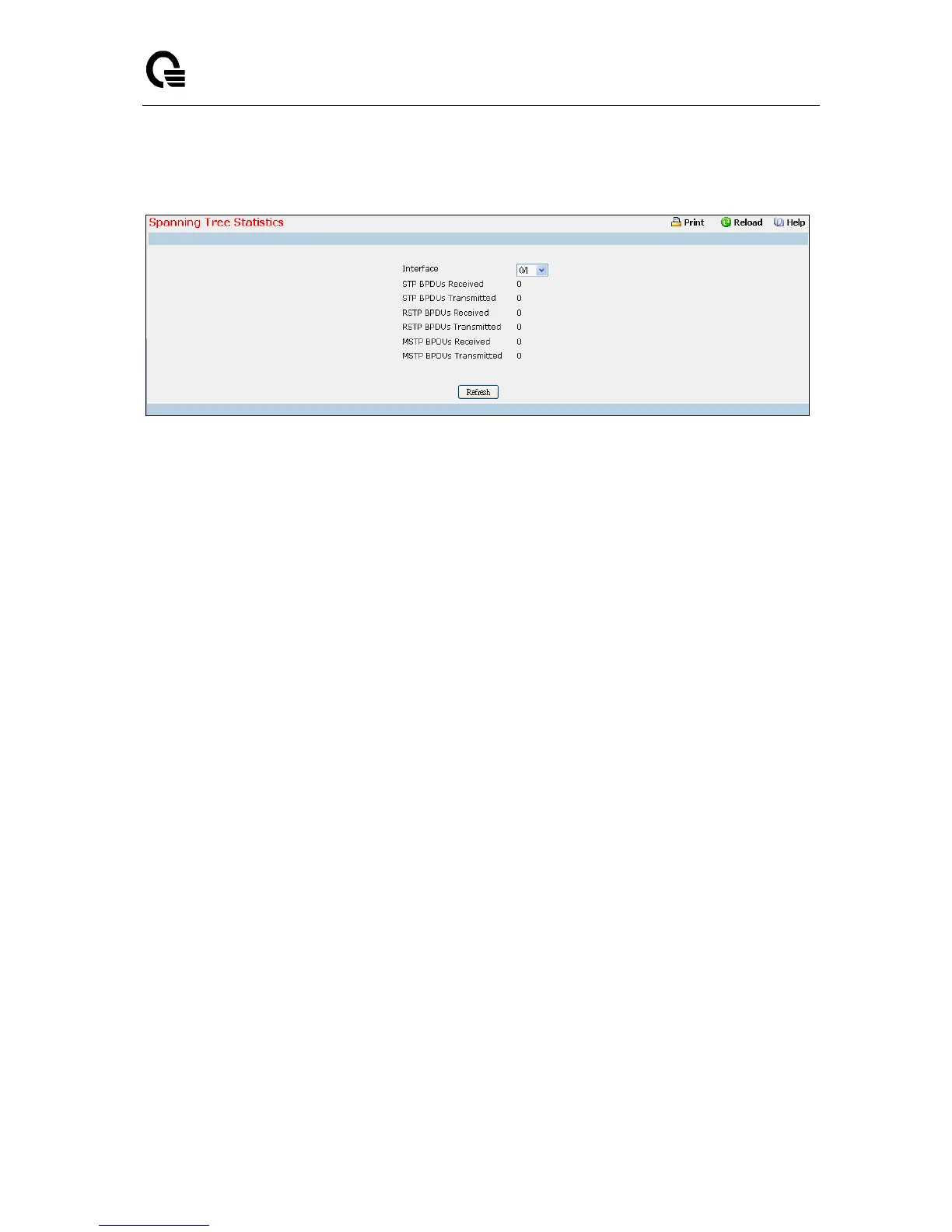

11.3.24.6 Viewing Spanning Tree Statistics Page
Selection Criteria
Interface - Selects one of the physical or LAG interfaces of the switch.
Non-Configurable Data
STP BPDUs Received - Number of STP BPDUs received at the selected port.
STP BPDUs Transmitted - Number of STP BPDUs transmitted from the selected port.
RSTP BPDUs Received - Number of RSTP BPDUs received at the selected port.
RSTP BPDUs Transmitted - Number of RSTP BPDUs transmitted from the selected port.
MSTP BPDUs Received - Number of MSTP BPDUs received at the selected port.
MSTP BPDUs Transmitted - Number of MSTP BPDUs transmitted from the selected port.
Command Buttons
Refresh - Refresh the screen with most recent data.
