LB9 User’s Guide 1208/1523

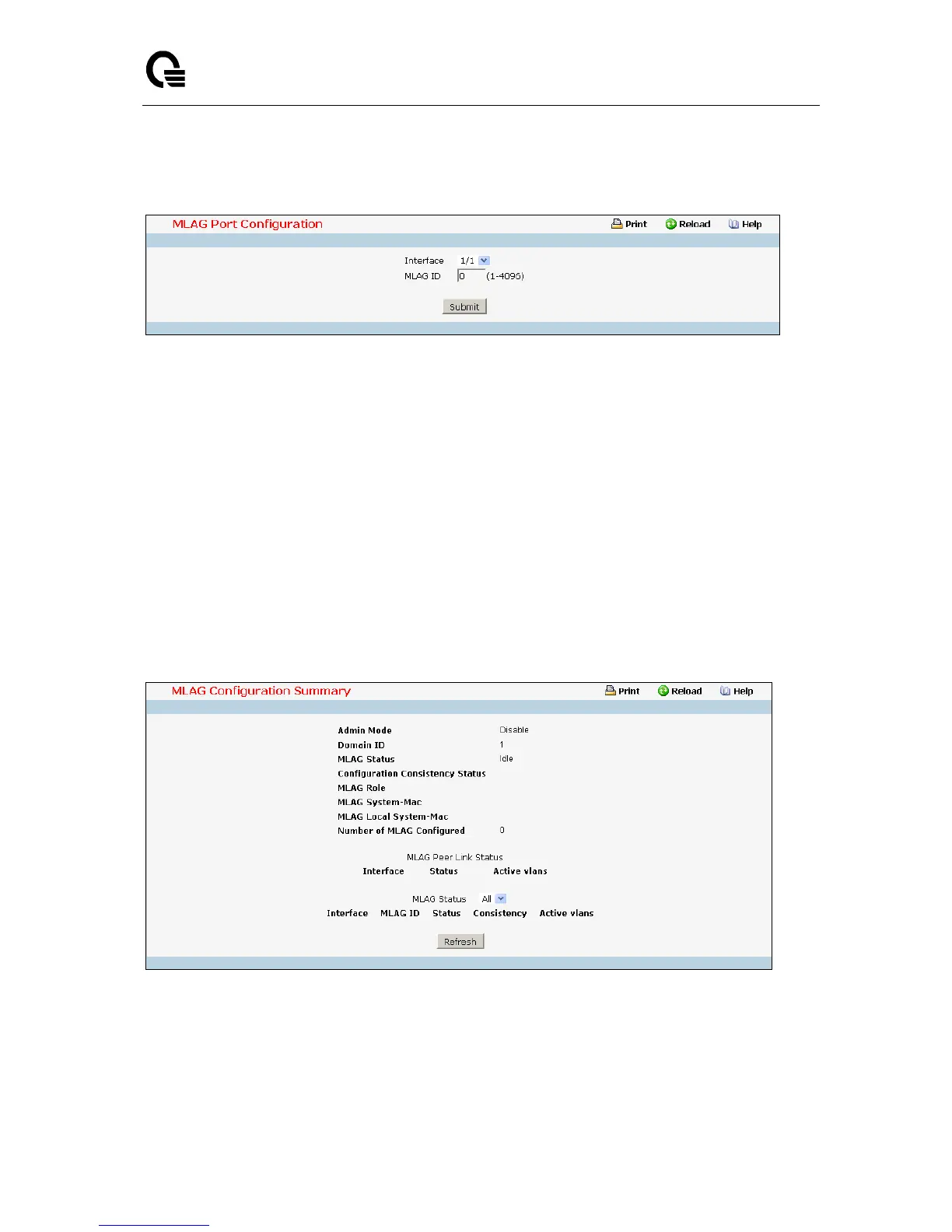

11.3.25.2 Configuring MLAG Port
Selection Criteria
Interface - You can use this to set up parameter for a interface.
Configurable Data
MLAG ID - To move other port channels into a Multi-chassis Link Aggregation (MLAG) to connect to
the downstream device, use the mlag command. The range is from 1 and 4096.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
11.3.25.3 Viewing MLAG Configuration Summary
Selection Criteria
MLAG Status - You can use this to see MLAG parameters for an interface(s).
Non-Configurable Data
Admin Mode - Displays the administrative mode for MLAG functionality on the switch.
