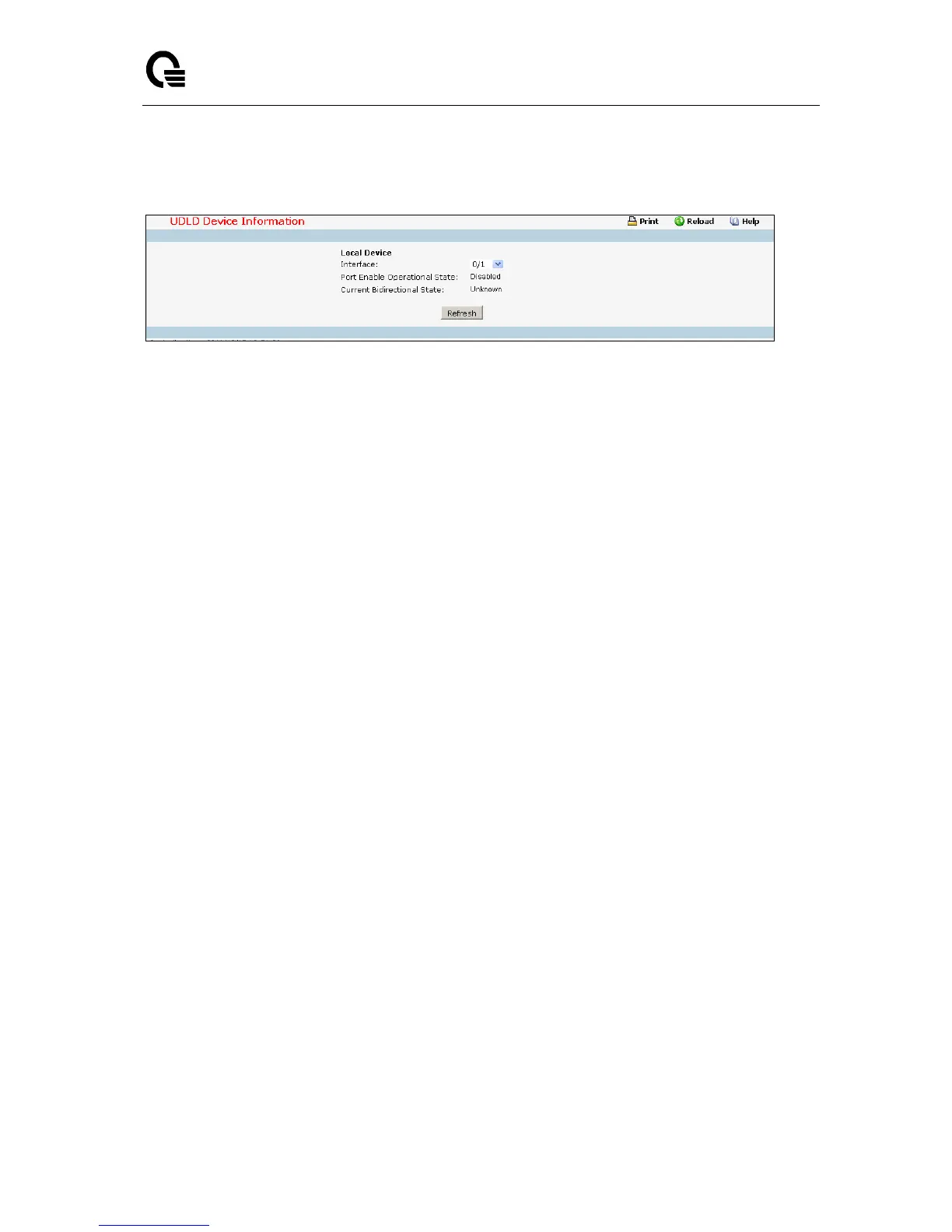

11.2.11.2 Viewing UDLD Device Information
Selection Criteria
Interface - Specifies the list of all the physical ports on which UDLD can be configured.
Non-Configurable Data
Port Enable Operational State - Specifies the Port Enable Operational State of the selected port.
Current Bidirectional State - Specifies the Bidirectional State of the selected port.
Current Operational State - Specifies the runtime Operational State of the selected port. This
section will be hidden if the port doesn't enable UDLD.
Current Message Interval - Specifies the runtime Message Interval of the selected port. This
section will be hidden if the port doesn't enable UDLD.
Current Timeout Interval - Specifies the runtime Timeout Interval of the selected port. This section
will be hidden if the port doesn't enable UDLD.
Remote Device - Specifies all the remote devices information as following.
Expiration time - Specifies the runtime Expiration Time of the remote entry.
Device ID - Specifies the Device Id associated with the remote system.
Device Name - Specifies the Device Name associated with the remote system.
Port ID - Specifies the Port Id associated with the remote system.
Neighbor echo device - Specifies the Device Id included in Echo TLV associated with the remote
system.
Neighbor echo port - Specifies the port Id included in Echo TLV associated with the remote system.
Message interval - Specifies the Message interval associated with the remote system.
Timeout interval - Specifies the Timeout interval associated with the remote system.
Command Buttons
Refresh - Updates the information on the page.
