_____________________________________________________________________________
LB9 User’s Guide 1119/1523
ï‚· Lease Time - This is the remaining Lease time for the Dynamic entries
ï‚· Page - Lists the Number of Pages the dynamic binding entries occupied. Select the Page
Number from this list to display the particular Page entries.
Command Buttons
Add - Adds DHCP snooping binding entry into the database.
Submit - Deletes selected static entries from the database.
ClearAll - Deletes all DHCP Snooping binding entries.
Refresh - Refresh the data on the screen with the present state of the data in the switch.

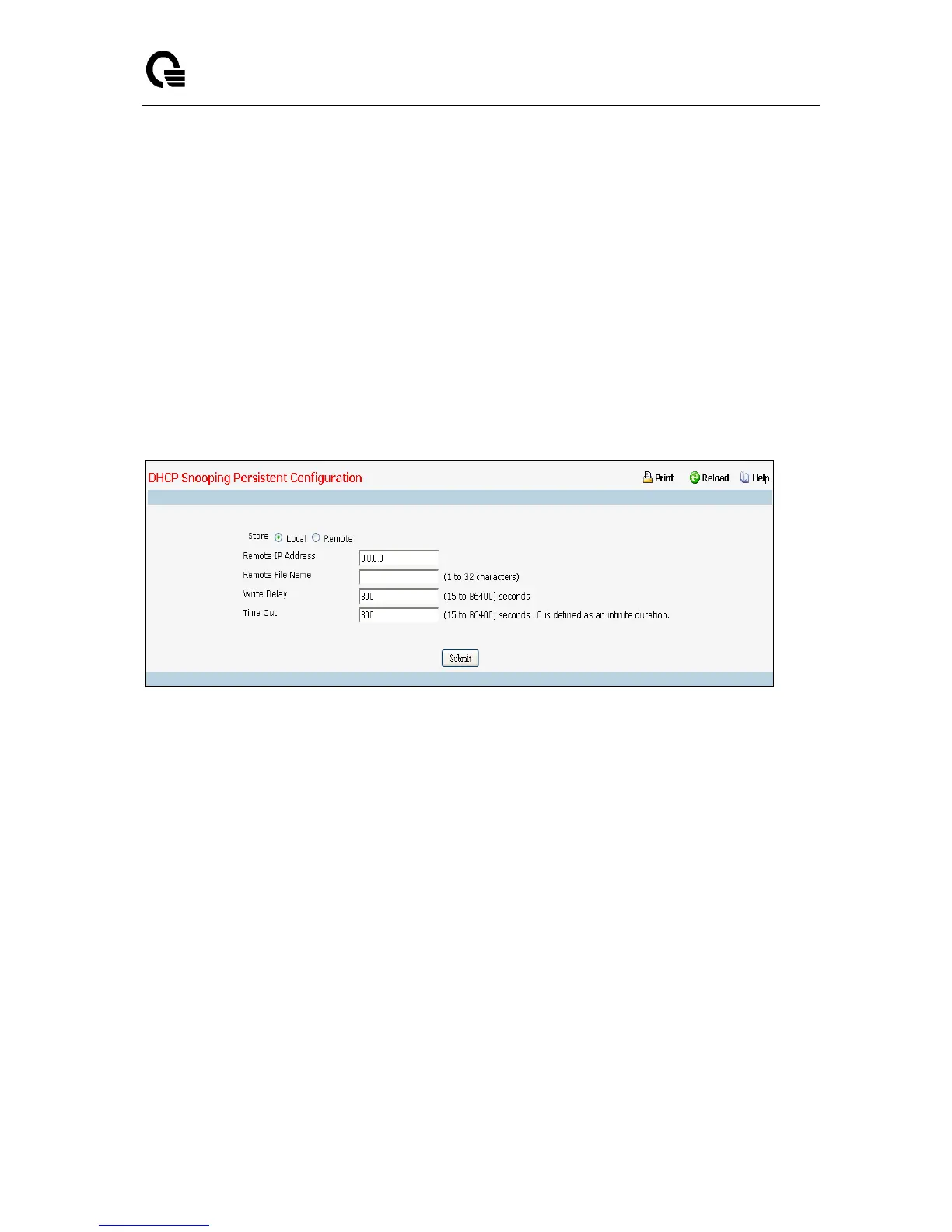

11.3.3.5 Configuring DHCP Snooping Persistent Configuration Page
Selection Criteria
Local - Check the Local Checkbox to disable the Remote objects like Remote File Name and
Remote IP.
Remote - Check the Remote Checkbox to Enable the Remote objects like Remote File Name and
Remote IP.
Configurable Data
Remote IP - Configures Remote IP Address on which the snooping database will be stored when
Remote checkbox is selected.
Remote File Name - Configures Remote file name to store the database when Remote checkbox is
selected.
Time Out - Configure DHCP snooping bindings store timeout. The range of Time Out is (15 to
86400). 0 is defined as an infinite duration.
Write Delay - Configures the maximum write time to write the database into local or remote. The
range of Write Delay is (15 to 86400).
Command Buttons
Submit - Applies the new configuration and causes the changes to take effect. These changes will
not be retained across a power cycle unless a save configuration is performed.
