LB9 User’s Guide 1132/1523

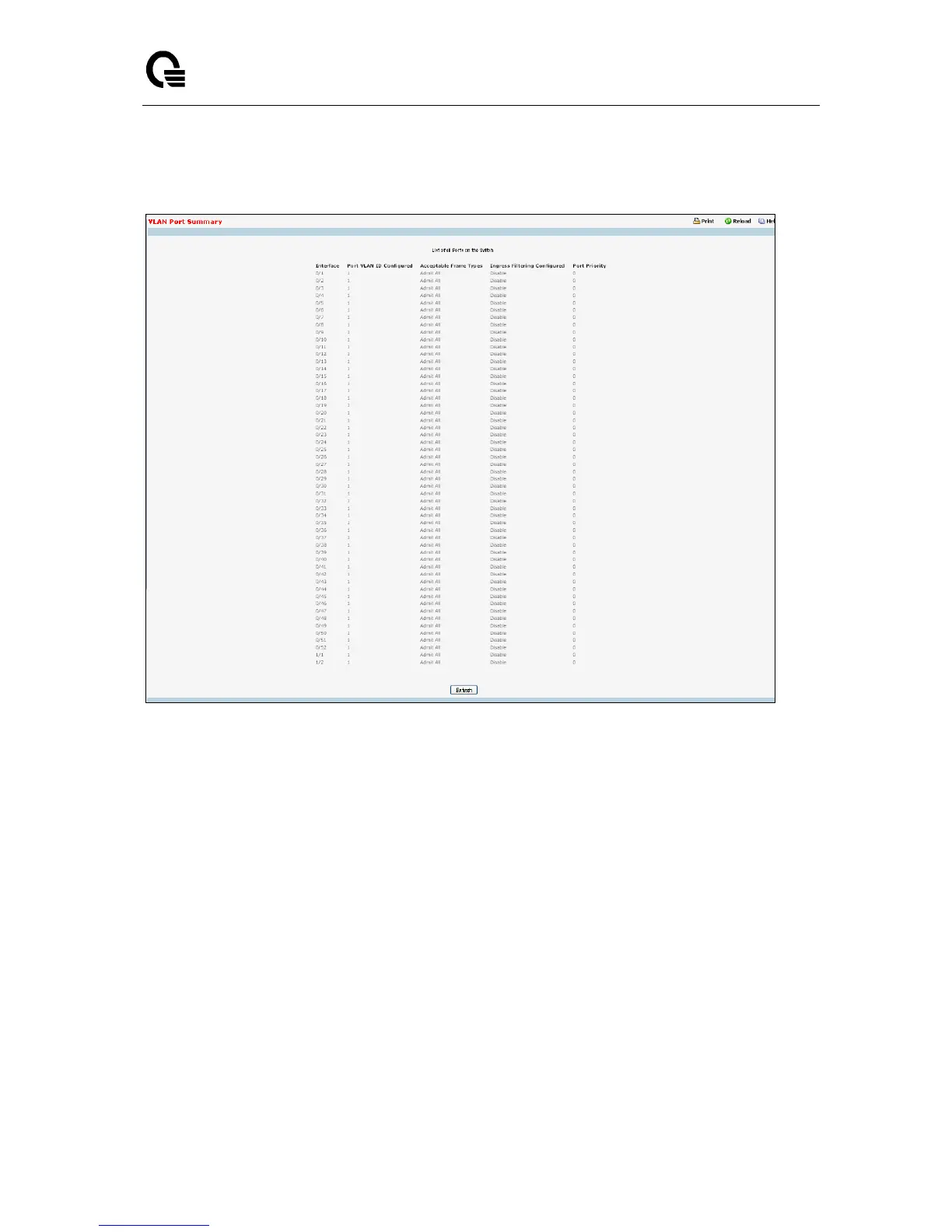

11.3.6.4 VLAN Port Summary
Non-Configurable Data
Interface - The interface.
Port VLAN ID Configured - The VLAN ID that this port will assign to untagged frames or priority
tagged frames received on this port.
Acceptable Frame Types - Specifies the types of frames that may be received on this port. The
options are 'VLAN only' and 'Admit All'. When set to 'VLAN only', untagged frames or priority tagged
frames received on this port are discarded. When set to 'Admit All', untagged frames or priority
tagged frames received on this port are accepted and assigned the value of the Port VLAN ID for this
port. With either option, VLAN tagged frames are forwarded in accordance to the 802.1Q VLAN
specification.
Ingress Filtering Configured - When enabled, the frame is discarded if this port is not a member of
the VLAN with which this frame is associated. In a tagged frame, the VLAN is identified by the VLAN
ID in the tag. In an untagged frame, the VLAN is the Port VLAN ID specified for the port that received
this frame. When disabled, all frames are forwarded in accordance with the 802.1Q VLAN bridge
specification. The factory default is disabled.
Port Priority - Specifies the default 802.1p priority assigned to untagged packets arriving at the port.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
