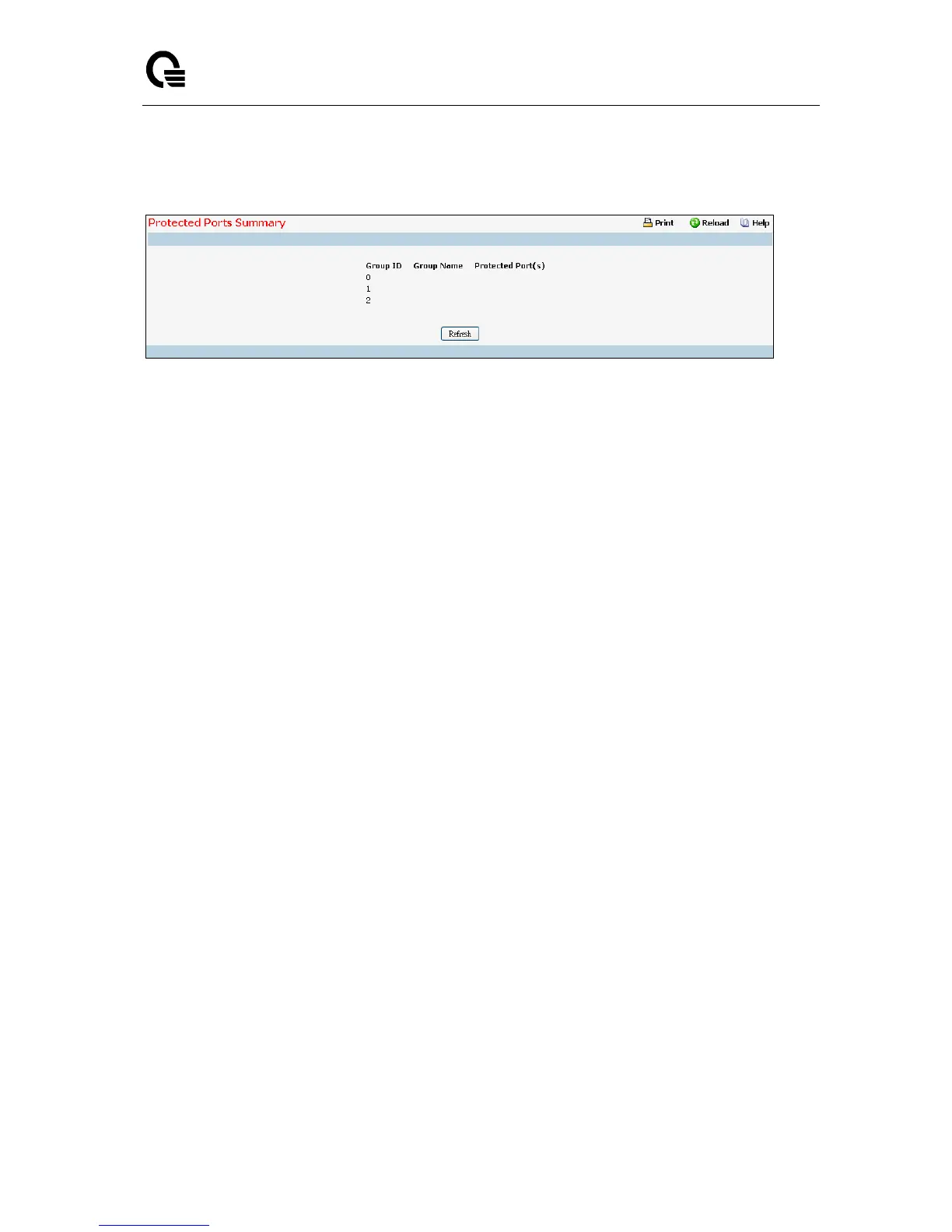

11.3.8.2 Protected Ports Summary Page
Non-Configurable Data
Group ID - The protected ports can be combined into a logical group. Traffic can flow between
protected ports belonging to different groups, but not within the same group. The valid range of the
Group ID is (0 to 2).
Group Name - Displays the alphanumeric string associated with a Group ID.
Protected Ports - The display list consists of all the protected ports. It is to be noted that no traffic
forwarding is possible between two protected ports of a same group, but traffic can flow between
protected ports of different groups.
Command Buttons
Refresh - Refresh the data on the screen to obtain data on current state of the ports.
