UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1152/1523
Submit - Update the switch with the values you entered. If you want the switch to retain the new
values across a power cycle you must perform a save.

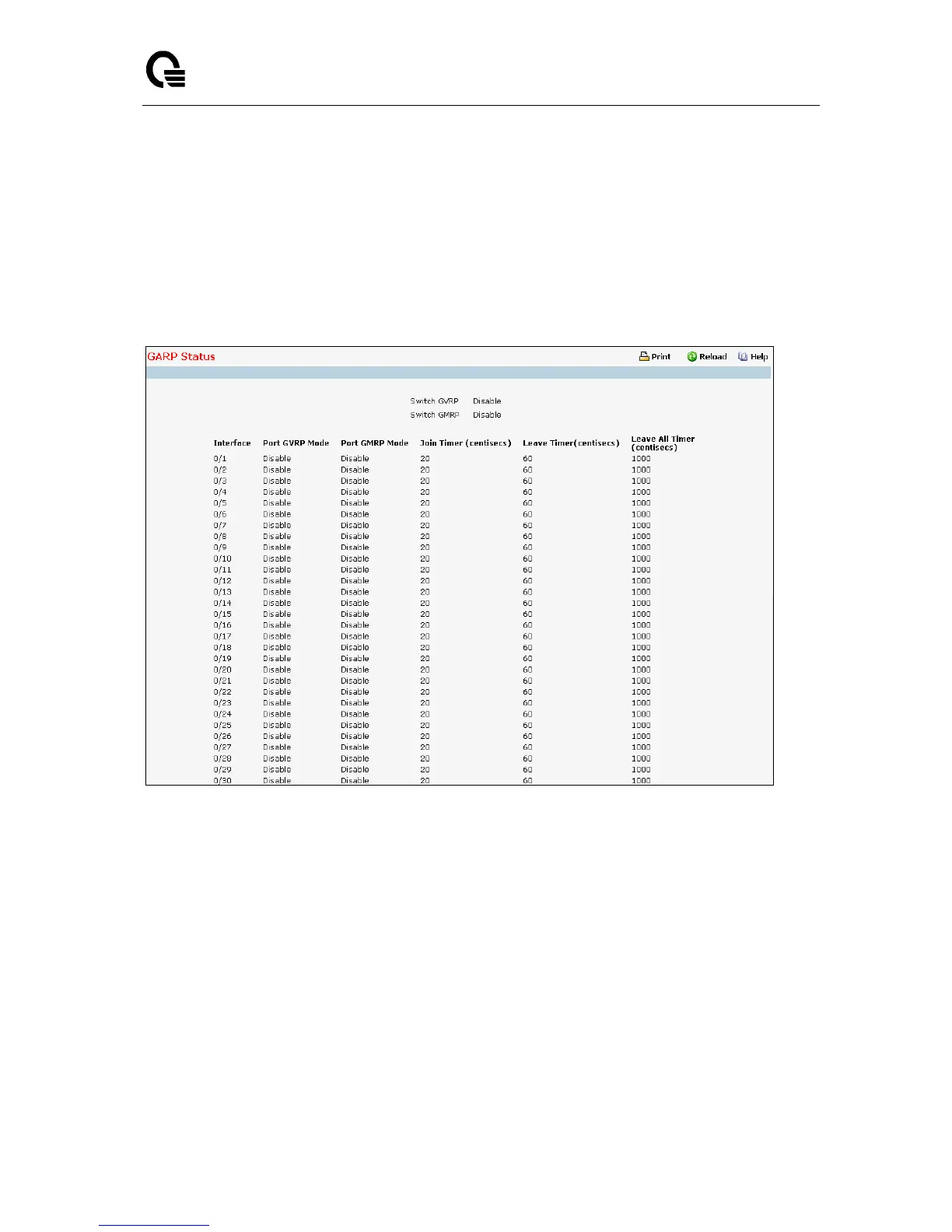

11.3.15.3 Viewing GARP Information Page
This screen shows the GARP Status for the switch and for the individual ports. Note that the timers are
only relevant when the status for a port shows as enabled.
Non-Configurable Data
Switch GVRP - Indicates whether the GARP VLAN Registration Protocol administrative mode for
this switch is enabled or disabled. The factory default is disabled.
Switch GMRP - Indicates whether the GARP Multicast Registration Protocol administrative mode for
this switch, enabled or disabled. The factory default is disabled.
Interface - Slot/Port of the interface.
Port GVRP Mode - Indicates whether the GVRP administrative mode for the port is enabled or
disabled. The factory default is disabled.
Port GMRP Mode - Indicates whether the GMRP administrative mode for the port is enabled or
disabled. The factory default is disabled.
Join Time (centiseconds) - Specifies the time between the transmission of GARP PDUs registering
(or re-registering) membership for a VLAN or multicast group in centiseconds. An instance of this
