LB9 User’s Guide 1155/1523

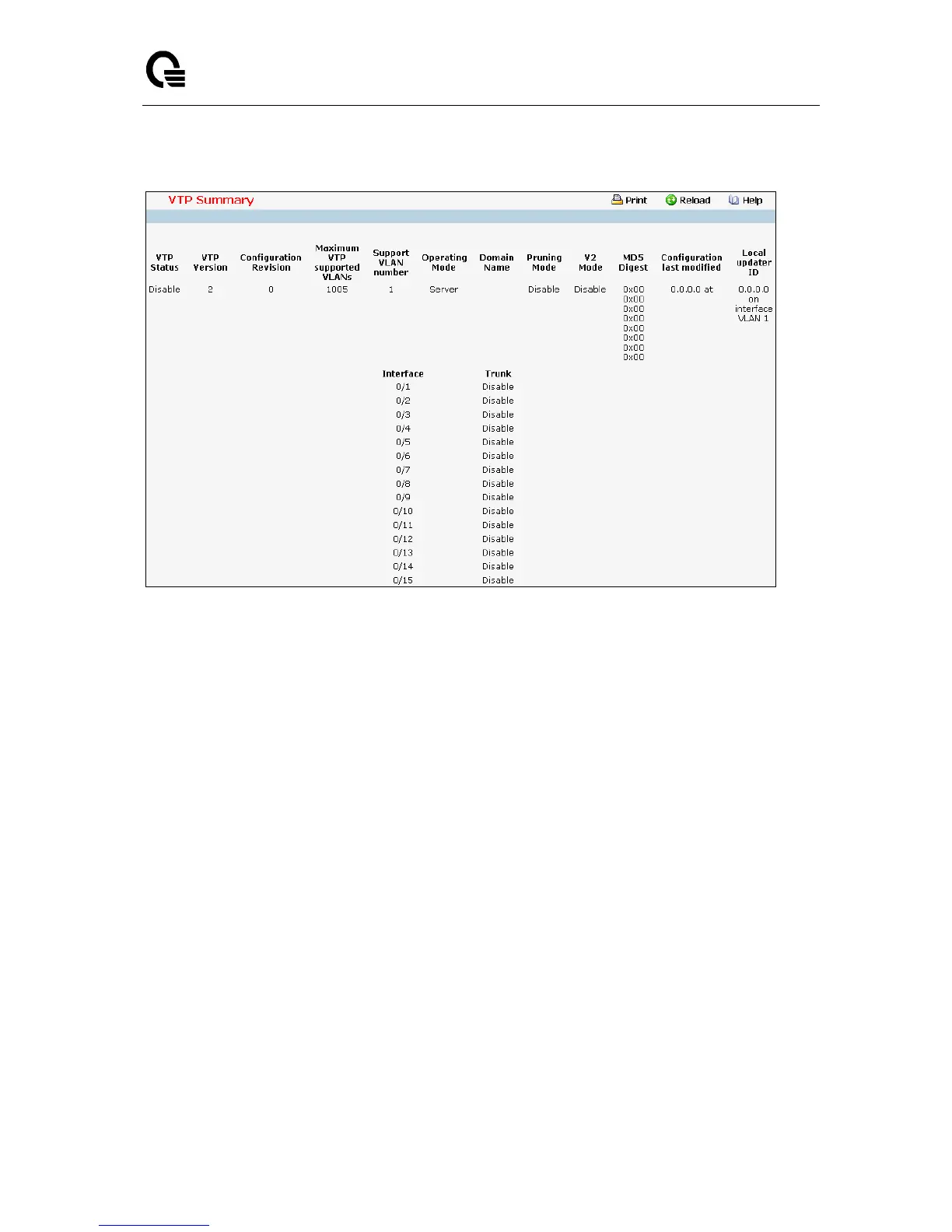

11.3.16.2 Viewing VTP Status Page
Non-configurable data
VTP Status - Displays the VTP Status.
VTP Version - Displays the VTP version operating on the switch.
Configuration Revision - Displays the current configuration revision number on this switch.
Maximum VTP supported VLANs - Maximum number of VLANs supported locally.
Support VLAN number - Number of existing VLANs.
Operating mode - Displays VTP operating mode.
Domain Name - Displays the name that identifies the administrative domain for the switch.
Pruning mode - Displays VTP pruning mode.
V2 Mode - Displays VTP version 2 mode.
MD5 Digest - Displays the checksum values for the VTP domain status.
Configuration last modified - Displays the time stamp of the last configuration modification and the
IP address of the switch that caused the configuration change to the database.
Local updater ID - Displays the Local updater ID for the VTP domain status.
Trunkport - Displays the VTP trunkport.
