LB9 User’s Guide 1157/1523

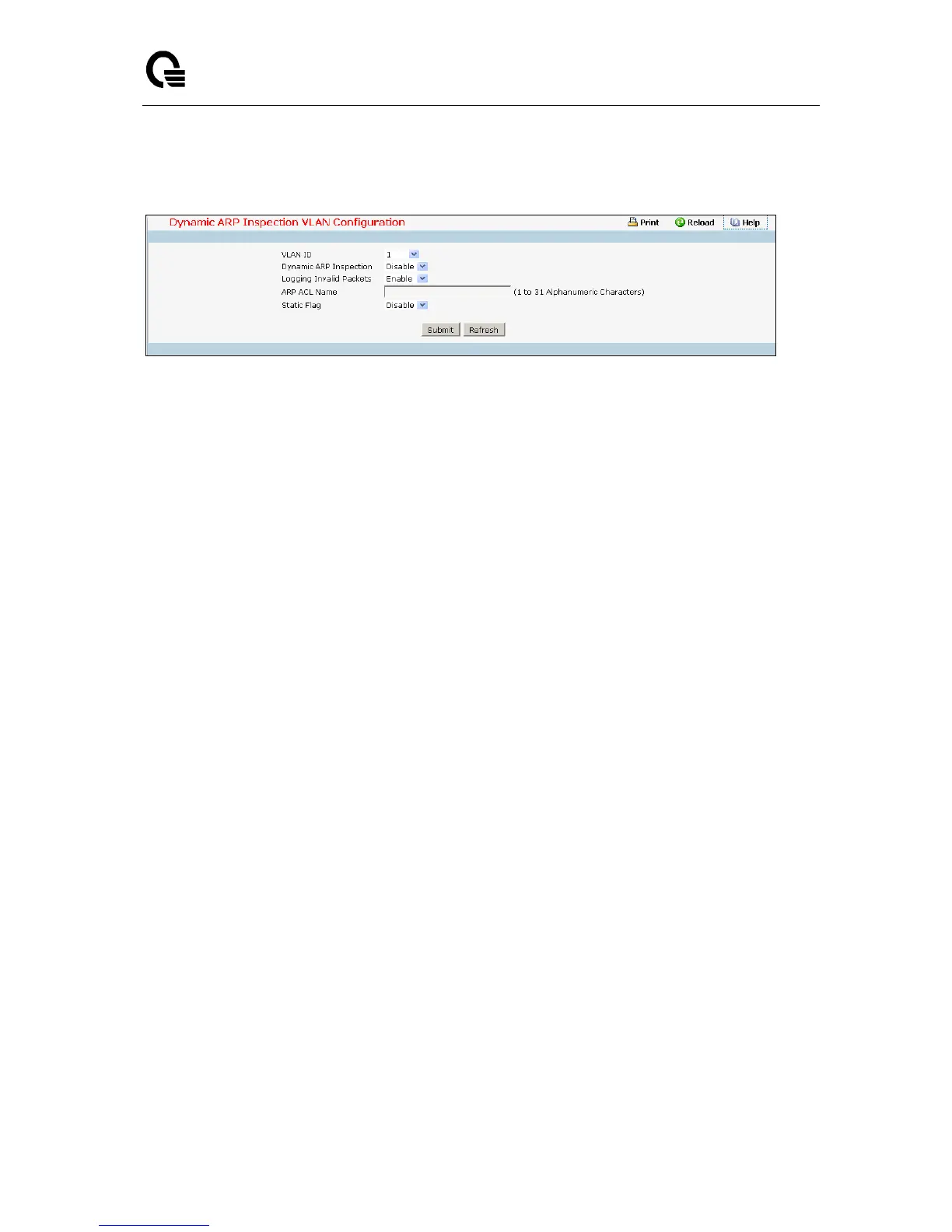

11.3.17.2 Configuring DAI VLAN Configuration Page
Selection Criteria
VLAN ID - Select the DAI Capable VLANs for which information has to be displayed or configured.
Configurable Data
Dynamic ARP Inspection - Indicates whether the Dynamic ARP Inspection is enabled on this
VLAN. If this object is set to 'Enable' Dynamic ARP Inspection is enabled. If this object is set to
'Disable', Dynamic ARP Inspection is disabled.
Logging Invalid Packets - Indicates whether the Dynamic ARP Inspection logging is enabled on
this VLAN. If this object is set to 'Enable' it will log the Invalid ARP Packets information. If this object
is set to 'Disable', Dynamic ARP Inspection logging is disabled.
ARP ACL Name - Name of ARP Access list. A vlan can be configured to use this ARP ACL
containing rules as the filter for ARP packet validation. The name can contain up to <1-31>
alphanumeric characters.
Static Flag - This flag is used to determine whether the ARP packet needs validation using the
DHCP snooping database in case ARP ACL rules don't match. If the flag is enabled then the ARP
Packet will be validated by the ARP ACL Rules only. If the flag is disabled then the ARP Packet
needs further validation by using the DHCP Snooping entries. The factory default is disable.
Command Buttons
Submit - Update the switch with the values you entered.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
