LB9 User’s Guide 1160/1523

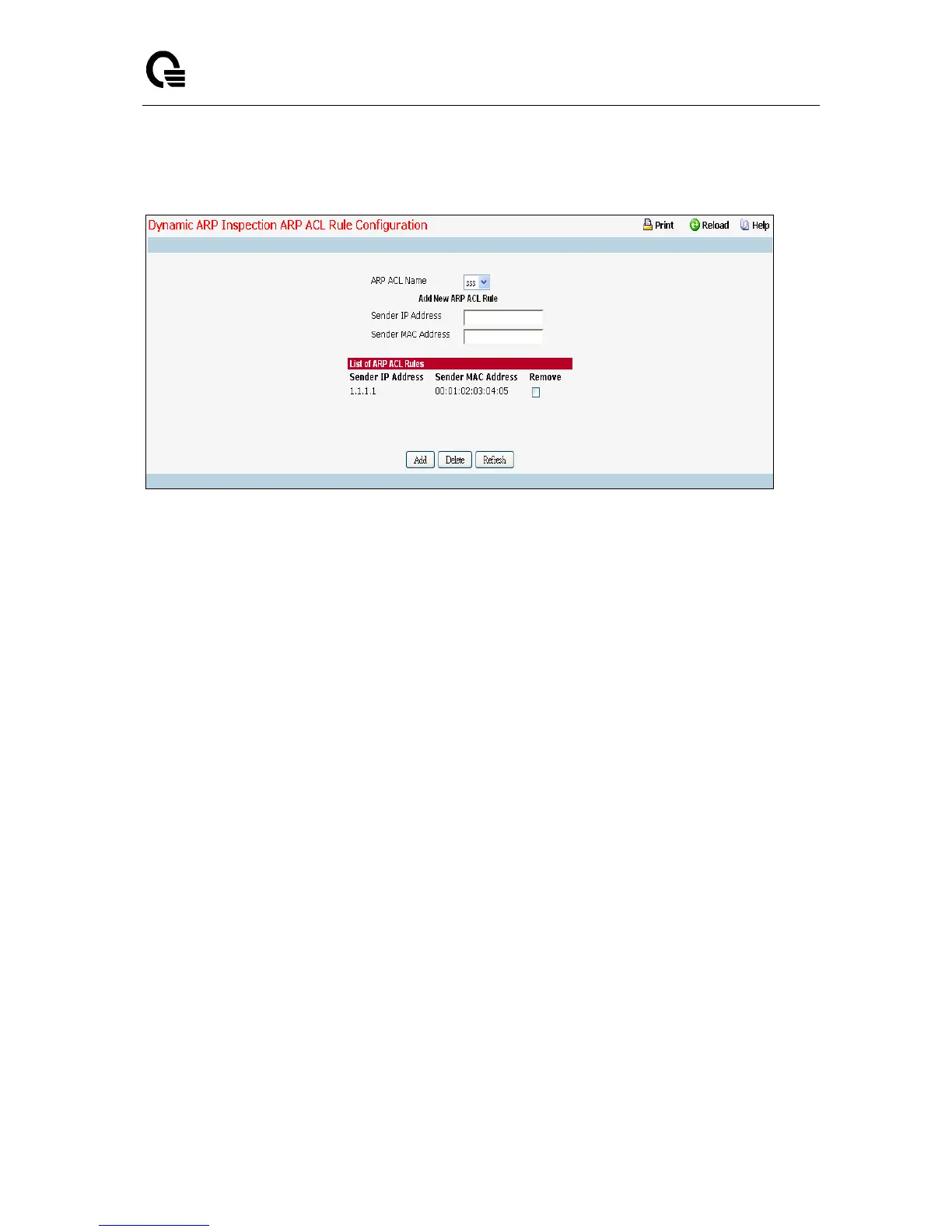

11.3.17.5 Configuring DAI ARP ACL Rule Configuration Page
Selection Criteria
ARP ACL Name - Select the ARP ACL for which information want to be displayed or configured.
Configurable Data
Sender IP Address - This is used to create new Rule for the Selected ARP ACL. This indicates
Sender IP address match value for the ARP ACL.
Sender MAC Address - This is used to create new Rule for the Selected ARP ACL. This indicates
Sender MAC address match value for the ARP ACL.
Remove - This is used to select the particular ACL Rules which you want to delete.
Command Buttons
Add - This is used to add new ACL Rule.
Submit - This is used to delete the entries selected using checkbox under Remove field.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
