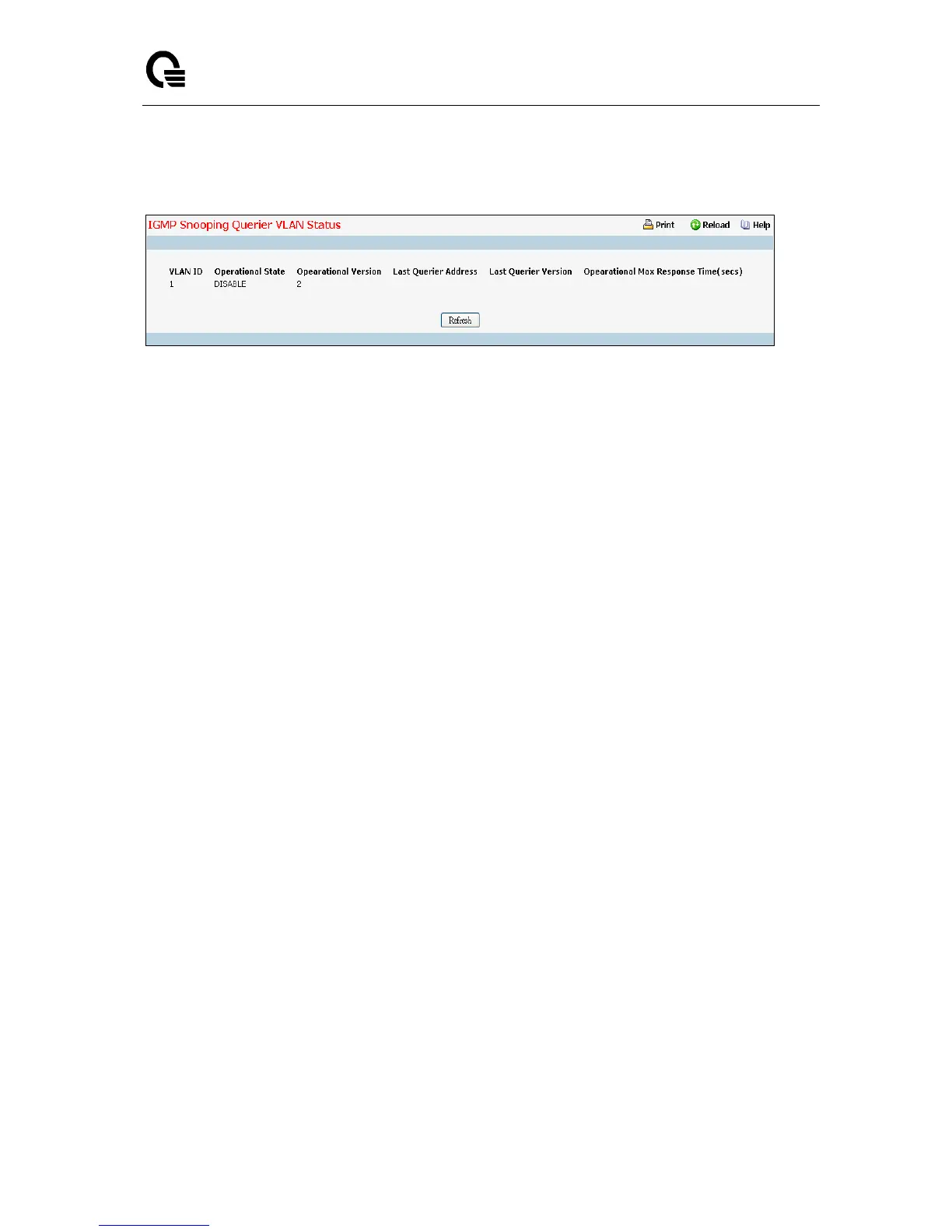

11.3.19.4 IGMP Snooping Querier VLAN Status Page
Non-Configurable Data
VLAN ID - Specifies the VLAN ID on which IGMP Snooping Querier is administratively enabled and
VLAN exists in the VLAN database.
Operational State - Specifies the operational state of the IGMP Snooping Querier on a VLAN. It can
be in any of the following states:
Querier - Snooping switch is the Querier in the VLAN. The Snooping switch will send out
periodic queries with a time interval equal to the configured querier query interval. If the snooping
switch sees a better querier in the VLAN, it moves to non-querier mode.
Non-Querier - Snooping switch is in Non-Querier mode in the VLAN. If the querier expiry interval
timer is expires, the snooping switch will move into querier mode.
Disabled - Snooping Querier is not operational on the VLAN. The Snooping Querier moves to
disabled mode when IGMP Snooping is not operational on the VLAN or when the querier
address is not configured or the network management address is also not configured.
Operational Version - Displays the operational IGMP protocol version of the querier.
Last Querier Address - Displays the IP address of the last querier from which a query was snooped
on the VLAN.
Last Querier Version - Displays the IGMP protocol version of the last querier from which a query
was snooped on the VLAN.
Operational Max Response Time - Displays maximum response time to be used in the queries that
are sent by the Snooping Querier.
Command Buttons
Refresh - Reload the information on the page.
