LB9 User’s Guide 1185/1523

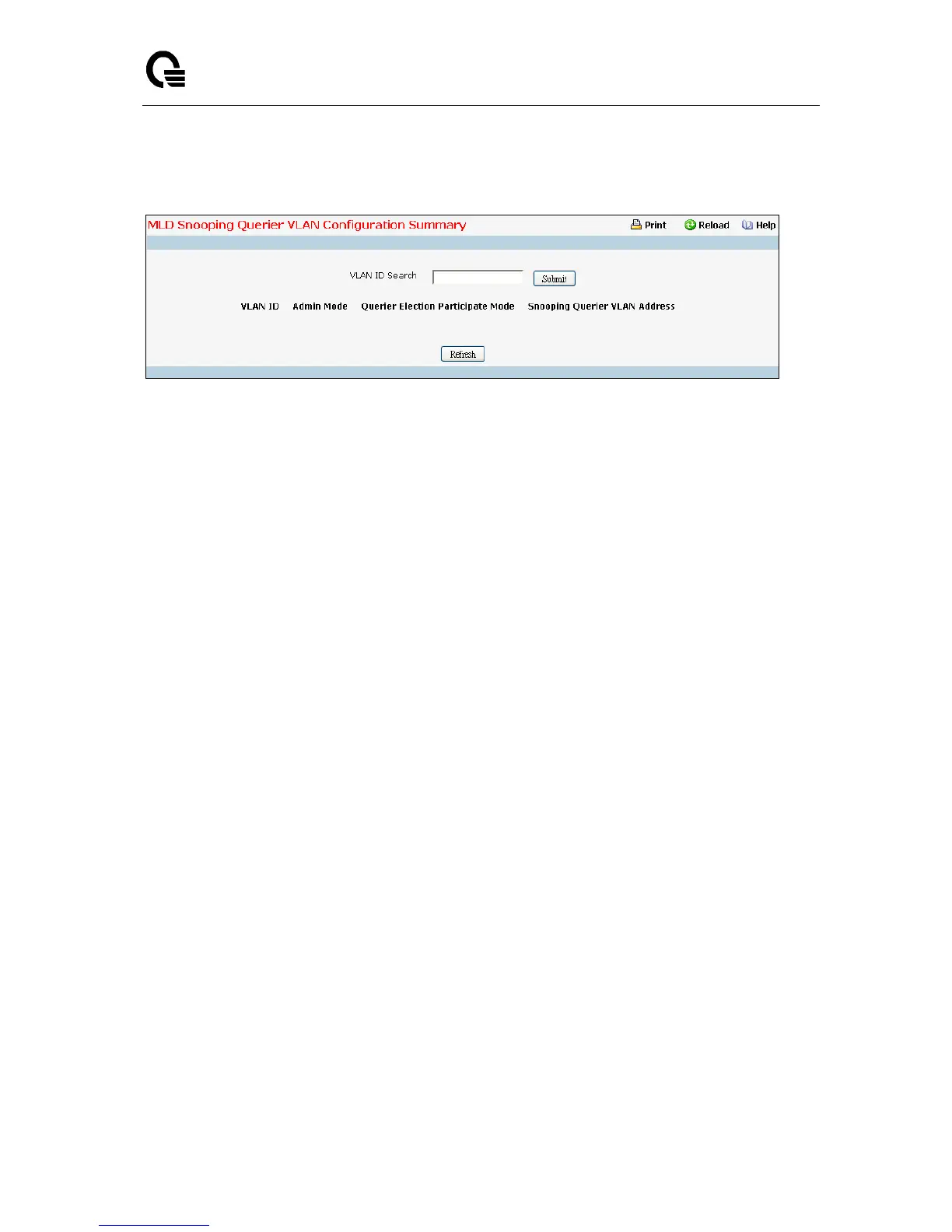

11.3.21.3 Configuring MLD Snooping VLAN Configuration Summary Page
Configurable Data
VLAN ID Search - Enter VLAN ID, and then click on the search button. If the record exists, that entry
will be displayed. An exact match is required.
Non-Configurable Data
VLAN ID - Specifies the VLAN ID on which MLD Snooping Querier is administratively enabled.
Admin Mode - Display the administrative mode for MLD Snooping for the switch.
Querier Election Participate Mode - Displays the querier election participate mode on the VLAN.
When this mode is disabled, up on seeing a query of the same version in the VLAN, the snooping
querier move to non querier state. Only when this mode is enabled, the snooping querier will
participate in querier election where in the least IP address will win the querier election and operates
as the querier in that VLAN. The other querier moves to non-querier state.
Snooping Querier VLAN Address - Displays the Snooping Querier Address to be used as source
address in periodic MLD queries sent on the specified VLAN.
Command Buttons
Search - Search for the specified VLAN ID.
Refresh - Reload the information on the page.
