LB9 User’s Guide 1188/1523

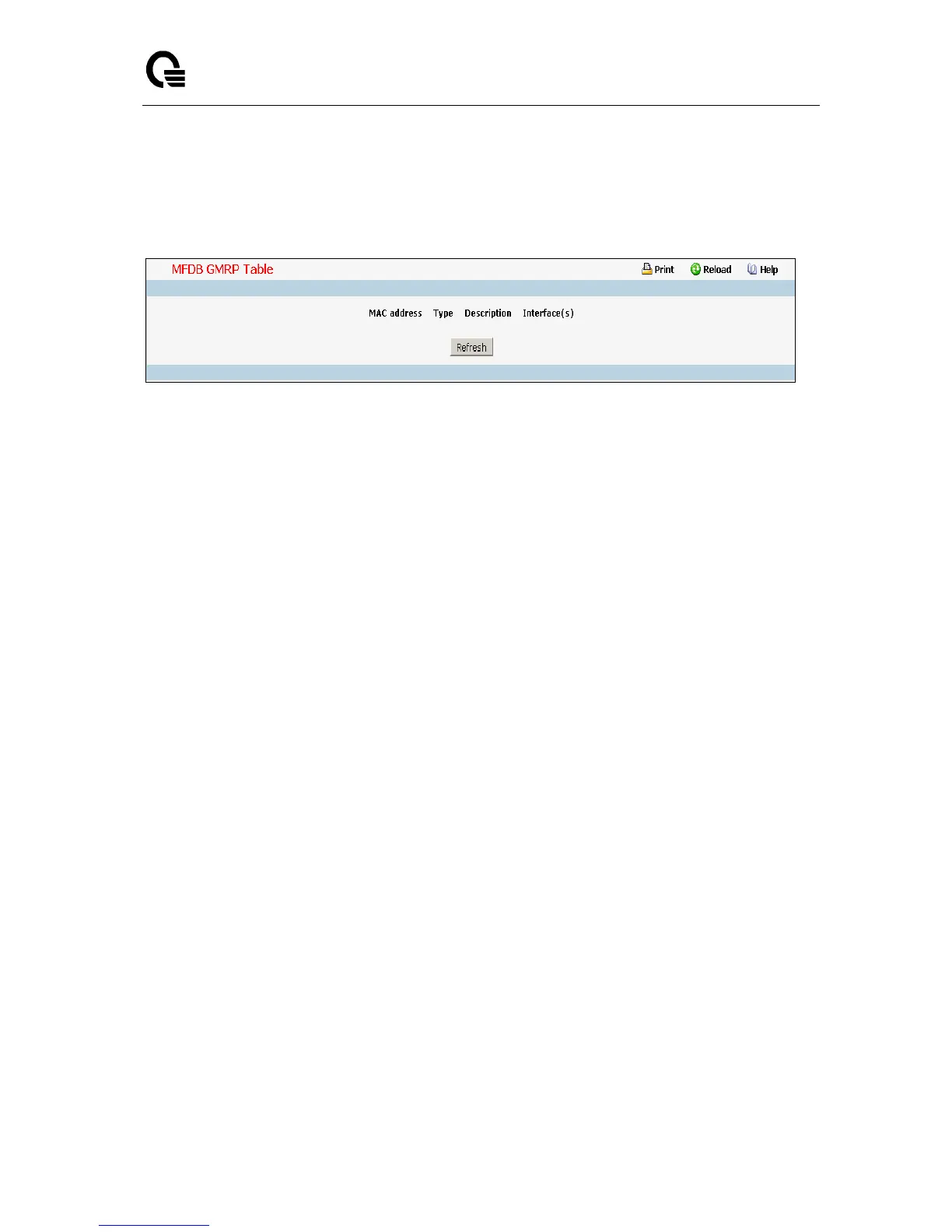

11.3.22.2 Viewing GMRP MFDB Table Page
This screen will display all of the entries in the Multicast Forwarding Database that were created for the
GARP Multicast Registration Protocol.
Non-Configurable Data
MAC Address - A VLAN ID - multicast MAC address pair for which the switch has forwarding and/or
filtering information. The format is 8 two-digit hexadecimal numbers that are separated by colons, for
example 00:01:23:45:67:89:AB:CD.
Type - This displays the type of the entry. Static entries are those that are configured by the user.
Dynamic entries are added to the table as a result of a learning process or protocol.
Description - The text description of this multicast table entry. Possible values are Management
Configured, Network Configured, and Network Assisted.
Interface(s) - The list of interfaces that are designated for forwarding (Fwd:) and filtering (Flt:).
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
