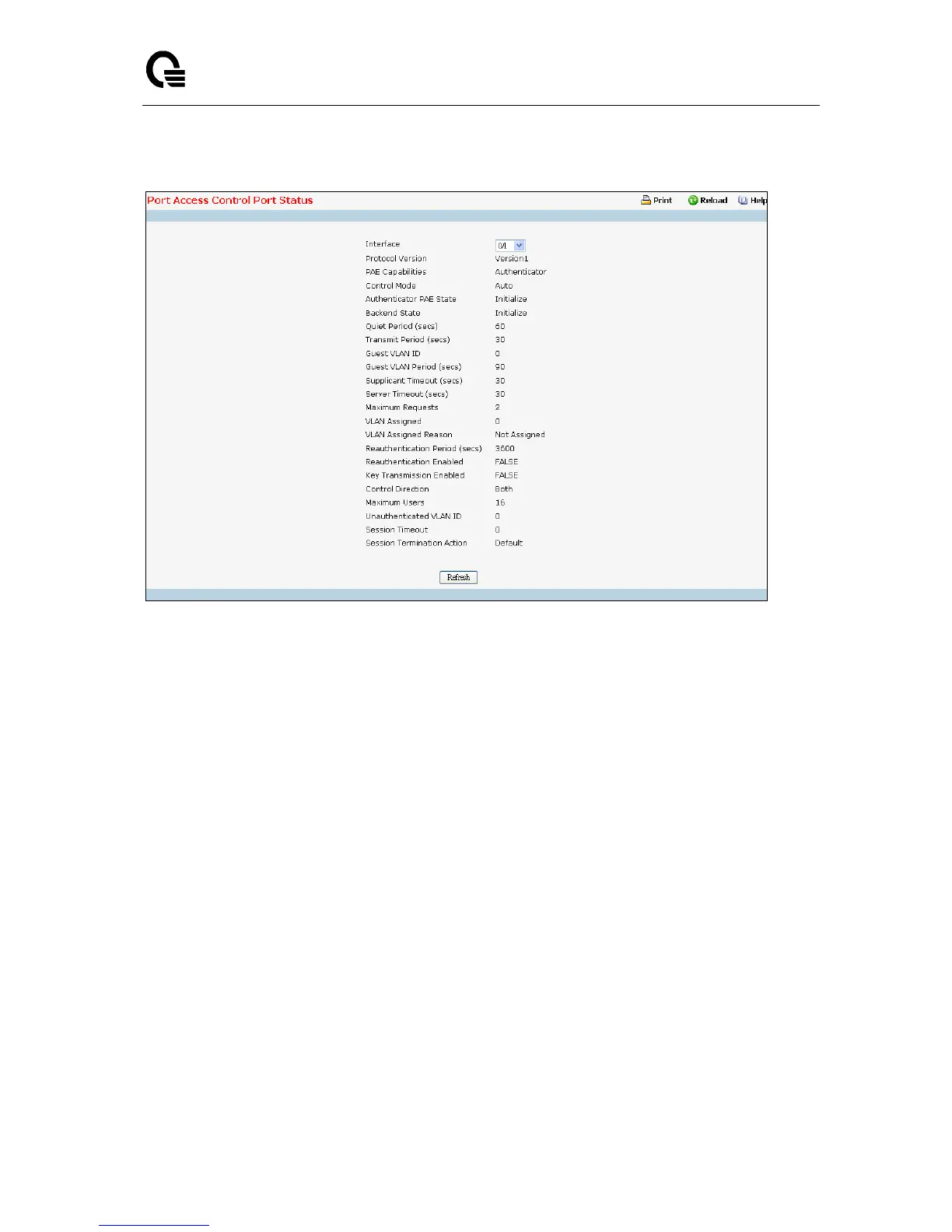

11.4.1.5 Viewing each Port Access Control Configuration Information Page
Selection Criteria
Interface - Selects the port to be displayed. When the selection is changed, a screen refresh will
occur causing all fields to be updated for the newly selected port. All physical interfaces are valid.
Non-Configurable Data
Protocol Version - This field displays the protocol version associated with the selected port. The
only possible value is 1, corresponding to the first version of the 802.1x specification. This field is not
configurable.
Control Mode - Displays the configured control mode for the specified port. Options are:
force unauthorized: The authenticator port access entity (PAE) unconditionally sets the
controlled port to unauthorized
force authorized: The authenticator PAE unconditionally sets the controlled port to authorized.
auto: The authenticator PAE sets the controlled port mode to reflect the outcome of the
authentication exchanges between the supplicant, authenticator, and the authentication server.
mac based: The authenticator PAE sets the controlled port mode to reflect the outcome of the
authentication exchanges between the supplicant, authenticator, and the authentication server
on a per supplicant basis.
PAE Capabilities - This field displays the port access entity (PAE) functionality of the selected port.
Possible values are "Authenticator" or "Supplicant". This field is not configurable.
Authenticator PAE State - This field displays the current state of the authenticator PAE state
machine. Possible values are:
"Initialize"
