UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1225/1523

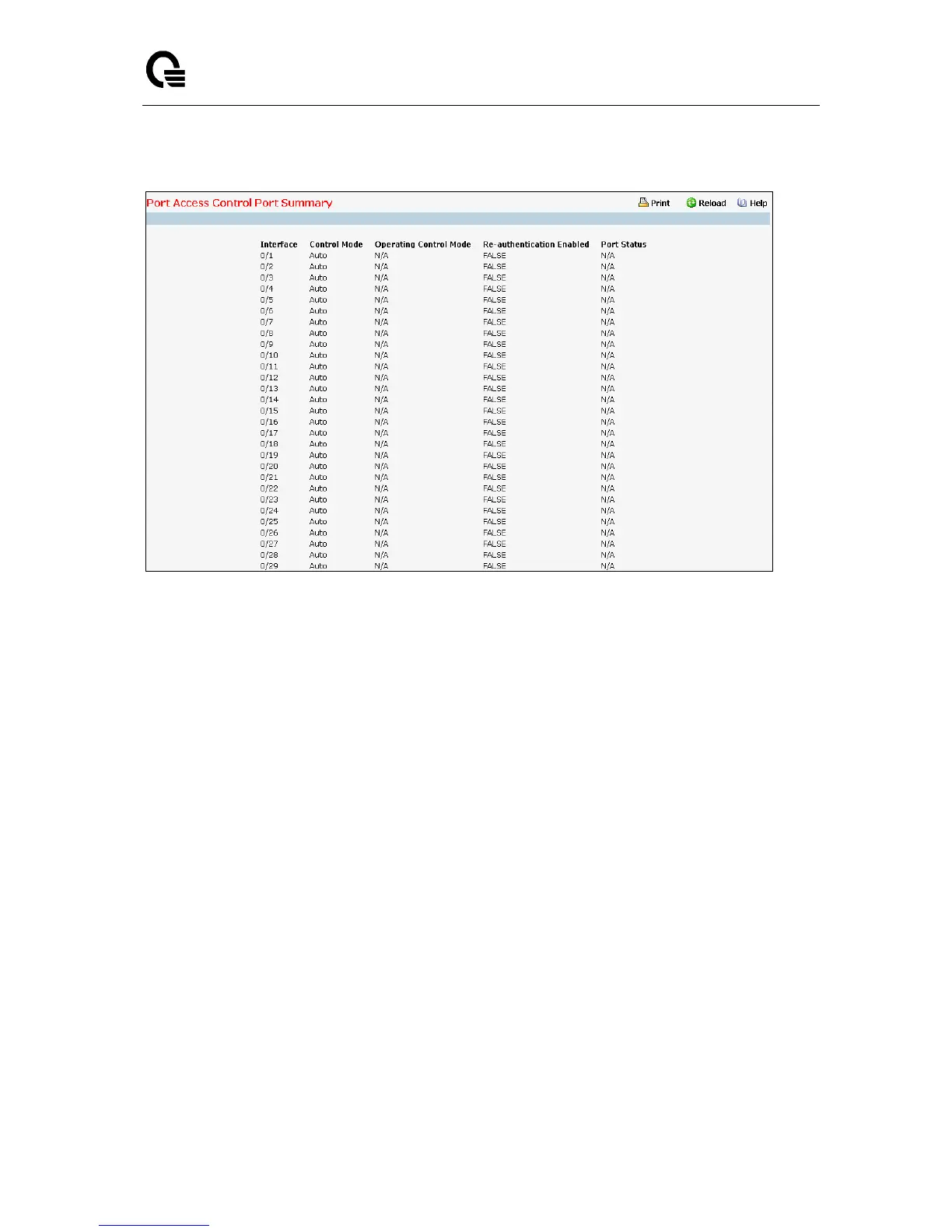

11.4.1.6 Viewing Access Control Summary Page
Non-Configurable Data
Interface - Specifies the port whose settings are displayed in the current table row.
Control Mode - This field indicates the configured control mode for the port. Possible values are:
 Force Unauthorized: The authenticator port access entity (PAE) unconditionally sets the
controlled port to unauthorized.
 Force Authorized: The authenticator PAE unconditionally sets the controlled port to
authorized.
 Auto: The authenticator PAE sets the controlled port mode to reflect the outcome of the
authentication exchanges between the supplicant, authenticator, and the authentication
server.
 mac based: The authenticator PAE sets the controlled port mode to reflect the outcome of
the authentication exchanges between the supplicant, authenticator, and the authentication
server on a per supplicant basis.
Operating Control Mode - This field indicates the control mode under which the port is actually
operating. Possible values are:
 ForceUnauthorized
 ForceAuthorized
 Auto
 mac based
 N/A: If the port is in detached state it cannot participate in port access control.
