LB9 User’s Guide 1240/1523

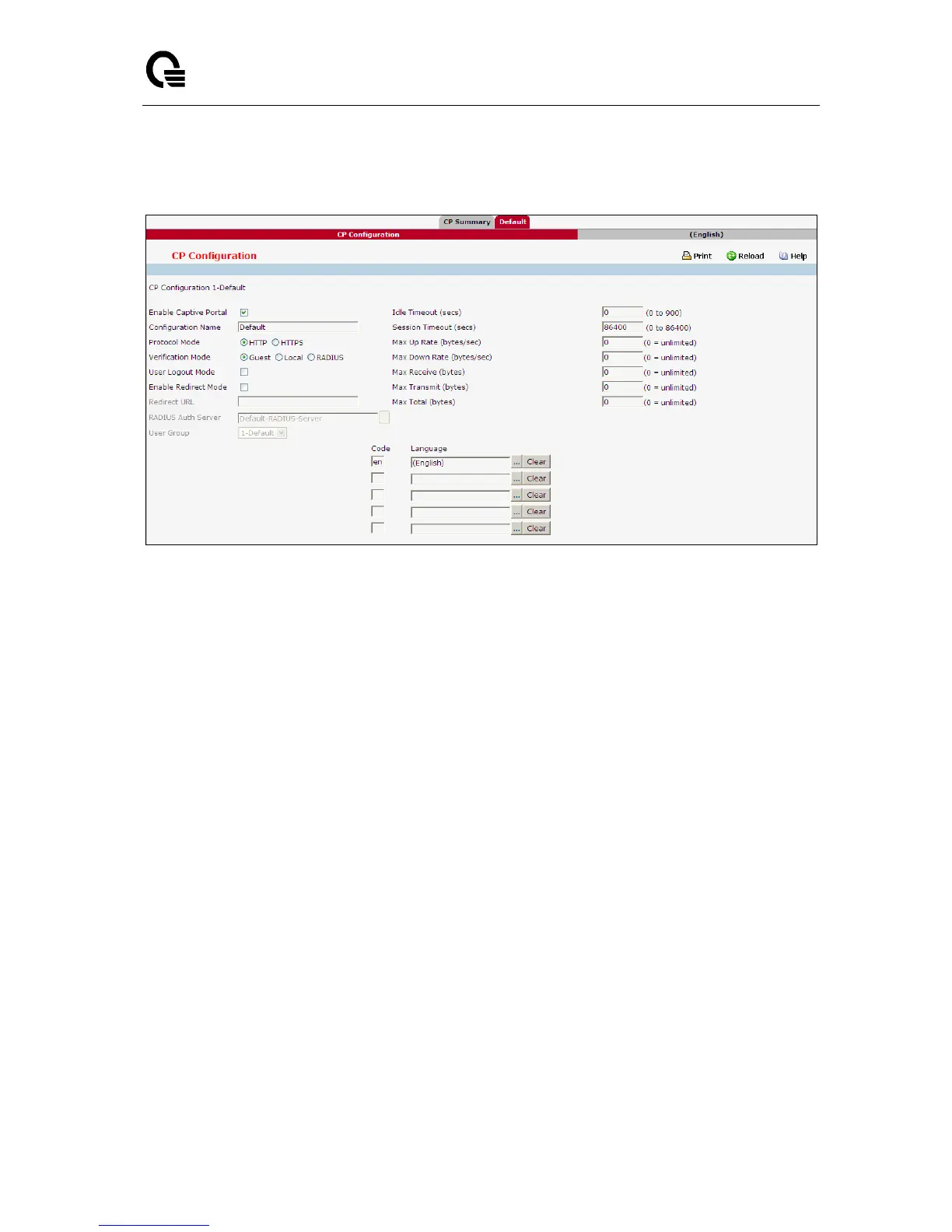

11.4.3.2 Captive Portal Configuration Page
Configurable Data
Enable Captive Portal - Select the check box to enable the CP. Clear the check box to disable it.
Configuration Name - This field allows you to change the name of the portal added from the CP
Summary page.
Protocol Mode - Choose whether to use HTTP or HTTPs as the protocol for the portal to use during
the verification process.
‧ HTTP: Does not use encryption during verification
‧ HTTPS: Uses the Secure Sockets Layer (SSL), which requires a certificate to provide
encryption. The certificate is presented to the user at connection time.
Verification Mode - Select the mode for the CP to use to verify clients:
‧ Guest: The user does not need to be authenticated by a database.
‧ Local: The switch uses a local database to authenticated users.
‧ RADIUS: The switch uses a database on a remote RADIUS server to authenticate users.
User Logout Mode- Select this option to allow an authenticated client to deauthenticate from the
network. If this option is clear or the user does not specifically request logout, the client connection
status remains authenticated until the CP deauthenticates the user, for example by reaching the idle
timeout or session timeout values.
Enable Redirect Mode- Select this option to specify that the CP should redirect the newly
authenticated client to the configured URL. If this option is clear, the user sees the locale-specific
welcome page after a successful verification.
Redirect URL- Specify the URL to which the newly authenticated client is redirected if the URL
Redirect Mode is enabled.
RADIUS Auth Server- If the verification mode is RADIUS, click the ... button and select the name of
the RADIUS server used for client authentications.
