UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1275/1523

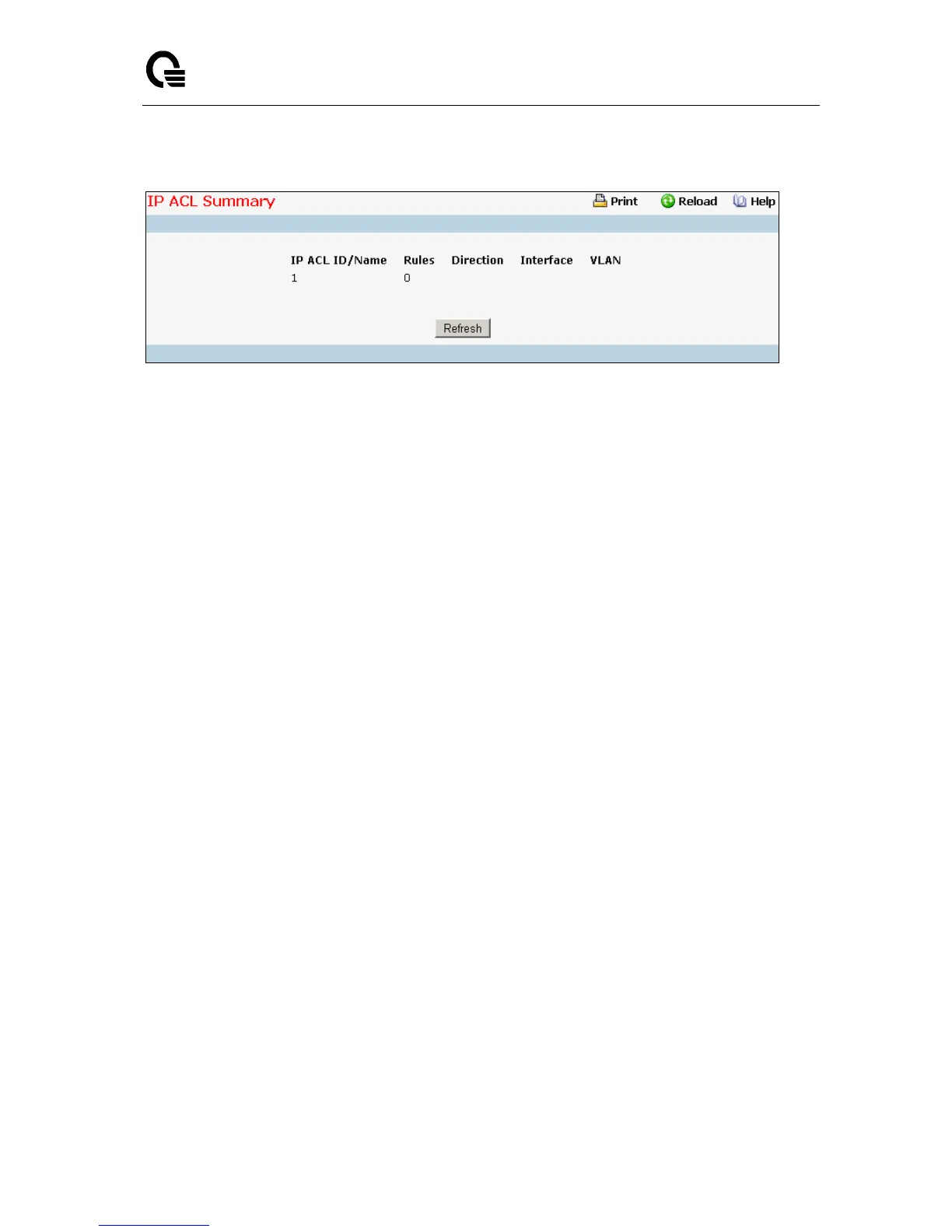

11.4.7.2 Viewing IP Access Control List Summary Page
Non-Configurable Data
IP ACL ID/Name - The IP ACL identifier.
Rules - The number of rules currently configured for the IP ACL.
Direction - The direction of packet traffic affected by the IP ACL.
Direction can only be:
 Inbound
 Outbound
Interface - The interfaces to which the IP ACL applies.
VLAN(s) - VLAN(s) to which the IP ACL applies.
Command Buttons
Refresh - Refresh the data on the screen to the latest state.
