LB9 User’s Guide 1287/1523

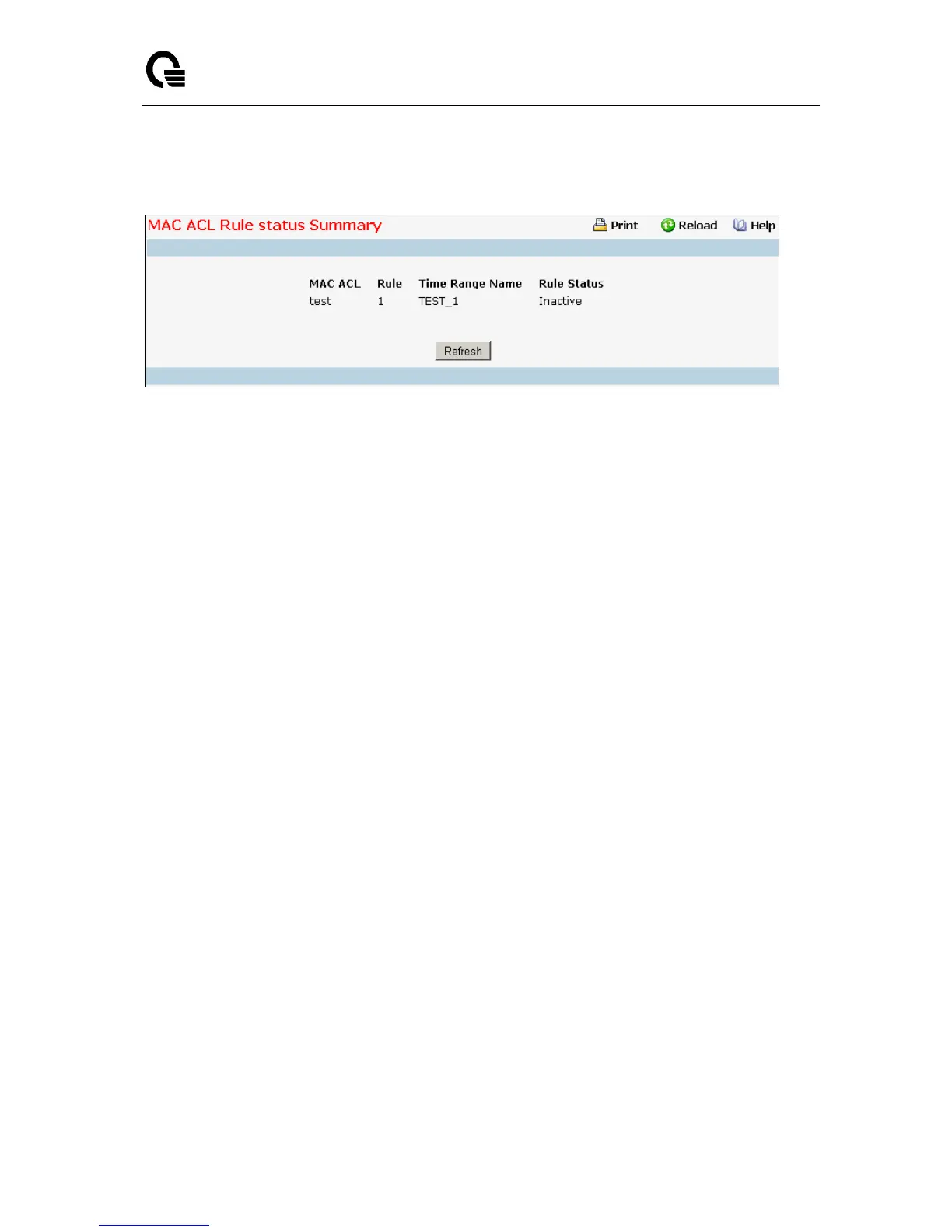

11.4.7.11 MAC ACL Rule status Summary Page
Non-Configurable Data
MAC ACL Name – MAC ACL identifier.
Rule - Rule number.
Time Range Name - Indicates the name of the time range associated to the rule.
Rule Status - Indicates the status of the rule. Rule status is shown only for the rules which are time
based. For non time based rules, rule status is considered to be active.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
