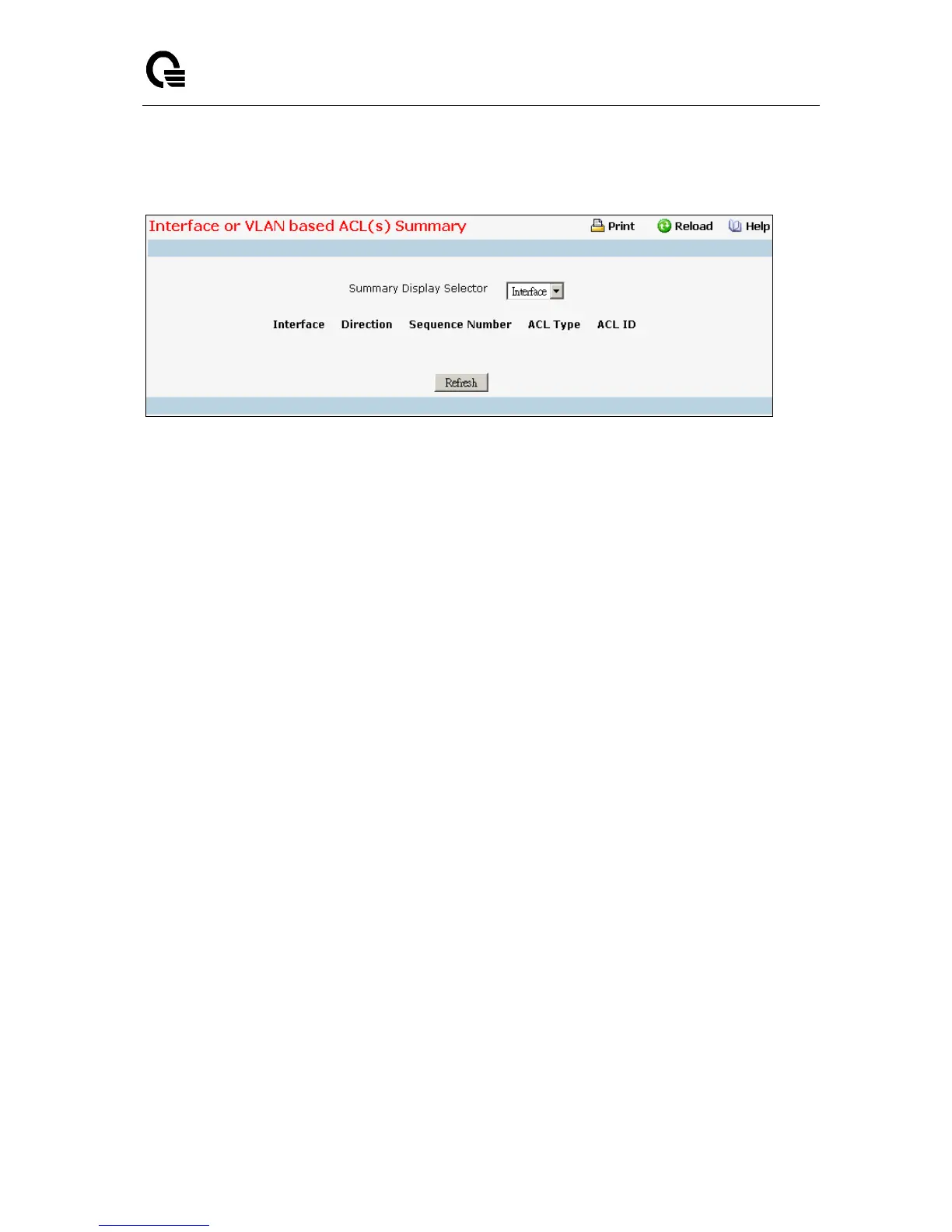

11.4.7.15 Access Control List VLAN ACL Summary Page
Non-Configurable Data
Summary Display Selector - Select interface or VLAN to display summary. By default summary of
Interface-based ACL(s) is displayed.
Interface - The interfaces to which the IP ACL applies.
VLAN(s) - VLAN(s) to which the IP ACL applies.
Direction - The direction of packet traffic affected by the IP ACL.
Direction can only be one of the following:
ï‚· Inbound
ï‚· Outbound
ACL Type - Displays the type of ACL assigned to selected VLAN and direction.
ACL ID - Displays the ACL Number(in case of IP ACL) or ACL Name(in case of IPv6 ACL and MAC
ACL) identifying the ACL assigned to selected VLAN and direction.
Sequence Number - Displays the Sequence Number signifying the order of specified ACL relative
to other ACLs assigned to selected VLAN and direction.
Command Buttons
Refresh - Refresh the data on the screen to the latest state.
