LB9 User’s Guide 1311/1523

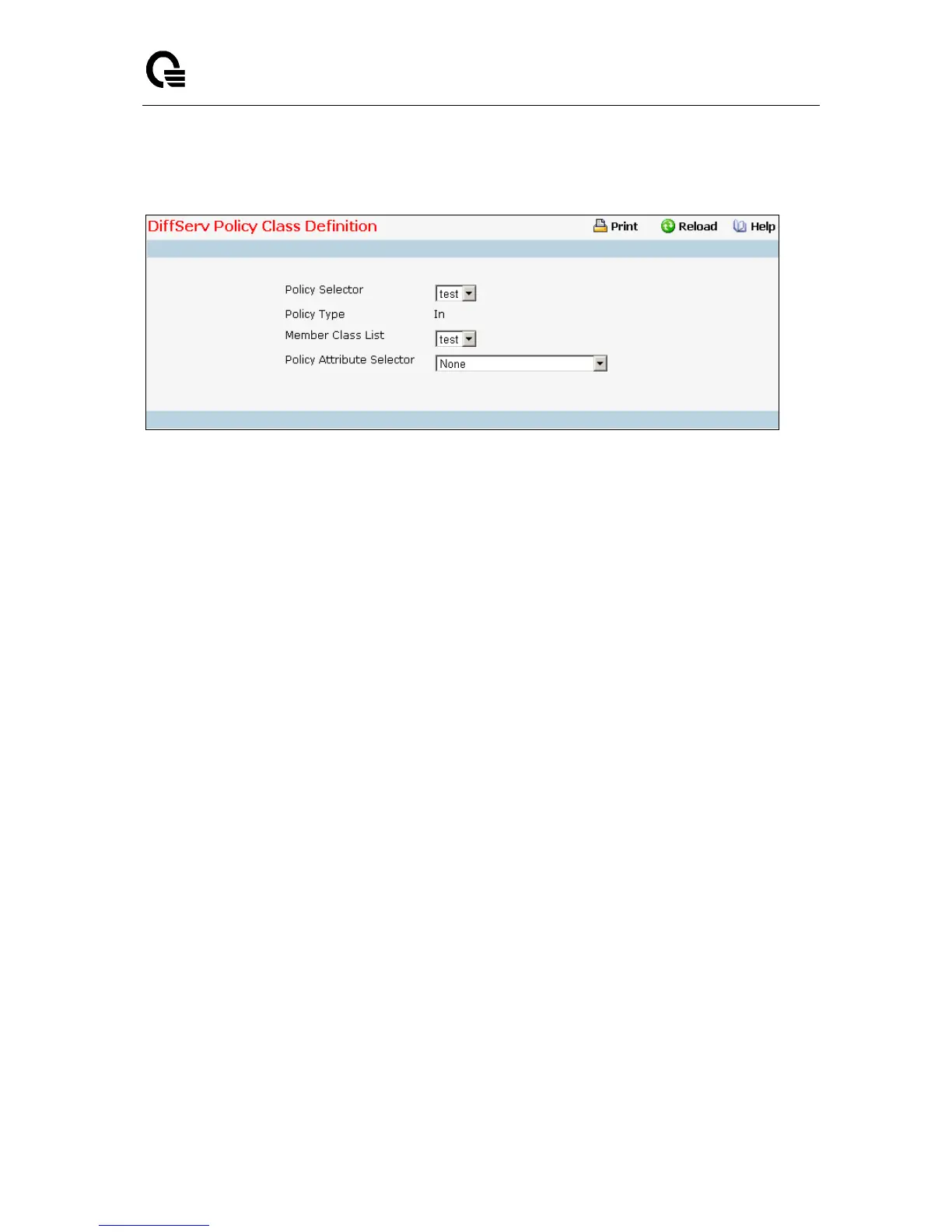

11.5.1.6 Configuring DiffServ Policy Class Definition Page
Selection Criteria
Policy Selector - This lists all the existing DiffServ policy names, from which one can be selected.
Member Class List - This lists all existing DiffServ classes currently defined as members of the
specified Policy, from which one can be selected. This list is automatically updated as a new class is
added to or removed from the policy.
Policy Attribute Selector - This lists all attributes supported for this type of policy, from which one
can be selected.
Non-Configurable Data
Policy Type - Displays type of the configured policy.
Command Buttons
Configure Selected Attribute - Only one configuration criterion can be specified per invocation of
this button. Based on the selected configuration criterion, an individual configuration screen is
provided.
