LB9 User’s Guide 1322/1523
VLAN Priority Tag - If using VLAN Priority Tag, assign a VLAN Priority Tag value to iSCSI session
packets
Remark - Use to either Enable or Disable the Remark mode. The default is Disable. Enabling
Remark allows the packets to be updated with IP-DSCP values. Remarking packets with priority data
provides special QoS treatment as the packets continue through the network
Configurable Data
iSCSI Aging Time - Set the number of minutes a session can be inactive prior to removal.
Command Buttons
Submit - Send the updated configuration to the switch.

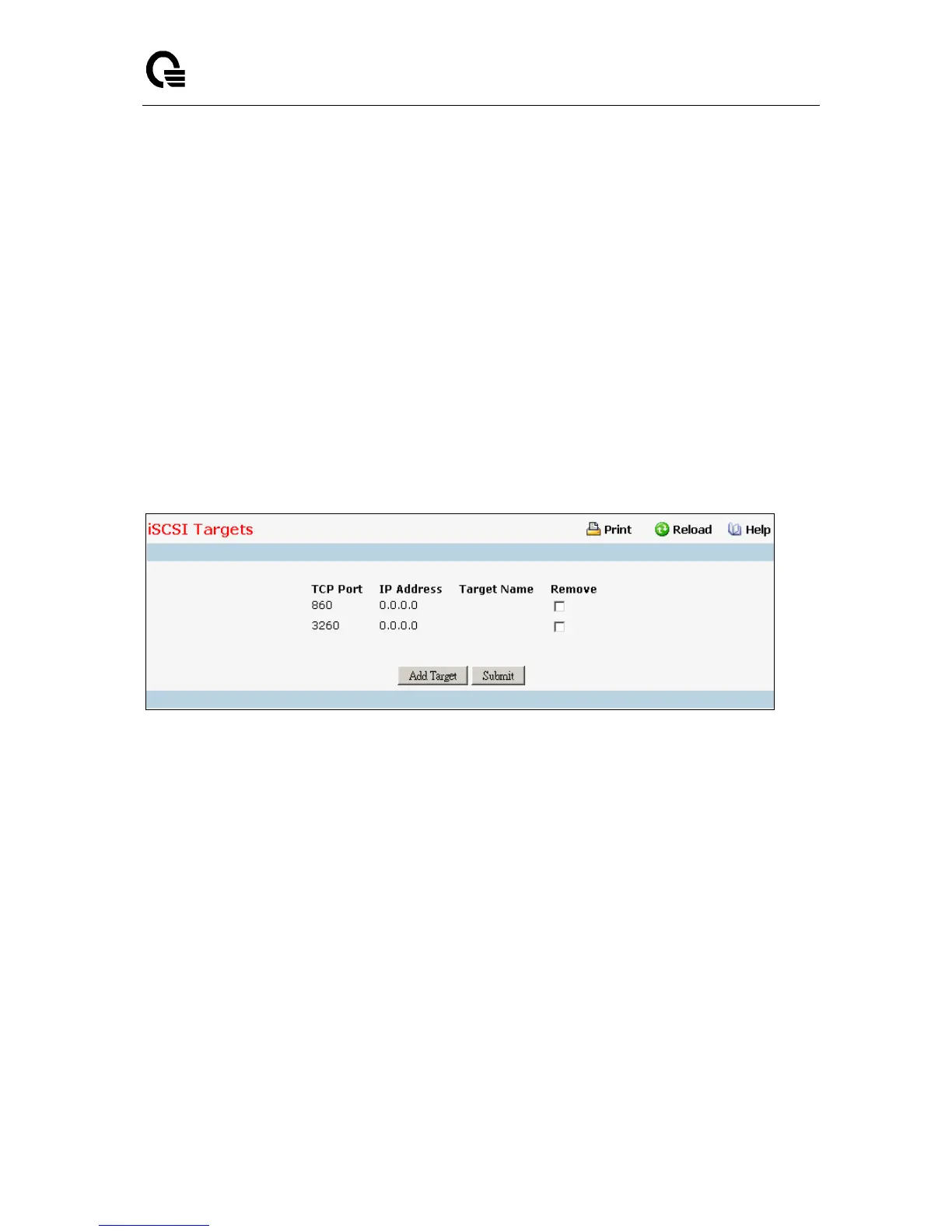

11.5.4.2 Configuring iSCSI Targets Page
Use the iSCSI Targets Table page to assign target ports/port IP address combinations for iSCSI
Optimization on the switch.
Non-Configurable Data
TCP Port - Shows the TCP port numbers for the targets monitoring iSCSI traffic. The well-known
iSCSI ports 3260 and 860 are configured as the default ports. The default ports can be removed. Up
to 16 TCP ports can be defined in the system
IP Address - Shows the IP address of the iSCSI target.
Target Name - Shows the name assigned to the Target.
Remove - Select the checkbox associated with a target and click the Submit button to remove a
target.
Command Buttons
Add Target - Click the Add Target button to add an new iSCSI target
Submit - Send the updated configuration to the switch.
