LB9 User’s Guide 1328/1523

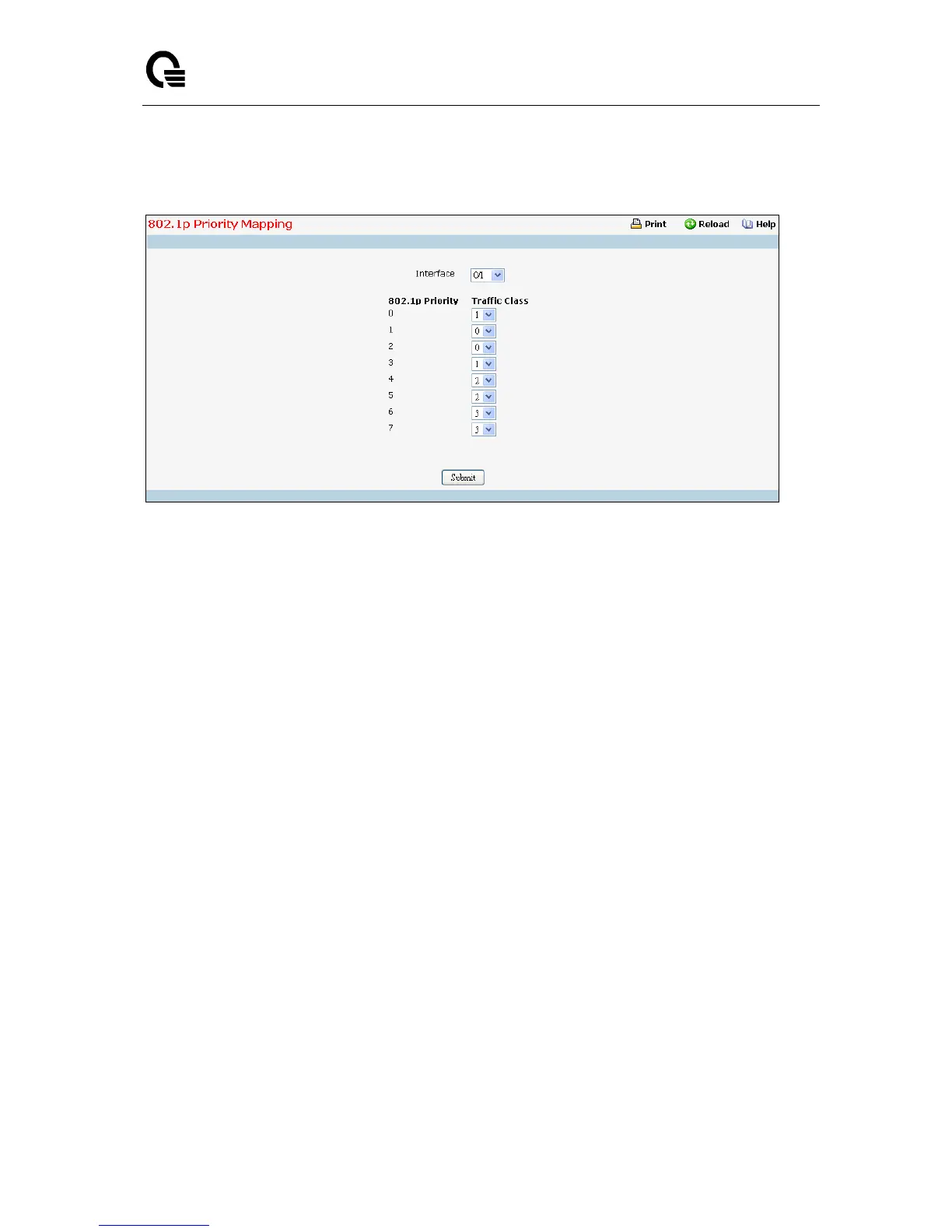

11.5.5.3 Defining 802.1p Priority Mapping Page
Selection Criteria
Interface - Select the physical interface for which you want to display or configure data. Select 'All' to
set the parameters for all ports to the same values.
Configurable Data
Traffic Class - Specify which internal traffic class to map the corresponding 802.1p priority.
Non-Configurable Data
802.1p Priority - Displays the 802.1p priority to be mapped.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
