UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1333/1523

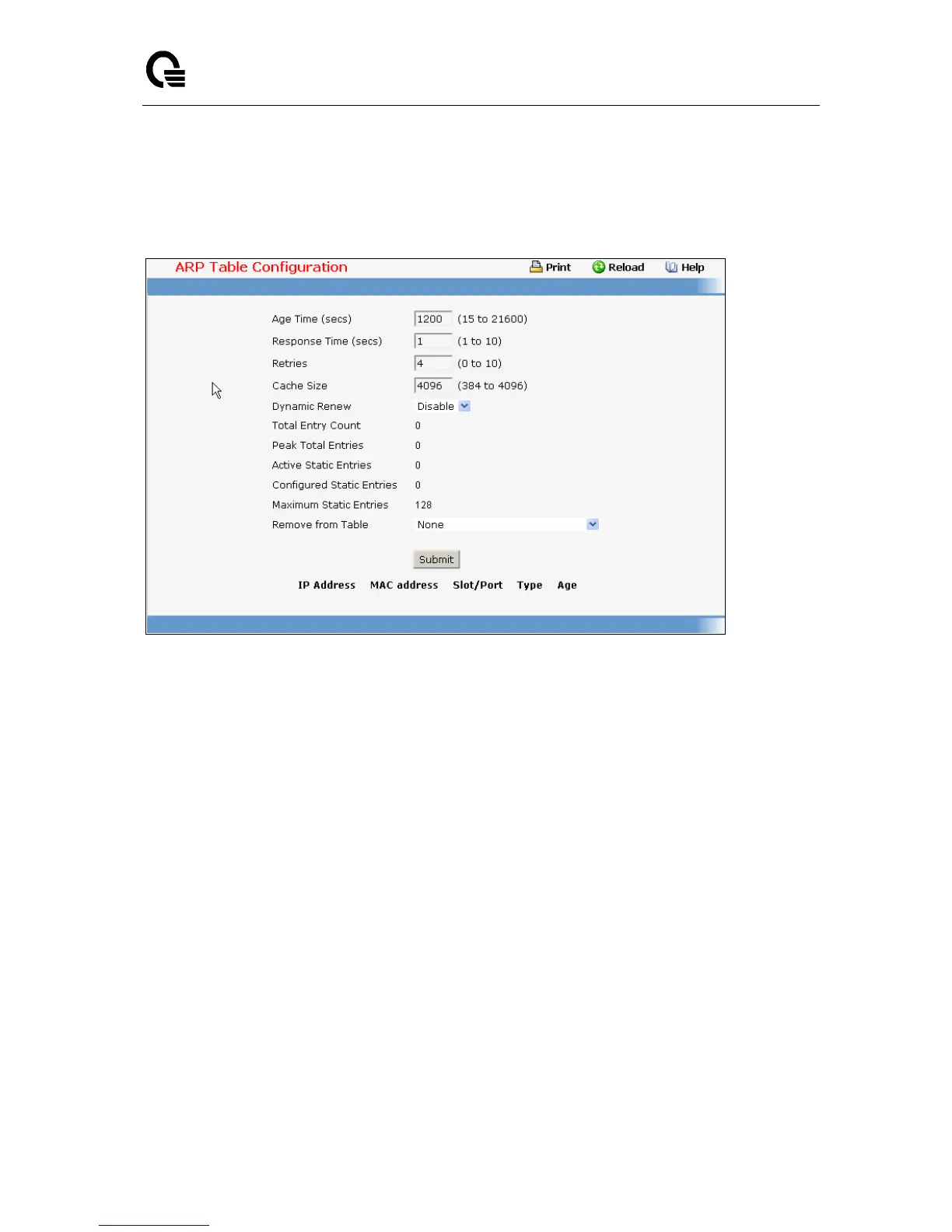

11.6.1.2 Configuring ARP Table
You can use this panel to change the configuration parameters for the Address Resolution Protocol
Table. You can also use this screen to display the contents of the table.
Configurable Data
Age Time (secs)- Enter the value you want the switch to use for the ARP entry ageout time. You
must enter a valid integer, which represents the number of seconds it will take for an ARP entry to
age out. The range for this field is 15 to 21600 seconds. The default value for Age Time is 1200
seconds.
Response Time (secs) - Enter the value you want the switch to use for the ARP response timeout.
You must enter a valid integer, which represents the number of seconds the switch will wait for a
response to an ARP request. The range for this field is 1 to 10 seconds. The default value for
Response Time is 1 second.
Retries - Enter an integer which specifies the maximum number of times an ARP request will be
retried. The range for this field is 0 to 10. The default value for Retries is 4.
Cache Size - Enter an integer which specifies the maximum number of entries for the ARP cache.
The range for this field is 384 to 4096. The default value for Cache Size is 4096.
Dynamic Renew - This controls whether the ARP component automatically attempts to renew ARP
Entries of type Dynamic when they age out. The default setting is Enable.
Remove from Table - Allows the user to remove certain entries from the ARP Table. The choices
listed specify the type of ARP Entry to be deleted:
 All Dynamic Entries
 All Dynamic and Gateway Entries
 Specific Dynamic/Gateway Entry - Selecting this allows the user to specify the required IP
Address.
