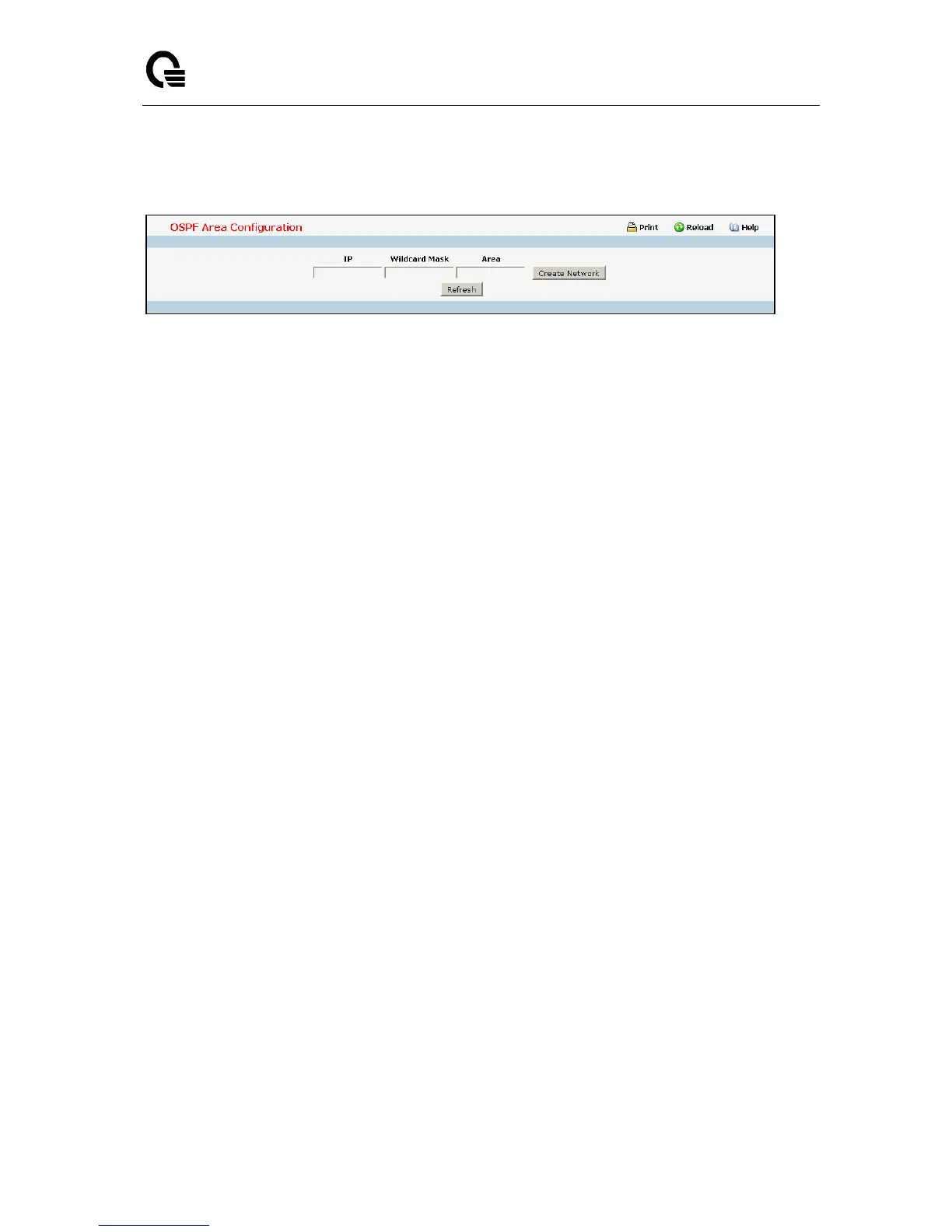

11.6.3.2 Network Area Configuring
Configurable Data
IP - Apply this IP for the Network Area setting.
Wildcard Mask - Use Wildcard Mask to filter IP range.
Area - Configure the OSPF Router Area for the Network Area setting.
Non-Configurable Data
IP – Show IP for the Network Area setting.
Wildcard Mask – Show Wildcard Mask of the Network Area setting.
Area – Show area for the Network Area setting.
Command Buttons
Create Network - Create an OSPF Area for the IP network.
Delete - Removes the specified IP network from the router configuration.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
