LB9 User’s Guide 1356/1523
11.6.3.8 Viewing Neighbor Table Information

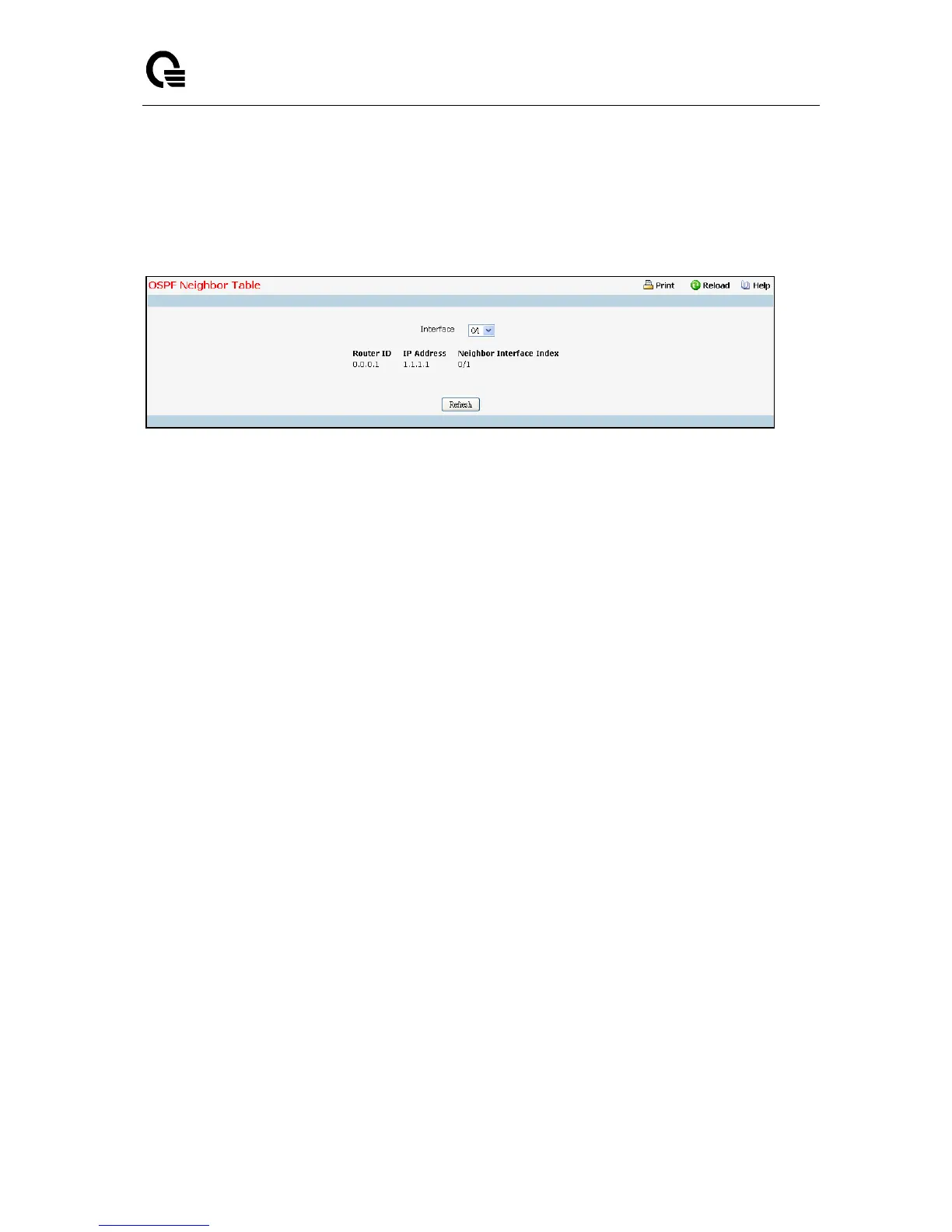

This panel displays the OSPF neighbor table list. When a particular neighbor ID is specified, detailed
information about a neighbor is given. The information below will only be displayed if OSPF is enabled.
Selection Criteria
Interface - Selects the interface for which data is to be displayed or configured. Slot 0 is the base
unit.
Non-Configurable Data
Router ID - A 32 bit integer in dotted decimal format representing the neighbor interface.
IP Address - The IP Address of the neighbor on the selected Interface.
Neighbor Interface Index - A Slot/Port identifying the neighbor interface index.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
